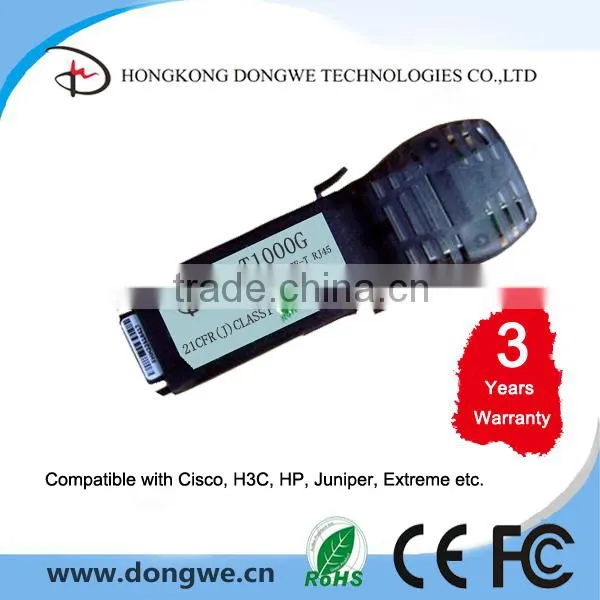

1000BASE-T GBIC Transceiver, Copper GBIC, 1.25G, RJ45, Optic Module/Transceiver
Features
Hot-pluggable GBIC footprint
Extended case temperature range (0°C to +70°C )
Low power dissipation (1.05 W typical)
Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
1000 BASE-T operation in host systems with SERDES interface
Applications
1.25 Gigabit Ethernet over Cat 5 cable
Product description
DW-T1000G 1000BASE-T Copper GBIC transceivers are based on the GBIC Multi Source Agreement(MSA).
They are compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std 802.32. The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features. The DW-T1000G uses the GBIC’s RX_LOS pin for link indication, and 1000BASE-X auto-negotiation should be disabled on the host system.
The DW-T1000G is compatible with 1000BASE-X auto-negotiation, but does not have a link indication feature(RX_LOS is internally grounded).
| Part Number | Product Description |
| DW-T1000G | Copper GBIC, 1.25G, RJ45, 0°C~+70°C |
| DW-D1285-05CG | GBIC, 1.25G, 850nm, 550m, 0°C~+70°C |
| DW-D1231-20CG | GBIC, 1.25G, 850nm, 550m, 0°C~+70°C |
| DW-D1231-40CG | GBIC, 1.25G, 850nm, 550m, 0°C~+70°C |
| DW-D1255-80CG | GBIC, 1.25G, 850nm, 550m, 0°C~+70°C |
| BIDI GBIC | |
| DW-S1235-03CG | BIDI GBIC, 1.25G, 1310/1550nm, 3km, 0°C~+70°C |
| DW-S1253-03CG | BIDI GBIC, 1.25G, 1550/1310nm, 3km, 0°C~+70°C |
| DW-S1234-20CG | BIDI GBIC, 1.25G, 1310/1490nm, 20km, 0°C~+70°C |
| DW-S1243-20CG | BIDI GBIC, 1.25G, 1490/1310nm, 20km, 0°C~+70°C |
| DW-S1235-20CG | BIDI GBIC, 1.25G, 1310/1550nm, 20km, 0°C~+70°C |
| DW-S1253-20CG | BIDI GBIC, 1.25G, 1550/1310nm, 20km, 0°C~+70°C |
| DW-S1234-40CG | BIDI GBIC, 1.25G, 1310/1490nm, 40km, 0°C~+70°C |
| DW-S1243-40CG | BIDI GBIC, 1.25G, 1490/1310nm, 40km, 0°C~+70°C |
| DW-S1235-40CG | BIDI GBIC, 1.25G, 1310/1550nm, 40km, 0°C~+70°C |
| DW-S1253-40CG | BIDI GBIC, 1.25G, 1550/1310nm, 40km, 0°C~+70°C |
| CWDM GBIC | |
|
DW-D12CXX-40CG (XX=27~61) |
CWDM GBIC, 1.25G, 1270~1610nm, 40km, 0°C~+70°C |
|
DW-D12CXX-80CG (XX=27~61) |
CWDM GBIC, 1.25G, 1270~1610nm, 80km, 0°C~+70°C |
|
GBI
|
SFP |
SFP+ |
|
XFP |
X2 |
Xenpak |
|
QSFP |
SFP GPON ONU/OLT |
10G Converter
|
|
CSFP |
Direct Attach Cable |
Production Show
1.Competitive price
2. 3 years warranty
3. Reply your inquiry within 2 hours
4. Have large quantity modules in stock, delivery fast
5. Label can be customized, also ODM and OEM service offered
6. 100% new material and good quality
7. Can be compatible with a lot of brands like Cisco, HP, H3C, Extreme, Juniper etc.
8. Capacity: 10,000pcs/day
Address: B2602, 6/F,Launch Industrial Park, Wuhe Road,
Batian,longgang, Shenzhen, China
Tel:86-755-85292799/818 Fax:86-755-86151614
Mobile: 86-18923418970
Skype:dongwe049
Web:
We sincerely invite all interested buyers to visit our company and contact us directly for further information, we will reply you as soon as possible!!!
