Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > CWDM 1260-1620nm CBS BOX or Rackmount + Upgrade Port Best Price!a

CWDM 1260-1620nm CBS BOX or Rackmount + Upgrade Port Best Price!a

Name: CWDM 1260-1620nm CBS BOX or Rackmount + Upgrade Port Best Price!a
Brand: DONGWE
SKU: 132176485

CWDM 1260-1620nm CBS BOX or Rackmount + Upgrade Port Best Price!a thumbnail-1

CWDM 1260-1620nm CBS BOX or Rackmount + Upgrade Port Best Price!a photo-1

US$ 5 - 15 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

DONGWE

Model Number:

Passive CWDM

Contact Supplier Request Quote Chat Now

Shenzhen Dongwe Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name DONGWE

Model Number Passive CWDM

CWDM 1260-1620nm CBS BOX or Rackmount + Upgrade port best price!

Product Description

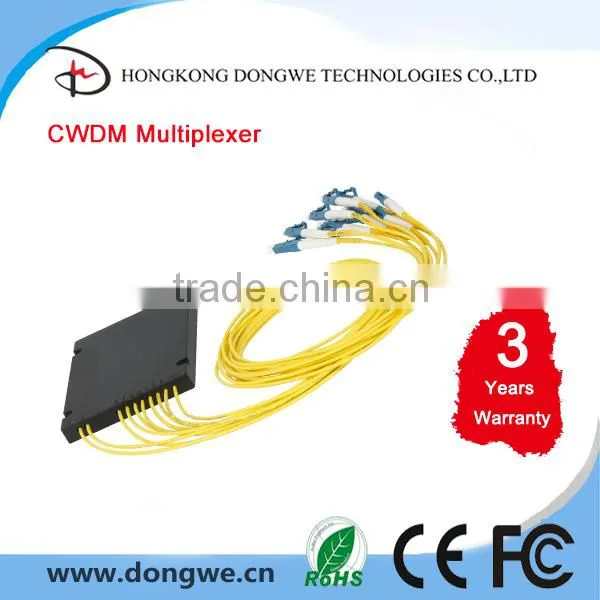

Coarse Wave Division Multiplexing (CWDM) modules combine or split up to 18 wavelengths into a single fiber.
CWDM technology uses ITU standard 20nm spacing between the wavelengths, from 1270nm to 1610nm. OurCWDM module has 4 to 18 channels. The central wavelength of each channel is specified to one of the ITU-T grid wavelengths. The CWDM module features wide channel bandwidth (13nm). Its isolation is greater than 30dB for adjacent channels, and greater than 40dB for non-adjacent channels. The module also has high thermal stability to ensure reliable performance under different environment.

Key Features
Low Insertion Loss
High Isolation
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1620nm
Wide Operating Temperature: From -40 to 85°C

Applications
CWDM System
PON Networks
CATV Links

Compliance
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS

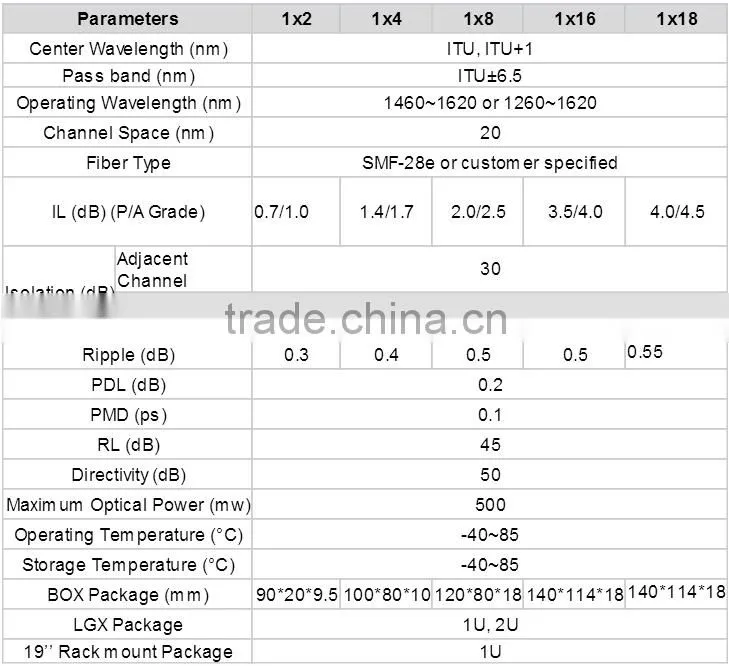

CWDM Specification

1. Specified without connectors.Notes:

2. Add an additional 0.2dB loss per connector.

Ordering Information

Packaging & Shipping

Payment

Why is DONGWE

1. Competitive price

2. 3 years warranty

3. Reply your inquiry within 2 hours

4. Have large quantity modules in stock, delivery fast

5. Label can be customized, also ODM and OEM service offered

6. 100% new material and good quality

7. Can be compatible with a lot of brands like Cisco, HP, H3C, Extreme, Juniper etc.

8. Capacity: 10,000pcs/day
