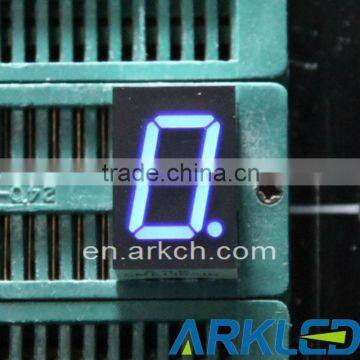

12.7 Mm, Blue Single Digits, 7 Segment LED Digital Display

FOB Price

US$ 0.09 - 0.3 / Piece

1000 Pieces(Min. Order)

Port Shanghai Ningbo

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	ARK LED
Model Number	SM610501B	Usage	Other, Numeric Display
Tube Chip Color	Blue	Display Function	Other, Numeric
Pixels	Other, 12.7 mm	Screen Dimension	12.7x19.0x8.0 mm

Product Description

Specifications:

Digit height: 0.50-inch

Dimensions: 12.7 x 19.0 x 8.0 mm

Digit quantity: One piece

Available Emitting color: Blue

Surface color: black/gray (white epoxy)

Epoxy colors: White

Polarity: common anode/common cathode

Operating temperature range: -20+60 degree Celsius

Features:

High luminous intensity output

Low voltage and current operating

Ultra-low power consumption

Solid-state LED chip based

Long life-span

Easy mounting on printed circuit board and sockets

IC compatible

Certificates: RoHS and SGS

Applications:

Audio equipment or instrument panels

General use for digital indicators

Multimedia product

Bank exchange rate display

LED clock display

Display for gas station and other various display areas of equipment/machine

***By the reason of Photography, there may be luminous color deviation of the products between the entities and the pictures

Absolute Maximum Ratings AT Ta=25°C
Parameter	Symbol	Blue	Unit
Power Dissipation Per Segment	PAD	70	mw
Reverse Voltage Per Segment	VR	5	V
Continunous Forward Current Per Segment	IAF	20	mA
Peak Forward Current Per Segment(Duty-0.1,1KHz)	IPF	100	mA
Operating Temperature Range	TOPr	-20°C to 80°C
Storage Temperature Range	Tstg	-30°C to 85°C
Lead Soldering Temperature 260°C at 1.6mm From Body for 3 second

Electrical/Optical Characteristics AT Ta=25°C
Parameter	Symbol	Test Condition	Color	MIN	TYP	MAX	UNIT
Forward Voltage Per Segment	VF	IF=20mA	Blue	3	3.2	3.5	V
Reverse Current Per Segment	IR	VR=5V	Blue			50	μA
Peak Emission Wavelength	λp	IF=20mA	Blue	460	462.5	465	nm
Luminous Intensity Per Segment	IV	IF=20mA	Blue	70	80	100	mcd
