NEW product 22mm anti-vandal push button switches
Quick metal button parameters
Type |
S22-F |
S22-F-R |
S22-F-D |
||||
Illuminated Options |
Non-Illuminated |
Ring |
Dot |
||||
Max. Panel Thickness: |
0.394" (10.0mm) |
||||||
Terminal |
Pin(2.8x0.5) |
||||||
Max. Switch Rating |
5A/ 250VAC |
||||||
Contact Resistance |
≤50mΩ |
||||||
Insulation Resistance |
≥1000mΩ |
||||||
Dielectric Strengh |
2000VAC |
||||||
Operation Temp. |
-20°C ~ +55°C |
||||||
Mechanical Life |
1,000,000cycles |
||||||
Electrical Life |
>50,000cycles |
||||||
Contact Material |
Silver Alloy |
||||||
Torque |
5 ~ 14Nm |
||||||
Operation Pressure |
3 ~ 8N |
||||||
Protection |
IP65 |
||||||
Material |
Actuator |
Stainless Steel/ Anodized Aluminum |
|||||
Body |
Stainless Steel/ Anodized Aluminum |
||||||
Base |
PA |
||||||
Color |
Type |
LED (ratings @ 20mA) |
|||||
Color |
R-Red |
Y- Yellow |
O- Orange |
G- Green |
B- Blue |
W- White |
|
Luminous Intensity (mcd) |
160 |
200 |
150 |
520 |
220 |
2000 |
|
Forward Volatge |
1.8~2.6 |
2.8~3.6 |
|||||
Illumination Voltage |
no suffix No resistor fitted. An appropriate resistor must be series connected by the user. Voltages as above. |
||||||
6V/ 12V/ 24V/ 36V/ 110V/ 230V | |||||||
Life |
Approx. 40, 000hours |
||||||

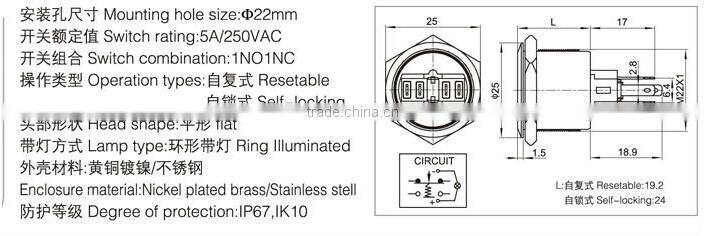

Mechanical Dimensions

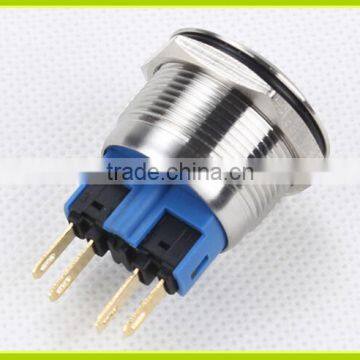

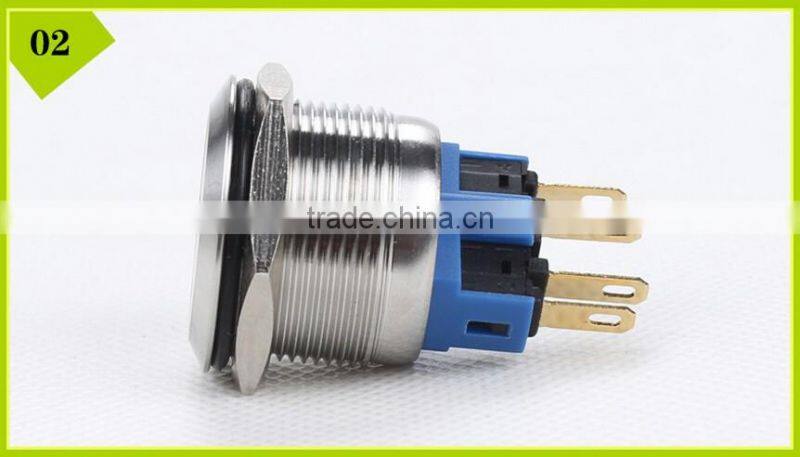

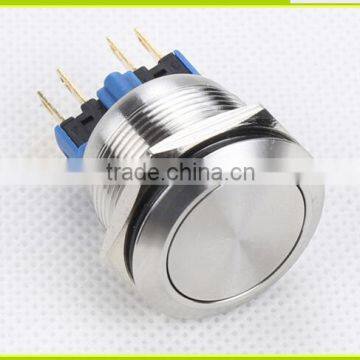

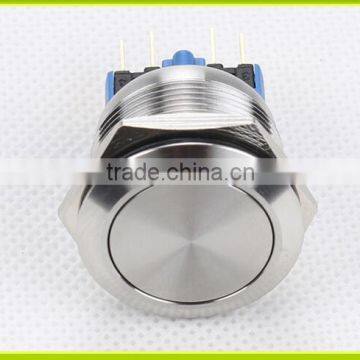

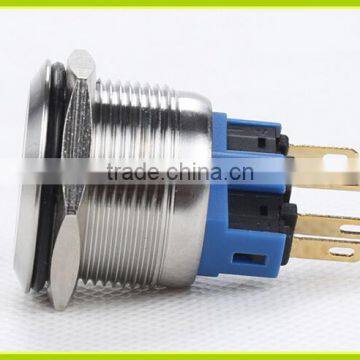

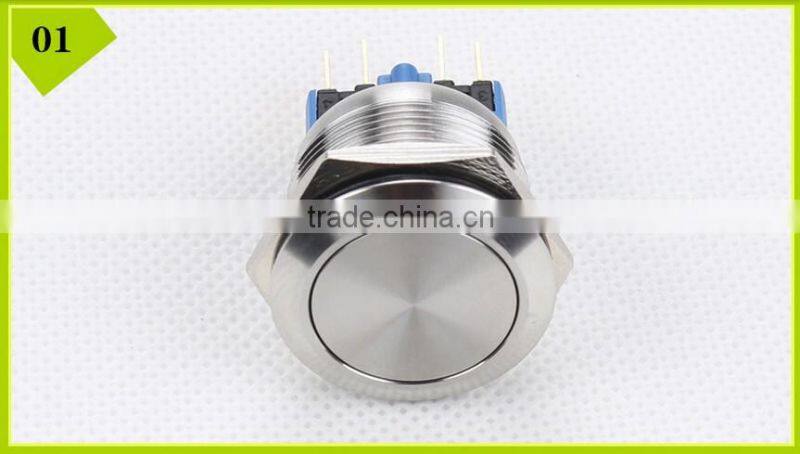

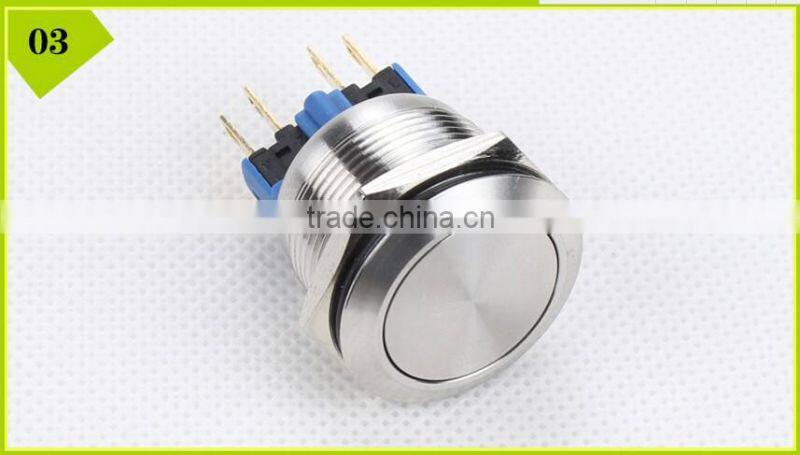

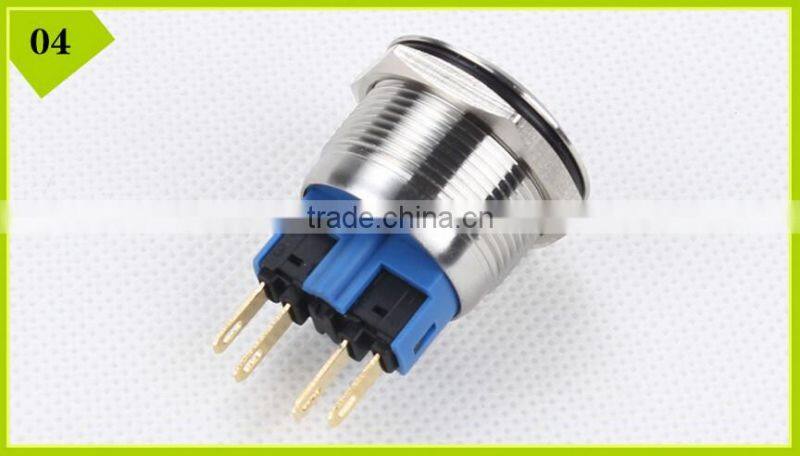

Detailed Images

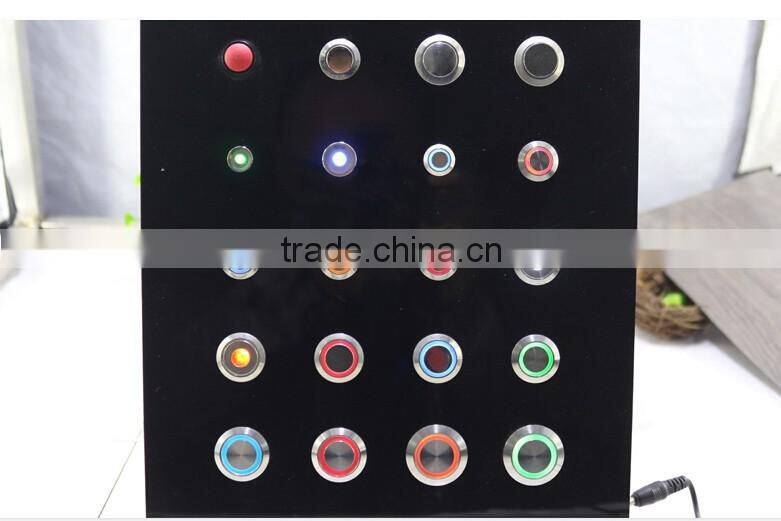

Install the display
Application
EMS: need 10-15 working days to reach your side
UPS: special express for North America,need 3-5 working days
DHL: normally 3-5 working days could reach your side
FEDEX: normally 3-10 working days could reach US and European
Cixi sinco machinery factory is a professional engaged in non-standard custom lathe parts, fasteners, products processing, plastic non-standard parts processing customized enterprise, the company was founded in 1995. In 20 years the company has been uphold: quality first, service first, focus on the concept of professional. After 20 years development, it is the most professional fastener products in zhejiang processing customization enterprise.
- Company name: Cixi Sinco Machinery Factory
- Company address: No. 202-206, Dafa Rd., Hushan, Cixi, Ningbo, Zhejiang, China (Mainland)
- Telephone: 0086-574-63023977
