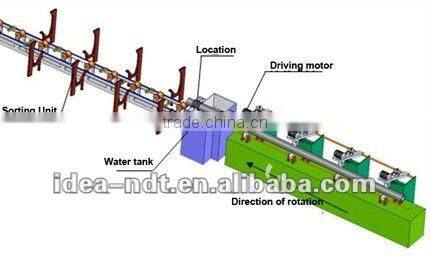

Help CenterAutomated Ultrasonic Testing Inspection System for Big Pipes
Related Products
-
8-16 Channels Ultrasonic Testing for Spiral Welding PipesUS$ 1,000 - 200,000MOQ: 1 Set -
Automated 8-16 Channels Ultrasonic Testing Machine for Gas Bottles and CylindersUS$ 1,000 - 200,000MOQ: 1 Set
-
Automated 8-16 Channels Ultrasonic Testing Machine for Steel PlatesUS$ 1,000 - 200,000MOQ: 1 Set
-
Automated Ultrasonic Flaw Testing for RailwaysUS$ 1,000 - 200,000MOQ: 1 Set
-
Automated Ultrasonic Testing Machine for Gas BottlesUS$ 1,000 - 200,000MOQ: 1 Set
Specifications
1.ultrasonic testing2.Ultrasonic Inspection
3.ultrasonic system
4.128 channels testing is available
5.A,B,C scan
Automated Ultrasonic Testing Inspection System
1.ultrasonic testing
2.Ultrasonic Inspection
3.ultrasonic system
4.128 channels testing available
5.A,B,C scan
Applications
The instruments can be widely used for titanium tubes, zirconium tubes, seamless steel tubes, welded gas and oil pipelines, nonferrous metals, ferrous metals and some other non-metallic pipes, bars, plates ,and the rail automatic (or semi-automatic) non-destructive ultrasonic testing
Technical Parameter
Gain | 0-100dB,step 0.1dB
|
Detection channels | 1,2,4,8,16, 32
|
Operation mode | Single probe transmitter and receiver, dual probe transmitter and receiver |
Scan mode | A,B,C type scan
|
Surplus Sensitivity | ≥65dB
|
Resolution | ≥36dB
|
Dynamic range | ≥42dB
|
Scan range(steel longitudinal wave) | 0~6000mm |
Frequency range | 0.5~20MHz
|
Repetition frequency | 100Hz~10KHz adjustable
|
Vertical linearity | ≤3%
|
Horizontal linearity | ≤1%
|
Gate setting | Each channel has three gates, alarm gate, tracking gate, self locking gate |
Delayed (marking) alarm |
split in two,delayed time :0.5~10S,step: 0.1S
|
Testing conditions and flaw wave form | Quantity unrestricted,invocation,wave replay,wave communicate,wave print |
Test report | Automatic generate(WORD ,EXECL)
|
Parameter storage | Detection state parameters,echo pattern,DAC curve and remark information etc. |
Clock Type | Inner, outer CLOCK
|
Encoder | 50-1024 (Optional)
|
Detector mode | positive, negative, bi-directional, radio frequency (RF) |
Peak memory | Can choose echo peak memory display,background peak wave can be in a different color represents. |
SA,PA,RA,% | Real-time display |
