Rotary Probe for high speed ultrasonic tube testing directly in the production line
1.Ultrasonic flaw detector

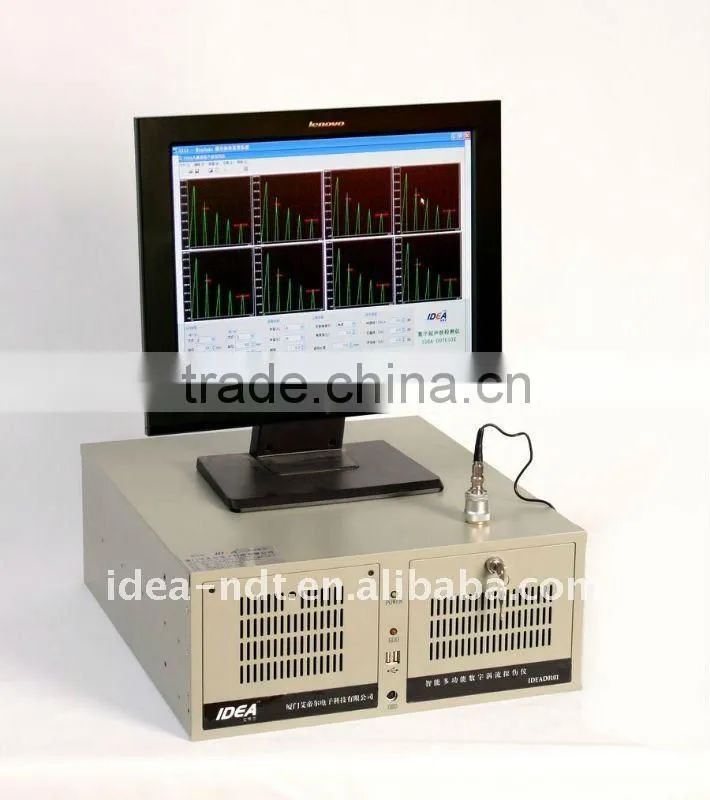

2.Eight-channel ultrasonic flaw detector device
3.Real-time display
4.Ultrasonic testing/ UT system

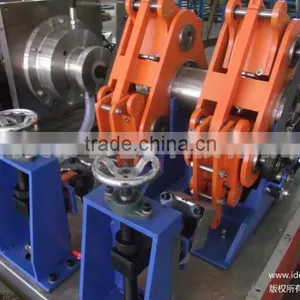

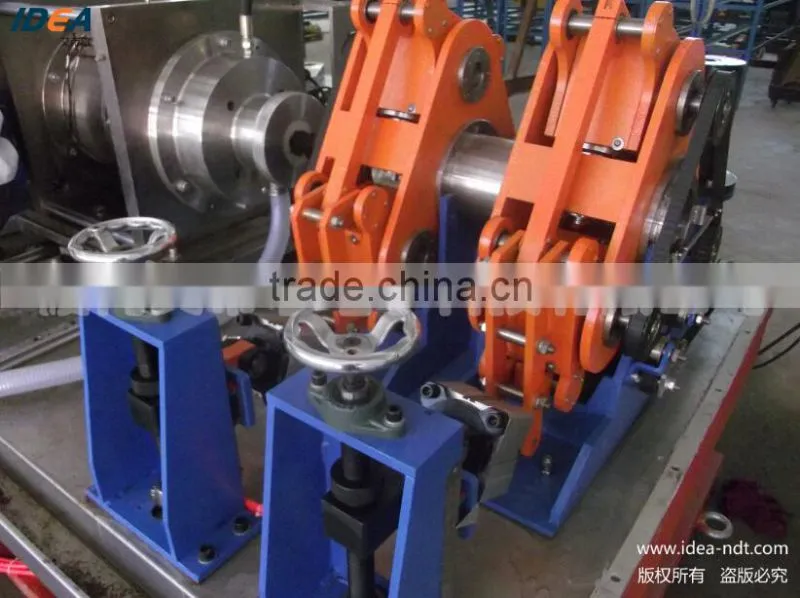

5. rotary ultrasonic flaw detector probe
Model |
IDEA-UTD0104 |
Product |
High-speed multi-channel ultrasonic flaw detector |
Type |
Ultrasonic |
Description |
Eight-channel ultrasonic flaw detector is a new generation digital controlled A-pulse ultrasonic multi-channel flaw detector. The instrument is widely applied to the automatic or semi-automatic non-destructive ultrasonic testing of titanium tube, zirconium tubes, and book-walled pipe, seamless steel tubes, welded gas and oil pipelines, nonferrous metals, ferrous metals and some non-metallic pipes, rods, plates and railway rails and other shaped workpieces. |
Specification |
1. Strong anti-jamming capability, capable of continuous operation for long time. 2. One instrument for maximum of 8 channels, on-line expansion of the channel amounts for simultaneous operating. 3. The performance and features of each channel are consistent with measurement requirements. 4. The high repetition rate, the system frequency is 20KHz, and the maximum repetition rate for each channel can be programmed. 5. With IPC interface, it can achieve the testing data display, storage, index, transmission and other function. 6. Scanning depth and the delay of each channel can be separately set up and latched. 7. Three alarm doors for each channel, and can be set to track the interface wave. 8. Large screen, high-luminance, nice focus and clear display. 9. Alarm pulse output can be delayed for more accurate marking 10. Eight sets combination of instruments can be latched, capable for quick parameters setting for various workpieces testing. |
Parameters |
Instrument Type: Eight-channel ultrasonic flaw detector device The maximum repetition frequency: according to the agreement single channel ones up to 20KHz, usually 10KHz Probe modes: single probe transmitter and receiver, or pairs of probes, respectively transmitter and receiver Amplifiers Band: 0.5MHz-15MHz Gain: 80dB, step 0.1dB Detection Sensitivity: greater than 50dB Vertical linearity error: no more than 5% Alarm: Each channel can be set up to A, B, C three door alarms Fat police: machines, audio alarm (three alarm door there are three different voices), electric pulse output
|
Application |
It can be widely used for titanium tubes, zirconium tubes, and book-walled pipe, seamless steel tubes, welded gas and oil pipelines, nonferrous metals, ferrous metals and some non-metallic pipes, rods, plates and other profiles, and the rail automatic (or semi-automatic) non-destructive ultrasonic testing
|
Main Technical Data
Gain |
0-100dB,step 0.1dB |
Detection channels |
1,2,4,8,16 |
Operation mode |
Single probe transmitter and receiver, dual probe transmitter and receiver |
Scan mode |
A,B,C type scan |
Surplus Sensitivity |
more than 65dB |
Resolution |
≥36dB |
Dynamic range |
≥42dB |
Scan range(steel longitudinal wave) |
0~6000mm |
Frequency range |
0.5~20MHz |
Repetition frequency |
100Hz~10KHz adjustable |
Vertical linearity |
≤3% |
Horizontal linearity |
≤1% |
Strobe setting |
Each channel has three strobes, alarm strobe, tracking strobe, self locking strobe |
Marking delay |
split in two,delay time is 0.5~10S,step 0.1S |
testing conditions and flaw wave form |
Quantity unrestricted,invocation,wave replay,wave communicate,wave print |
Test report |
Autogenerate(WORD ,EXECL) |
Parameter storage |
Detection state parameters,echo pattern,DAC curve and remark information etc. |
Clock Type |
Inner, outer CLOCK |
Encoder |
50-1024 (Optional) |
Detector mode |
positive, negative, bi-directional, radio frequency (RF) |
Peak memory |
Can choose echo peak memory display,background peak wave can be in a different color represents. |
SA,PA,RA,% |
Real-time display |
