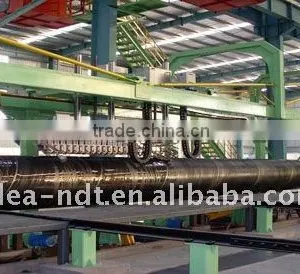

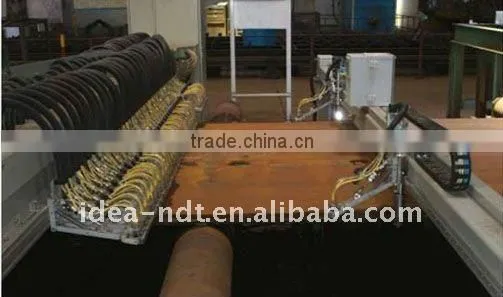

Ultrasonic Non-destructive Testing System for Steel Tube Production

Name: Ultrasonic Non-destructive Testing System for Steel Tube Production
Brand: IDEA
SKU: 132162501

US$ 1 - 200,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

IDEA

Model Number:

IDEA-UT system

Xiamen Idea Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name IDEA

Model Number IDEA-UT system

Power Electronic

Usage Other, Auto Testing Machine, to detect the flaws of pipe, bar or bottle

Specifications

1.Ultrasonic Non-destructive Testing System for Steel Tube Production
2.NDT Ultrasonic testing
3.Scan mode: A,B,C type

Applications

Metal tube , metal bar , sheet material and linear materials

Standard

GB ASTM API EN JISG JB ISO MH JG YB

Technical Data

Gain	0-100dB,step 0.1dB
Detection channels	1,2,4,8,16, 32
Operation mode	Single probe transmitter and receiver, dual probe transmitter and receiver
Scan mode	A,B,C type scan
Surplus Sensitivity	≥65dB
Resolution	≥36dB
Dynamic range	≥42dB
Scan range(steel longitudinal wave)	0~6000mm
Frequency range	0.5~20MHz
Repetition frequency	100Hz~10KHz adjustable
Vertical linearity	≤3%
Horizontal linearity	≤1%
Gate setting	Each channel has three gates, alarm gate, tracking gate, self locking gate
Delayed (marking) alarm	split in two,delayed time :0.5~10S,step: 0.1S
Testing conditions and flaw wave form	Quantity unrestricted,invocation,wave replay,wave communicate,wave print
Test report	Automatic generate(WORD ,EXECL)
Parameter storage	Detection state parameters,echo pattern,DAC curve and remark information etc.
Clock Type	Inner, outer CLOCK
Encoder	50-1024 (Optional)
Detector mode	positive, negative, bi-directional, radio frequency (RF)
Peak memory	Can choose echo peak memory display,background peak wave can be in a different color represents.
SA,PA,RA,%	Real-time display
