Home > Electrical & Electronics > Connector & Terminals > Terminal Blocks > PCB Screw Terminal Block 2/3pole 5.0/5.08
PCB Screw Terminal Block 2/3pole 5.0/5.08
US$ 0.049 - 1
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JFF
Model Number:
JFF500H-5.0mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo /Shanghai/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PCB Screw Terminal Block 2/3poleUS$ 0.049 - 1MOQ: 1000 Pieces -
PCB Screw Terminal Block 3.81mmUS$ 0.049 - 1MOQ: 1000 Pieces
-
2/3pole PCB Screw Terminal BlockUS$ 0.049 - 1MOQ: 1000 Pieces
-
PCB Screw Terminal Block 3.81mmUS$ 0.049 - 1MOQ: 1000 Pieces
-
PCB Screw Terminal Block 2/3poleUS$ 0.049 - 1MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
JFF
Model Number
JFF500H-5.0mm
Product Description
| Rated voltage | 300V |
250V |
| Rated current | 20A |
24A |
| Wire range | 28-12AWG |
2.5mm2
|
| Withstanding voltage | AC2000V/1Min |
|
| Mechanical | ||
| Torque | 0.4Nm(3.5Lb-In.) |
|
| Ambient temperature | -40°C~+105°C |
|
| Strip length | 7mm |
|
| Dimensions | ||
| Pitch | 5.0mm(.197") 5.08mm(.200") |
|
| Poles |
2P,3P-24P
|
|
| Material | ||
| Housing | PA66,UL94V-0 |
|
| Screws | M2.5,steel,Cr3+ Zn plated |
|
| Pin header | Brass,Tin plated |
|
| Cage | Brass,Ni plated |
|

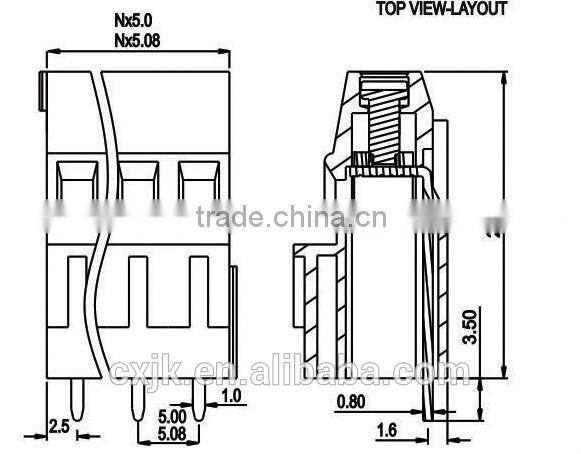

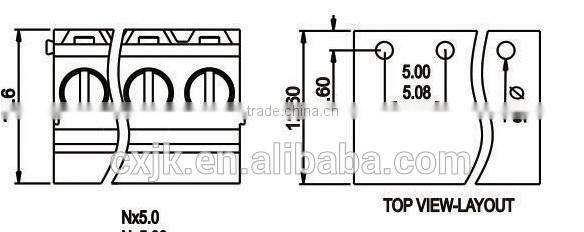

Drawing
