PCB Screw Terminal Block 2/3pole
US$ 0.049 - 1
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JFF
Model Number:
JFF300V-5.0mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo /Shanghai/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2/3pole 5.0mm/5.08 PCB Screw Terminal BlockUS$ 0.049 - 1MOQ: 1000 Pieces -
PCB Screw Terminal Block 5.0mmUS$ 0.049 - 1MOQ: 1000 Pieces
-
PCB Screw Terminal Block 3.81mmUS$ 0.049 - 1MOQ: 1000 Pieces
-
PCB Screw Terminal Block 2/3poleUS$ 0.049 - 1MOQ: 1000 Pieces
-
PCB Screw Terminal Block 5.0mmUS$ 0.049 - 1MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
JFF
Model Number
JFF300V-5.0mm
Product Description
Screw terminal block connector
| Rated voltage | 300V | 250V |
| Rated current | 10A | 24A |
| Wire range | 22-14AWG | 2.5mm2 |
| Withstanding voltage | AC2000V/1Min | |
| Mechanical | ||
| Torque | 0.5Nm(4.4Lb-In.) | |
| Ambient temperature | -30°C~+120°C | |
| Strip length | 5-6mm | |
| Dimensions | ||
| Pitch | 5.0mm(.197") | |
| Poles | 2P,3P-24P | |
| Material | ||
| Housing | PBT,UL94V-0 | |
| Screws | M3,steel,Cr3+ Zn plated | |
| Pin header | Brass,Tin plated | |
| Wire guard | Stainless steel | |

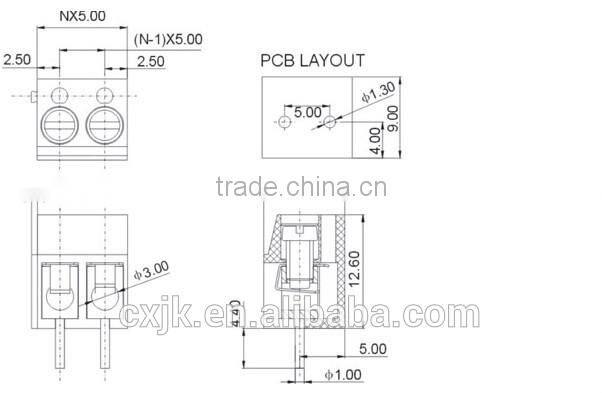

Drawing
Our Services
1.Material and color can be customized.
2.Holes can be added or modified as per your request.
3.For modification, there will be surcharge.
4.Drawings from website is just for reference
