Home > Electrical & Electronics > Connector & Terminals > Terminal Blocks > 2/3pole PCB Screw Terminal Block
2/3pole PCB Screw Terminal Block
US$ 0.049 - 1
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JFF
Model Number:
JFF128V-5.0mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo /Shanghai/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2/3pole PCB Screw Terminal BlockUS$ 0.049 - 1MOQ: 1000 Pieces -
PCB Screw Terminal Block 2/3poleUS$ 0.049 - 1MOQ: 1000 Pieces
-
PCB Screw Terminal Block 2/3pole 5.0/5.08US$ 0.049 - 1MOQ: 1000 Pieces
-
PCB Screw Terminal Block 2/3poleUS$ 0.049 - 1MOQ: 1000 Pieces
-
PCB Screw Terminal Block 3.81mmUS$ 0.049 - 1MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
JFF
Model Number
JFF128V-5.0mm
Product Description
Terminal block
| Rated voltage | 300V |
250V |
| Rated current | 15A |
18A |
| Wire range | 24-12AWG |
2.5mm2
|
| Withstanding voltage | AC2000V/1Min |
|
| Mechanical | ||
| Torque | 0.4Nm(3.5Lb-In.) |
|
| Ambient temperature | -40°C~+105°C |
|
| Strip length | 7mm |
|
| Dimensions | ||
| Pitch | 5.0mm(.197") |
|
| Poles |
2P,3P-24P
|
|
| Material | ||
| Housing | PA66,UL94V-0 |
|
| Screws | M2.5,steel,Cr3+ Zn plated |
|
| Pin header | Brass,Tin plated |
|
| Cage | Brass,Ni plated |
|

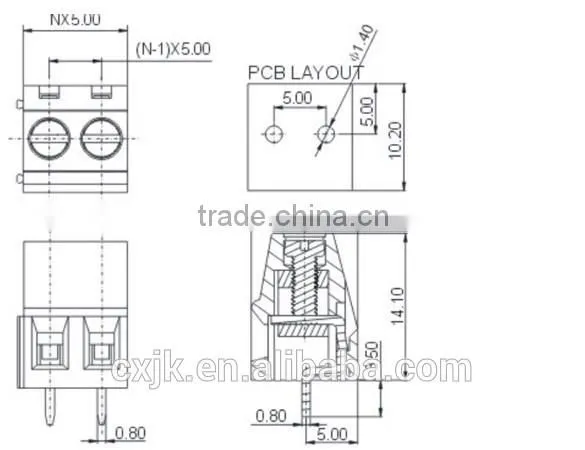

Drawing
Our Services
1.Material and color can be customized.
2.Holes can be added or modified as per your request.
3.For modification, there will be surcharge.
4.Drawings from website is just for reference
Certifications
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2002
Factory Size
1,000-3,000 square meters
Total Employees
101 - 200 People
