High Quality Electronic Endoscope Testing/industrial Pipe Detector

High Quality Electronic endoscope testing/industrial pipe detector

1.High Quality Electronic endoscope testing/industrial pipe detector
2.Large screen color screen to restore the true image
3.Industrial endoscope

NDT  pipe  Electronic Industrial Endoscope

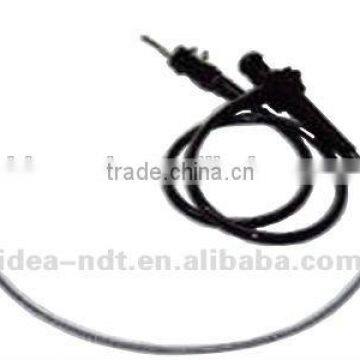

1, Lens & probe

 Image Resolution - 325 (H) X 250 (V)

 Probe diameter - 6.0MM (0.236 ")

 Shell - Steel / ABS plastic

 Light Source - 2 - 4 White LED

 Length - 2 meters (6'7 ")

 Vision range: Horizontal 75 °, vertical 75 °, diagonal 75 °

 Depth of Field: 1CM ~ 6CM

 Waterproof: only pairs of probes are required

 Operating Temperature: 0 ° C - 55 ° C

2, probe wireless transmission console:

 Size: 150 * 80 * 100MM

 Wireless transceiver frequency: 2.4GHZ, 4 channels (2414MHZ, 2432MHZ, 2450MHZ, 2468MHZ)

 Battery: Rechargeable lithium battery 7.4V

Brightness control: linear 0% TO 100%

 View direction: forward looking

 Probe Diameter / Length: 6.0 MM (0.217 ") / 2 M (6'7"), 3M (9'10 "), 10M (33 '), 20M (66')

 Probe material - soft metal pipe (metal single tube; an outer layer of ethylene polymer)

3, video imaging equipment:

  Size: 150 * 80 * 100MM

 Power: Rechargeable lithium battery 7.4V, AC Power Supply 100-240V 50-60HZ, power DC12V - 2.0A

 Screen: 7.0 TFT LCD QVGA

 PC Computer Transfer: USB 2.0

 Video output format: NTSC & PAL, AV-OUT

 Wireless Receiver Frequency: 2.4GHZ, 4 channels (2414MHZ, 2432MHZ, 2450MHZ, 2468MHZ)

 Compression format: COMPLIANT WITH MPEG4

 Still Image Storage Format: JPEG (1024 * 768)

 Frame Rate: ~ 30FPS

 Exposure: Automatic

White balance: Mixed

Video software system

Specifications of this NDT  pipe  Electronic Industrial Endoscope:
