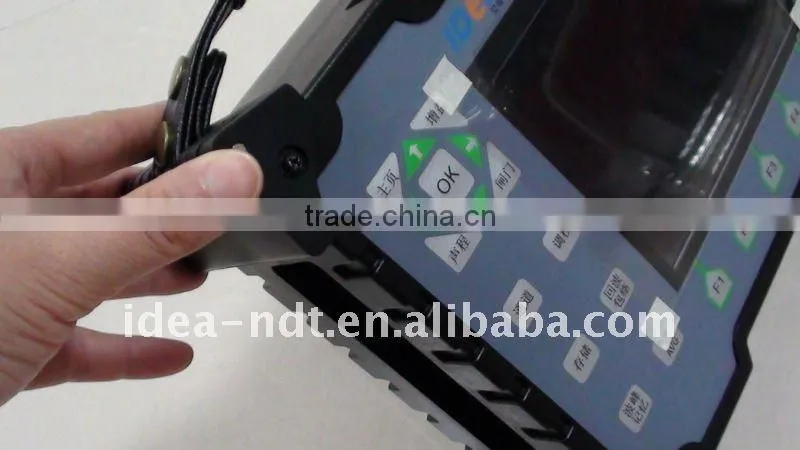

IDEA Portable Digital ET eddy current Measuring device

Model

 IDEA-3F

Product

Digital(conductivity&thickness) eddy current detector

Type

Eddy current

Description

IDEA-3F, the digital (conductivity, thickness measuring) eddy current testing instrument, as a member of IDEA series, with the function of flaw detecting as conventional eddy current testing instruments, is also applicable to the workpiece conductivity and thickness measurement with wide measuring range and high testing accuracy.  With English and Chinese operating versions, it’s easier and more intuitive and meets the language requirements of various countries.

Fool-style operation and no requirement of long-time training of the testing personnel.

Specification

1/The integration of eddy current flaw detecting, conductivity and thickness measuring.

Intelligent digital design, easy operation

2. Various testing schemes available according to user’s requirements.

3. Compact and exquisite design

4. Easy operation, real time on-screen instruction, fool-style operation

Parameter

Eddy current testing technical index:

1.Large screen, high-luminance 5.7″ color TFT-LCD, overcomes the shortcomings of the traditional monochrome screen display

2.Frequency range: 10 Hz~10 MHz, continuously adjustable

3.Gain: 0 dB~99 dB, with wide adjustable range

4.Phase rotation: 0~359°, flexible phase rotation

5.Testing speed: >100M/min, meets various testing requirements

6.Testing accuracy up to: 0.01mm,

7. Lift-off height: >3mm, no need for surface clearance.

8.Fast digital electronic balance

9.Phase/non-constant amplitude, box and fan-shape alarm modes to meet various testing requirements

10.Probe driver: 1-8. to meet the requirements of various probe structure and achieve multifunction in the real sense

11.Independent X and Y gain ratio

12.Digital Filtering: High-pass frequency (0Hz ~ 2000Hz), low-pass frequency (0Hz ~ 2000Hz)

13.USB 2.0 (Host) connection for output

14.Eddy current testing signals playback, analysis, storage, printing

15.Operating system: Linux 2.6

16.Operating Language: Chinese, English

17.Easy to operate, real time on-screen instruction

18.On-line hot-key graphics, text help.

19.Built-in rechargeable lithium battery 8000MAH

20.Rectangular coordinate system and polar coordinates

21.Center coordinates: X/Y, adjustable.

22.Automatically display the date, time and battery capacity

23.Operating temperature:  -20° ~ 50°

24.Instrument size: 210 MM x 130 MM x 90 MM
25.instrument weight: 2.0KG

26.Conductivity testing technical index:

27.Testing method: eddy current

28.Testing range: 0.5%IACS—110.0%IACS (0.28-64.0Ms/m)

29.Display unit: %IACS and MS/M, adjustable

30.Resolution: 0.1%IACS

31.Lift-off effect: Probe compensating 0.004”(100um)

32.Accuracy:  ±1%IACS
33.temperature compensation: 0°C—50°C (probe insert transducer accuracy: 0.1°C),  automatic compensation

34.Data storage: ≥1000

35.Operating language: English/Chinese

36.Conductivity testing data automatically adjusted with the reference standard of 20°C

Application

Metal material sorting, surface or subsurface crack detecting, coating thickness measuring, plating and coating thickness measuring, hardness sorting, conductivity testing, flaw detecting of various metal workpieces.
