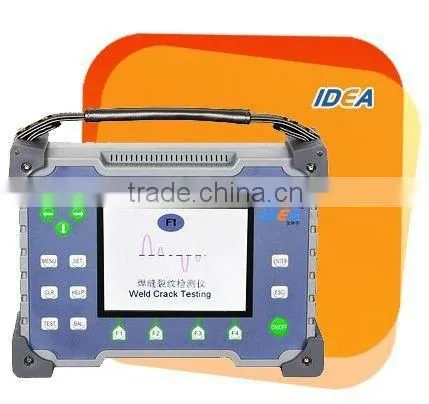

IDEA-4D High-performance Testing Machine,ET Instrument

IDEA-4D High-performance Testing Machine,ET Instrument thumbnail-1
IDEA-4D High-performance Testing Machine,ET Instrument photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
IDEA-NDT
Model Number:
IDEA-4D
Contact Supplier Request Quote Chat Now
Xiamen Idea Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name IDEA-NDT
Model Number IDEA-4D
Power Electronic
Usage Other, flaw detecting

Specifications

1. High-performance Testing Machine,ET Instrument
2. multi-function
3.USB 2.0 (Host) connection

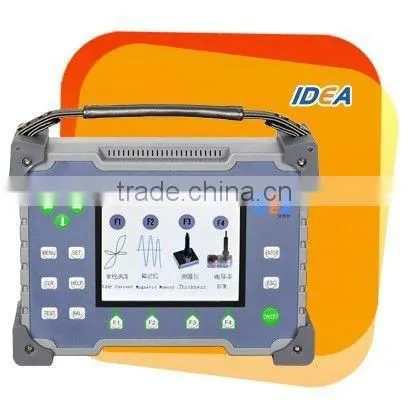

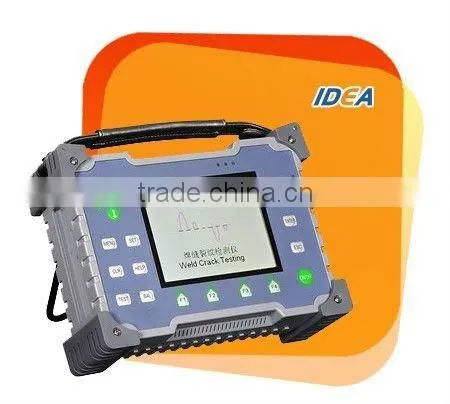

  IDEA-4D High-performance Testing Machine,ET Instrument

1.High-performance Testing Machine,ET Instrument

2. multi-function(eddy current+magnetic memory+endoscope+weld crack testing) ,no need for surface clearness

3.USB 2.0 (Host) connection for output

IDEA-4D High-performance Testing Machine,ET InstrumentIDEA-4D High-performance Testing Machine,ET Instrument



Model

IDEA-4D











Name

Multi-purpose Testing Machine

Type

Multi-purpose

Description

   Applied with the latest micro-devices and high-performance processors,  the multi-purpose testing machine has being introduced as the most compact portable detector with the world's four major functions in this field. With the multi-function of other eddy current detector detectors, it’s also distinguished for the outdoor field operation to meet various testing requirements.

   Eddy current testing: as one of five conventional NDT testing methods.
Endoscopic features: Large screen, high resolution, 360-degree visual inspection.
Magnetic memory function: Via detecting the stress concentration, surface or sub-surface defects due to the in-service material discontinuity to make a early diagnosis of the equipment.
Weld crack detection: rapid detection of weld cracks.

Specification

Eddy current+ magnetic memory+ endoscope+ weld cracks

Multi-function, and featured by the latest micro-devices and high-performance processor

Parameter

Eddy Current Technology Parameters:

1. Large screen, high-luminance 5.7 inch color TFT-LCD” to resolve the inadequacies of traditional monochrome screen

2. Testing range: 10 Hz~10 MHz, perfect adjustment function

3. Gain: 0 dB~99 dB, continuously adjustable

4. Phase: 0~359°, flexible phase rotation
5. Detection speed:> 100M/min, to meet the various testing requirements

6. Detect precision: up to 0.01mm, with a high-precision detection capabilities
7. lift-off height:> 3mm, no need for surface clearness

8. Fast digital electronic balance

9. phase / non-amplitude, box and fan box alarm modes to meet your testing needs
10. Probe Drive: 1 ~ 8, meet different probe structures requirements, thus to achieve multi-functional in the real sense

11. independent X and Y gain adjustment
12. Digital Filtering: High-pass frequency (0Hz ~ 2000Hz), low-pass frequency (0Hz ~ 2000Hz)
13. USB 2.0 (Host) connection for output
14. eddy current testing signal playback, analysis, archiving, printing features


Magnetic memory technology parameters:
1. Detection channels: 4
2. Real-time trace memory of four signals
3. Gain range: 0 ~ 99dB continuously adjustable, 0.1dB step
4. A variety of display modes: waveform, numerical
5. Fast digital electronic balance

6. DSP digital filtering: low pass, high pass (0hz ~ 2000hz)
7. Lift-off height: 150 mm
8. Minimum step: 1mm
9. Detection speed :10 - 30m / min

10. Minimum magnetic field resolution: 0.1GT
11. Multiple hardware alarm output port

12. Mass storage of a variety of testing procedures and test data
13. Optional professional magnetic memory data analysis Systems
14. Life evaluation and data query of different materials,
15. Real-time alarm modes of various levels

16. Can automatically increase or decrease the impact of the geomagnetic field
17. A variety of ways to query or make a comparison of the testing data
18. Optional Locator
19. Operating System: Linux 2.6
20. Center coordinates: X, Y adjustable
21. Operating Language: Chinese, English
22. Automatically display the calendar, time, battery capacity
23. Simple, real-time on-screen instructions
24. Charging power supply: 110V ~ 220V
25. On-line hot-key graphics, text, help.
26. Ambient temperature: -20 ° ~ 50 ° C
27. Built-in rechargeable lithium battery 8000MAH
28. Instrument Size: 210 MM x 130 MM x 90 MM
29. Coordinate System: Cartesian coordinates, polar coordinates
30. Instrument Weight: 2.0KG



Application

1. Aerospace, aviation
2. Electric power, petrochemical
3. Metallurgical, mechanical
4. Nuclear energy, military
