Home > Instruments & Meters > Test Instrument > Test Machine > Intelligent Digital Metal Magnetic Memory Testing Instrument

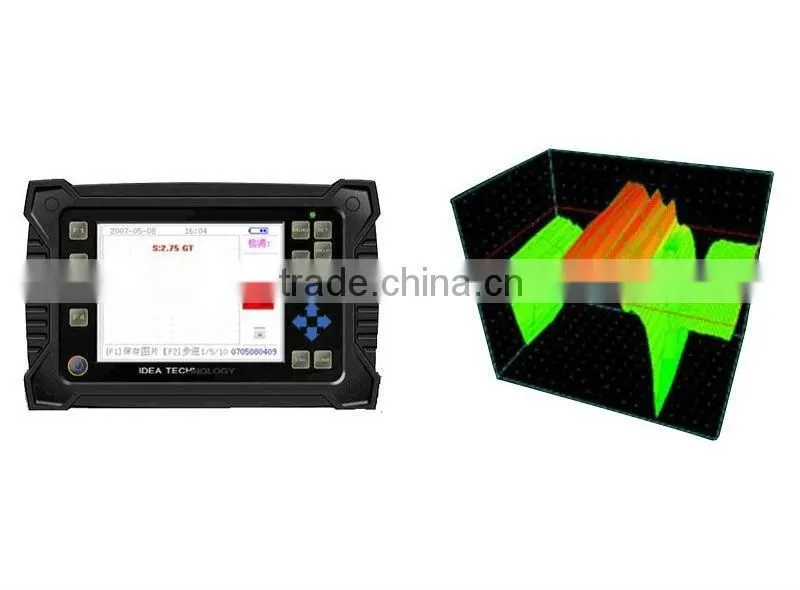

Intelligent Digital Metal Magnetic Memory Testing Instrument

Name: Intelligent Digital Metal Magnetic Memory Testing Instrument
Brand: IDEA-NDT
SKU: 132157287

Intelligent Digital Metal Magnetic Memory Testing Instrument thumbnail-1

Intelligent Digital Metal Magnetic Memory Testing Instrument photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

IDEA-NDT

Model Number:

IDEA-8MM

Contact Supplier Request Quote Chat Now

Xiamen Idea Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name IDEA-NDT

Model Number IDEA-8MM

Power Electronic

Usage Other, potential flaw measuring

Specifications

1Intelligent Digital Metal Magnetic Memory Testing Instrument
2.automatically clear the "geomagnetic field" effect
3. ndt test

Model	IDEA-8MM
Name	Intelligent Digital Metal Magnetic Memory Testing Instrument
Type	Magnetic Memory
Description	IDEA has developed a principle of new diagnostic methods (in the 21st century the most important detection method) metal magnetic memory. IDEA-8MM is the fruit of many years of industrial and laboratory studies based on the original IDEAP0201. This testing principle is metal magnetic memory effect caused by the stress concentration of the overload part of workpiece. And this method is of fast detecting and there’s no requirement of metal surface clearness. Via detecting the potential flaw parts of the stress concentration area, we can ensure early diagnosis and warning for more efficient and safe manufacturing.
Specification	1.Early warning of the mechanical stress concentration area which is the main source of damage 2.Detecting the exact flaw of stress concentration areas and evaluate the degree of danger . 3. Via the metal structure to determine the position, size and development direction of the potential cracks. 4.Evaluate the practical life of the equipments Use the computers to process information, and special methods and their corresponding procedures to obtain systemized detecting, which all contribute to the make up of precautionary measures to ensure safe manufacturing or on-service operation.
Parameters	1. Exclusive manufacturer to adopt “large screen, high-luminance 5.7 inch color TFT-LCD” which ensures more clear and vivid images. 2. LCD luminance: 1-8, to meet different luminance requirements. 3. lift-off height: 150mm 4. Minimum step: 1mm 5. Detecting speed: 10--30m/min 6. Minimum magnetic resolution: 0.3GT 7. Channel: 4-8( expandable to 64) 8. Gain: 0 dB ~ 99 dB, a wide gain range to improve the detecting resolution 9. Display: waveform, numerical, clear display. 10. DSP digital filtering: high-pass, low-pass frequency (0Hz ~ 2000Hz) 11. Fast digital electronic balance 12. Automatically clear the "geomagnetic field" effect 13. Alarm settings: an independent non-per-channel amplitude size setting 14. Alarm Sound: On / Off 15. 100 group testing process parameters storage 16. 10000 graphical memory, graphics can be saved as the U disk 17. PC Communication: USB 2.0 and RS-232 18. large storage capacity: 512M 19. Operating System: Linux 2.6 20. Manipulation language: Chinese, English 21. Simple, real-time on-screen operating instructions 22. Online hotkey graphics, text help. 23. Built-in rechargeable lithium battery 8000MAH 24. coordinate system: Cartesian coordinate system 25. automatically displays the calendar, time, battery capacity 26. Hand / Auto Shutdown 27. charging power supply: 110 ~ 220V 28. ambient temperature: -10 ° ~ 50 ° C 29. Instrument Size: 210 130 90 mm 30. Instrument Weight: 2.0KG Special Note: Instrument can be equipped with the following "professional" software IDEA-MMS1 metal magnetic memory analysis system (software) is to improve the testing intelligence of apparatus and reduce the work load of professionals to improve the detection efficiency!
Application	Especially applicable to nuclear energy, electrical energy, petroleum, aerospace & aviation and other department on the flaw or stress concentration area evaluation of on-service metal parts, various Ferromagnetic pipes, boiler, pressure vessels and oil reservoirs to achieve safer and more reliable product usage.
