Help CenterDigital Eddy Current Flaw Tester/Metal Parts Testing Equipment
Related Products
-
Portable Digital Eddy Current Testing Instrument/dual Frequency TestingUS$ 5,000 - 700,000MOQ: 1 Set -
Digital Intelligent Eddy Current Testing Equipment/corrosion Testing EquipmentUS$ 5,000 - 700,000MOQ: 1 Set
-
Portable Metal Magnetic Memory Measuring Instrument,NDT/NDENegotiableMOQ: 1 Set
-
Metal Magnetic Memory Diagnostic Apparatus, NDTNegotiableMOQ: 1 Set
-
Intelligent Digital Metal Magnetic Memory Testing InstrumentNegotiableMOQ: 1 Set
Specifications
1 Eddy Current Flaw Tester/Metal Parts Testing Equipment2.Operating Language: Chinese, English
3. Handhold and elegant

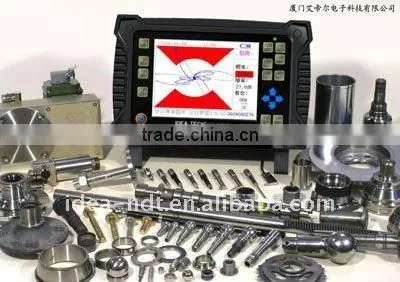

1 Digital Eddy Current Flaw Tester/Metal Parts Testing Equipment
2.Operating Language: Chinese, English
3. Handhold and elegant design
Model |
IDEA-1S |
|
Product |
Digital Eddy Current Testing Instrument |
|
Type |
Eddy current |
|
Description |
Upgraded from IDEAP0101, IDEA-1S is a type of intelligent digital eddy current detector with full function of eddy current testing instrument but compact and more exquisite. It’s featured with high-luminance color LCD display, adjustable phase, gain, testing frequency, English and Chinese operating interface, easy and intuitive operation, applicable to nearly all eddy current testing area.
Fool-style operation available. According to the test requirements, the frequency, gain, phase and other parameters can be preset by professional testing personnel. While testing, the corresponding testing parameters can be inserted and no special training is required for testing personnel |
|
Specification |
Eddy current testing signals playback, analysis, storage, printing USB 2.0 (Host) connection for output Intelligent digital design, easy to operate High-accuracy, high-efficiency testing Various testing schemes according to the user’s requirements Compact design, portable Easy operation, real-time on-screen instruction, fool-style operation available |
|
Parameter |
1.Large screen, high-luminance 5.7″color TFT-LCD, overcomes the shortcomings of the traditional monochrome screen display 2.Frequency range: 10 Hz~10 MHz, continuously adjustable 3.Gain: 0 dB~99 dB, with wide adjustable range 4.Phase rotation: 0~359°, flexible phase rotation 5.Testing speed: >100M/min, meets various testing requirements 6.Testing accuracy up to: 0.01mm, 7. Lift-off height: >3mm, no need for surface clearance. 8.Fast digital electronic balance 9.Phase/non-constant amplitude, box and fan-shape alarm modes to meet various testing requirements 10. Probe driver: 1-8. to meet the requirements of various probe structure and achieve multifunction in the real sense 11.Independent X and Y gain ratio 12.Digital Filtering: High-pass frequency (0Hz ~ 2000Hz), low-pass frequency (0Hz ~ 2000Hz) 13.USB 2.0 (Host) connection for output 14.Eddy current testing signals playback, analysis, storage, printing 15.Operating system: Linux 2.6 16.Operating Language: Chinese, English 17.Easy to operate, real time on-screen instruction 18. On-line hot-key graphics, text help. 19.Built-in rechargeable lithium battery 8000MAH 20.Rectangular coordinate system and polar coordinates 21. Center coordinates: X/Y, adjustable. 22.Automatically display the date, time and battery capacity 23.Operating temperature: -20° ~ 50° 24.Instrument size: 210 MM x 130 MM x 90 MM |
|
Application |

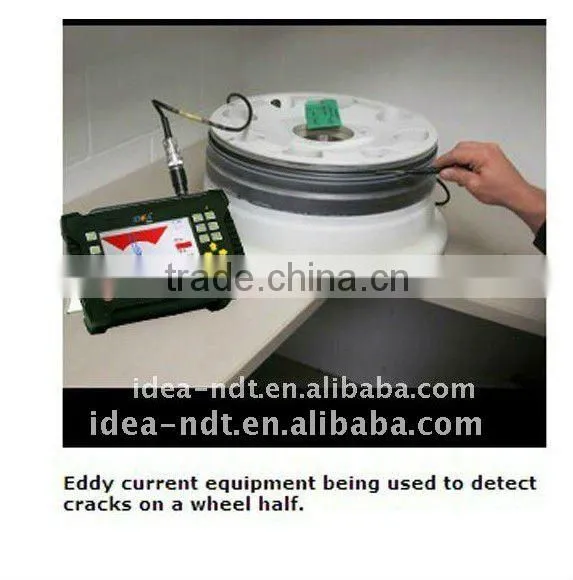

Applied to the testing of various metal material such as metal tubes, bars, parts, etc
|
|
