Specifications
Non-destructive Tubes/pressure vessel/boiler/heat exchanger Test Equipmentadjustable probe stimulus
with solid R&D strength

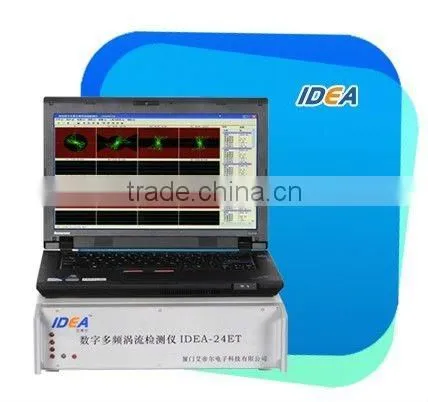

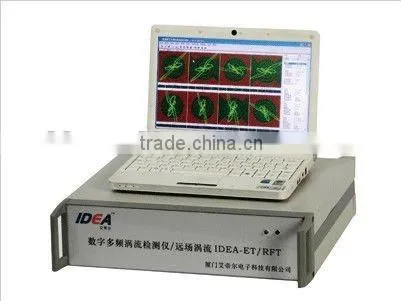

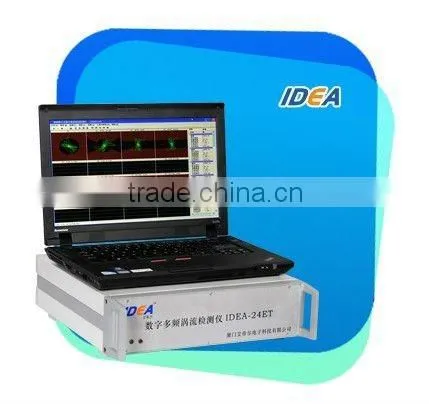

Eddy Current Inspection Equipment
Non-destructive Tubes/pressure vessel/boiler/heat exchanger Test Equipment
adjustable probe stimulus
with solid R&D strength
Specification:
Four independent selectable frequency
Three mixing units( automatic mixer)
Real-time trace memory, 8 eddy current signals
Fast digital / analog electronic balance
Frequency range: 50 Hz~10 MHz (remote field:1HZ~10KHZ)
Gain range: 0~99dB, continously adjustable, the work of each file 0.1dB step
Phase Rotation: 0 ~ 359 °, continuously adjustable, precision 1 °. In the phase-setting process, the screen can display in real time the impedance phase plan and the eddy current signal amplitude and phase values after the phase change
adjustable probe stimulus, 1-8.
8 trace impedance plane and eight internal belt curve analysis showes and time-base scan shows
Delayed blanking of memory trajectory
Menu-driven man-machine dialogue (in English and Chinese versions, Chinese Traditional / Simplified fonts optional)
Operation systems: Win98,WinMe,Win2000,WinNT ,WinXp
Automatic signal amplitude, phase measurements, and eddy current signals slowly (adjustable) playback
Digital Filtering: Low-pass: 0hz ~ 2000hz, high-pass: 0hz ~ 2000h
Configuration analysis function
can be equipped with absolute, differential and self-comparison coils, including through type, interpolation type, flat type, point, rotary and other probe
unique non-constant-amplitude phase / amplitude domain Alarm
multiple hardware alarm output
Real-time alarm output, delayed alarm output
mass storage of various test procedures and test data
C-scan display
Automatic Phase/ Defect depth curves show
Rectangular coordinate system and polar coordinates background for choices
One-screen display the cross-section diagram of in-service pipeline, the rank numbe of tested tubes,and the eddy current testing signals.
Classified marks of pipe cross-section diagram, to form eddy current testing overview map of in-service pipeline
Classified statistical test results (tables and histogram display), to facilitate the cumulative analysis of test results
Automatically display the calendar and time.
Optional Data Analysis System.
Application areas:
power plants, testing companies, special equipment .boilers, pressure vessels, etc
