IDEA-08RFT Remote field eddy current test instrument/NDT
1 remote field eddy current test instrument
2. ISO9001:2000
3.stable performance, strong anti-interference ability
Description:
IDEA-08RFT intelligent all-digital multi-frequency eddy current testing instrument is a new generation of eddy current non-destructive testing device, With the adoption of the most advanced digital electronic technology, multi-frequency eddy current technology, and microprocessor technology, it can achieve effective inner wall and outside wall cracks detection of the ferromagnetic and non- ferromagnetic metal pipes in real time. IDEA-08RFT has a complete set of eddy current testing system. Integrated with the conventional multi-frequency, multi-channel, conventional eddy current testing systems, it can also turns to be high-performance, multi-purpose, intelligent eddy current testing apparatus.
The testing frequency is 1Hz to 10000Hz with a variable frequency range for choices, and it has the function of weak testing signals amplification and strong anti-jamming capability. Applied to the tube cracks testing, with inner-through probe, it can easily detect the defects such as innder/outside wall surface crack, pits, corrosion, thinning, wall materials and internal defects. And it has the feature of computer-controlled auto-testing, digital display, high testing sensitivity, stable performance and so on. Therefore, I IDEA-08RFT particularly suitable for various in service metal (copper, titanium, aluminum, zirconium and other metal material) tubes and metal parts flaw detection and wall thickness measurements and evaluation analysis in nuclear energy, electric power, petrochemical, aerospace, aviation and other departments. More detailed, such as the testing of before service or in service boiler tube, heat exchanger tubes, underground pipes and cast iron pipes,etc.
Specification:
Adopted with the most advanced digital electronic technology, remote field eddy current technology and microprocessor technology.
Digital display, high sensitivity, stable performance, strong anti-interference ability
The role of multi-frequency, effectively inhibit the interference signals from other parts.
With advanced performance of conventional multi-frequency, multi-channel eddy current testing systems.
Once passing through the pipe, it can be detect inner and outside wall surface cracks, pits, corrosion, wall thinning, and wall materials and internal defects.
can switch into multiple single-frequency eddy current instrument via the switch
Equipped with professional data analysis software, to improve the detecting efficiency of the detecting personnel.
Parameters:
Frequency range: 1 Hz~10 000Hz
Four independently selectable frequencies
4 mixing unit (automatic mixer)
Real-time trace memory of 8 eddy current signals
Gain range: 0 ~ 99dB continuously adjustable, the work of each file 0.1dB step
Phase Rotation: 0 ~ 359 ° continuously adjustable, precision 1 °. In the Phase-setting process, the screen instantly displays the phase change in impedance after the plans and eddy current signal amplitude and phase values, convenient and intuitive
Adjustable probe stimulus, 1-8
Fast digital / analog electronic balance
4 trace impedance plan and 8 internal belt curve analysis display,
time-base scan display.
Delayed blanking function of memory path
Menu-driven man-machine dialogue (in English and Chinese versions, Chinese Traditional / Simplified fonts optional).
Operating system is Win98, WinMe, Win2000, WinNT, WinXp.
Automatic signal amplitude and phase measurements, and eddy current signals slow (adjustable) playback
Digital filtering: Low-pass: 0hz ~ 2000hz, high-pass: 0hz ~ 2000h.
Configuration analysis function
Can be equipped with access absolute, differential and self-comparison forms, including through type, interpolation type, flat type, point, rotary and other probe
Has a unique non-constant-amplitude phase / amplitude domain Alarm
Multiple hardware alarm output port
Real-time alarm output, delayed alarm output
Mass storage can be various testing procedures and test data
C-scan display
Automatic Phase / defect depth curves show

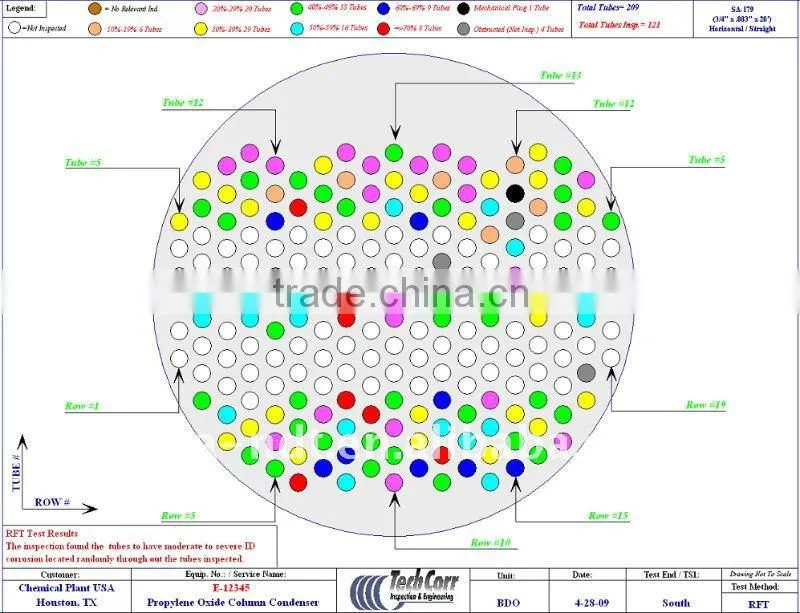

One-screen display the cross-section diagram of in-service pipeline, the rank number of tested tubes, and the eddy current testing signals.
Classified marks of pipe cross-section diagram, to form eddy current testing overview map of in-service pipeline
Classified statistical test results (tables and histogram display), to facilitate the cumulative analysis of test results
Automatically display the calendar and time
Optional Data Analysis System
Application:
Frequently applied to electric power, inspection company, special equipment, boiler And pressure vessel areas testing.
