Specifications
1.Metal magnetic memory diagnostic unit2.Fast digital electronic balance
3.Magnetic Memory testing equipment
4.Magnetic

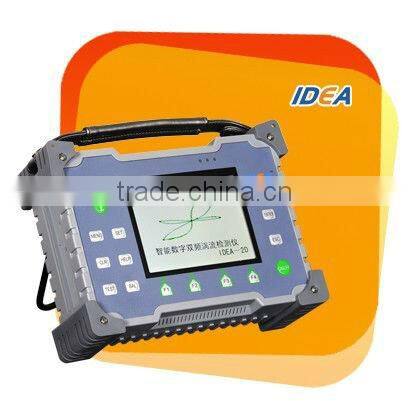

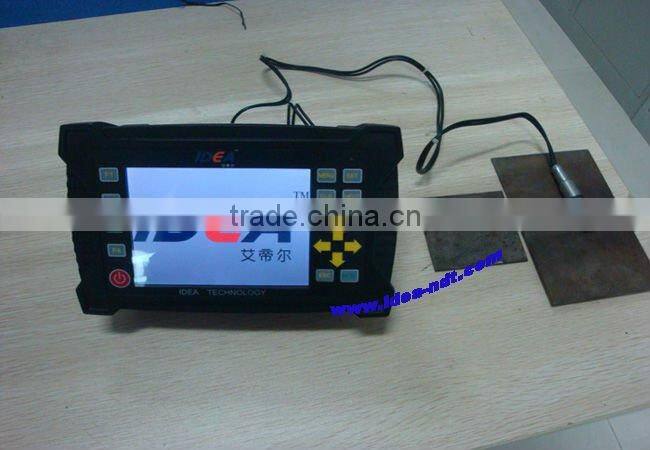

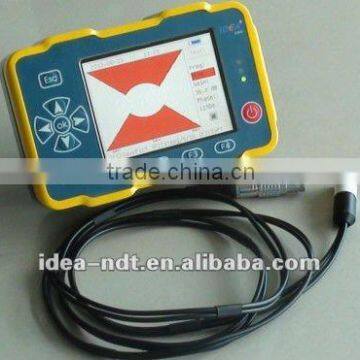

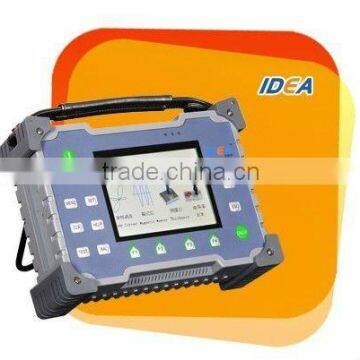

1.Metal magnetic memory diagnostic unit
2.Fast digital electronic balance
3.Magnetic Memory testing equipment
4.Magnetic
IDEA has developed a principle of new diagnostic methods (in the 21st century the most important detection method) metal magnetic memory, IDEAP0201A After years of industrial and laboratory studies and on the basis of the original IDEAP0201, this method is based on the use of As the work load caused by the stress concentration area of metal magnetic memory effect.
This method is part of rapid detection method does not require the clean metal surface. Metal Magnetic Memory Method The main task is to detect the seizure is the object has a stress concentration zone of the most dangerous parts and artifacts, so that "early" diagnosis and early warning, increase efficiency and safety.
| Features of Magnetic Memory testing equipment |
| Early showed a mechanical Stress Concentration area ——the main sources of damage |
| Determination of stress concentration areas exist in the specific deficiencies and to assess their degree of danger |
| level metal structure from the beginning of crack development in the future determination of the location, size and direction of |
| assess the actual life of equipment |
| the use of computers to process information, and use special methods and their corresponding procedures to obtain the results of a systematic determination of the development to ensure the safe operation of the seizure is part of precautionary measures. |
Applications
Particularly applicable to nuclear energy, electric power, petrochemical, aerospace, aviation and other departments in the service of metal parts and a variety of testing and stress testing of ferromagnetic pipeline flaw detection, analysis and evaluation. At the same time can be used for boilers, petrochemical industry, pressure vessels, pipelines, oil storage equipment testing.
Specifications
| the world's only use of the "big screen, high-brightness 5.7-inch color TFT-LCD", so that your test results is clearly visible; |
LCD brightness: 1 ~ 8, to meet the needs of different brightness; |
| lift-off height: 150 mm |
Minimum step: 1mm |
detection speed :10 - 30m / min |
magnetic field minimum resolution: 0.3GT |
detection channels: 4 - 8 (expandable 64-channel) |
Gain: 0 dB ~ 99 dB, a wide gain adjustment, improve the resolution |
display: waveform, numerical, so that you at a glance; |
using DSP digital filtering: high-pass, low-pass frequency (0Hz ~ 2000Hz); |
Fast digital electronic balance; |
automatically clear the "geomagnetic field" effect; |
Alarm Sound: On / Off |
1000 graphical memory (expandable to 10,000), graphics can be saved as the U disk |
PC Communication: USB 2.0 and RS-232 |
| Built-in rechargeable lithium battery 8000MAH |
coordinate system: Cartesian coordinate system |
| automatically displays the calendar, time, battery capacity |
| charging power supply: 110V ~ 220V |
Instrument Size: 210 MM x 130 MM x 90 MM , Instrument Weight: 2.0KG |
Special Note: Instrument can be equipped with the following "professional" software
IDEA-MMS1 metal magnetic memory analysis system (software)
Improve the intelligence apparatus and reduce the work of professionals, time and improve the detection efficiency!
