Specifications

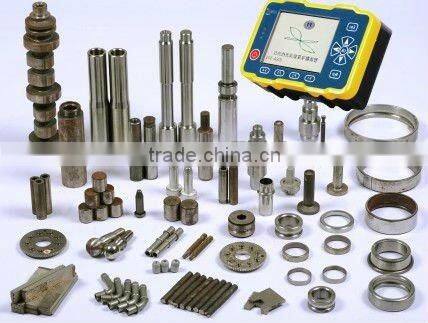

eddy current weld inspection1. Easy to operate, real time on-screen instruction
2.Linux 2.6
Digital dual frequency, conductivity Eddy Current Detector
1. Easy to operate, real time on-screen instruction
2.Linux 2.6
About product:
| Model | IDEA-3D |
| Product | eddy current weld inspection |
| Type | Eddy current |
| Description | IDEA-3D, as a outstanding member of IDEA testing instrument series, not only has all the functions of conventional digital dual-frequency eddy current detector, but also applicable to the conductivity and thickness measuring. It is capable of nearly all the eddy current testing application and can totally take place of import multi-functional eddy current testing equipment. With intelligent mixing frequency unit, it can effectively restrain jamming signals. The conductivity and thickness measuring is featured with wide testing range, and high testing accuracy. With English and Chinese versions for choice, it’s easier and more intuitive and meets different countries requirements. with the function of fool-style operating, no special training is needed for the operating personnel. |
| Specification |
1. Large screen, high-luminance 5.7″color TFT-LCD, overcomes the shortcomings of the traditional monochrome screen display 2. USB 2.0( Host) connection for output 3. Eddy current testing signals playback, analysis, storage and printing functions 4. Fast digital electronic balance |
| Parameter |
1. Independent testing frequency: two. 2. Frequency range: 10 Hz~10 MHz, continuously adjustable 3. Gain: 0 dB~99 dB, with wide adjustable range 4. Phase rotation: 0~359°, flexible phase rotation 5. Testing speed: >100M/min, meets various testing requirements 6. Testing accuracy up to: 0.01mm,high accuracy 7. Lift-off height: >3mm, no need for surface clearance. 8. Fast digital electronic balance 9. Phase/non-constant amplitude, box and fan-shape alarm modes to meet various testing requirements 10. Probe driver: 1-8. to meet the requirements of various probe structure and achieve multifunction in the real sense 11. Independent X and Y gain ratio 12. Digital Filtering: High-pass frequency (0Hz ~ 2000Hz), low-pass frequency (0Hz ~ 2000Hz) 13. USB 2.0 (Host) connection for output 14. Eddy current testing signals playback, analysis, storage, printing 15. Operating system: Linux 2.6 16. Operating Language: Chinese, English 17. Easy to operate, real time on-screen instruction 18. On-line hot-key graphics, text help. 19. Built-in rechargeable lithium battery 8000MAH 20. coordinate system: rectangular coordinate system and polar coordinates background for choices 21. Center coordinates: X/Y, adjustable. 22. Automatically display the date, time and battery capacity 23. Operating temperature: -20° ~ 50°C 24. Instrument size: 210 MM x 130 MM x 90 MM |
| Application | Metal material sorting, surface or subsurface crack detecting, coating thickness measuring, plating and coating thickness measuring, hardness sorting, conductivity testing, flaw detecting of various metal workpieces |
About company:
IDEA Electronics Technology Co., Ltd. is located in the beautiful coastal city of Xiamen, a domestic first-class high-tech enterprise professional development of non-destructive testing instruments and equipment. It is mainly dedicated to the research and development of the electromagnetic (eddy current, magnetic flux leakage and the magnetic memory), ultrasonic testing, industrial electronic endoscope apparatus and equipment ,has gained many national patents, and obtained the national science and technology fund of technology-based SMEs in technological innovation fund. Products are widely used in aerospace, electric power, oil and gas, metallurgy, machinery and automotive industries.
About advantage:
1.Leading NDT system solutions manufacturer in China(
3. Has good "7S" management, ERP management (regulate the internal management) and enforce strict quality guarantee system ISO9001: 2000
4.Short lead times, perfect after-sales service system, high-quality service personnel
