Specifications
Digital Eddy Current Testing Instrument1. Intelligent digital design, easy to operate
2. High-accuracy, high-efficiency test
Digital Eddy Current Testing Instrument
1. Intelligent digital design, easy to operate
2. High-accuracy, high-efficiency test
About product:
| Model | IDEA-1S |
| Product | Digital Eddy Current Testing Instrument |
| Type | Eddy current |
| Description |
Upgraded from IDEAP0101, IDEA-1S is a type of intelligent digital eddy current detector with full function of eddy current testing instrument but compact and more exquisite. It’s featured with high-luminance color LCD display, adjustable phase, gain, testing frequency, English and Chinese operating interface, easy and intuitive operation, applicable to nearly all eddy current testing area. Fool-style operation available. According to the test requirements, the frequency, gain, phase and other parameters can be preset by professional testing personnel. While testing, the corresponding testing parameters can be inserted and no special training is required for testing personnel |
| Specification |
1. Eddy current testing signals playback, analysis, storage, printing 2. USB 2.0 (Host) connection for output 3. Intelligent digital design, easy to operate 4. High-accuracy, high-efficiency testing 5. Various testing schemes according to the user’s requirements 6. Compact design, portable 7. Easy operation, real-time on-screen instruction, fool-style operation available |
| Parameter |
1.Large screen, high-luminance 5.7″color TFT-LCD, overcomes the shortcomings of the traditional monochrome screen display 2.Frequency range: 10 Hz~10 MHz, continuously adjustable 3.Gain: 0 dB~99 dB, with wide adjustable range 4.Phase rotation: 0~359°, flexible phase rotation 5.Testing speed: >100M/min, meets various testing requirements 6.Testing accuracy up to: 0.01mm, 7. Lift-off height: >3mm, no need for surface clearance. 8.Fast digital electronic balance 9.Phase/non-constant amplitude, box and fan-shape alarm modes to meet various testing requirements 10. Probe driver: 1-8. to meet the requirements of various probe structure and achieve multifunction in the real sense 11.Independent X and Y gain ratio
12.Digital Filtering: High-pass frequency (0Hz ~ 2000Hz), low-pass frequency (0Hz ~ 2000Hz)
13.USB 2.0 (Host) connection for output
14.Eddy current testing signals playback, analysis, storage, printing
15.Operating system: Linux 2.6
16.Operating Language: Chinese, English
17.Easy to operate, real time on-screen instruction
18. On-line hot-key graphics, text help.
19.Built-in rechargeable lithium battery 8000MAH
20.Rectangular coordinate system and polar coordinates
21. Center coordinates: X/Y, adjustable.
22.Automatically display the date, time and battery capacity
23.Operating temperature: -20° ~ 50°C 24.Instrument size: 210 MM x 130 MM x 90 MM |
| Application | Applied to the testing of various metal material such as metal tubes, bars, parts, etc |
About company:
IDEA Electronics Technology Co., Ltd. is located in the beautiful coastal city of Xiamen, a domestic first-class high-tech enterprise professional development of non-destructive testing instruments and equipment. It is mainly dedicated to the research and development of the electromagnetic (eddy current, magnetic flux leakage and the magnetic memory), ultrasonic testing, industrial electronic endoscope apparatus and equipment ,has gained many national patents, and obtained the national science and technology fund of technology-based SMEs in technological innovation fund. Products are widely used in aerospace, electric power, oil and gas, metallurgy, machinery and automotive industries.
About advantage:
1.Leading NDT system solutions manufacturer in China(
3. Has good "7S" management, ERP management (regulate the internal management) and enforce strict quality guarantee system ISO9001: 2000
4.Short lead times, perfect after-sales service system, high-quality service personnel
About certificate:
About application:

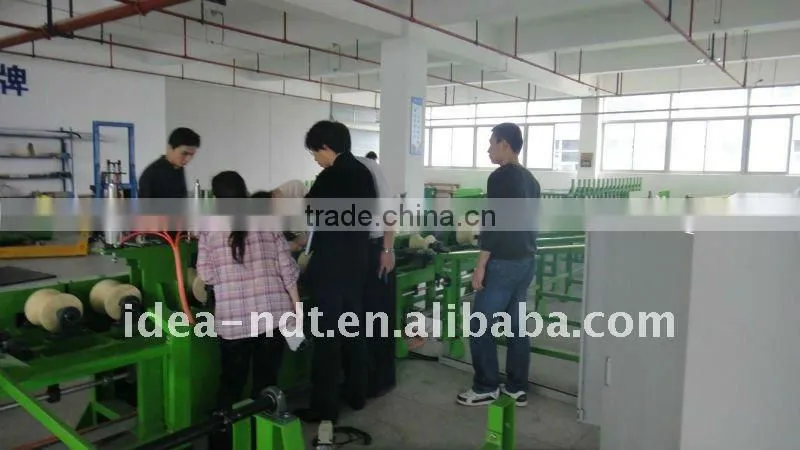

Our Mill:
