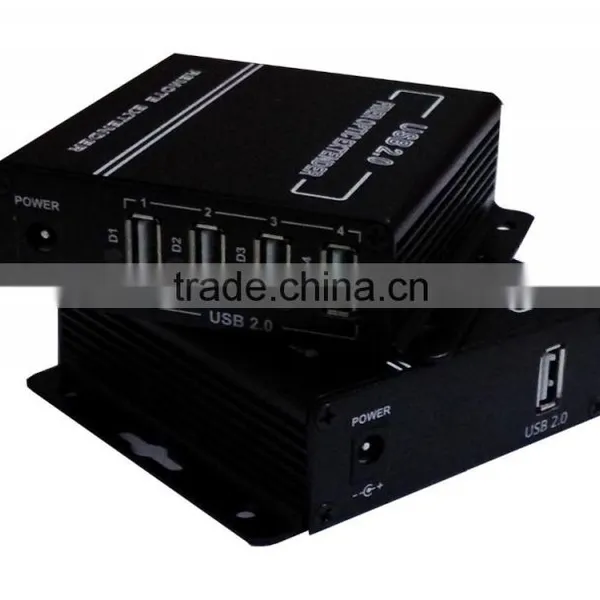

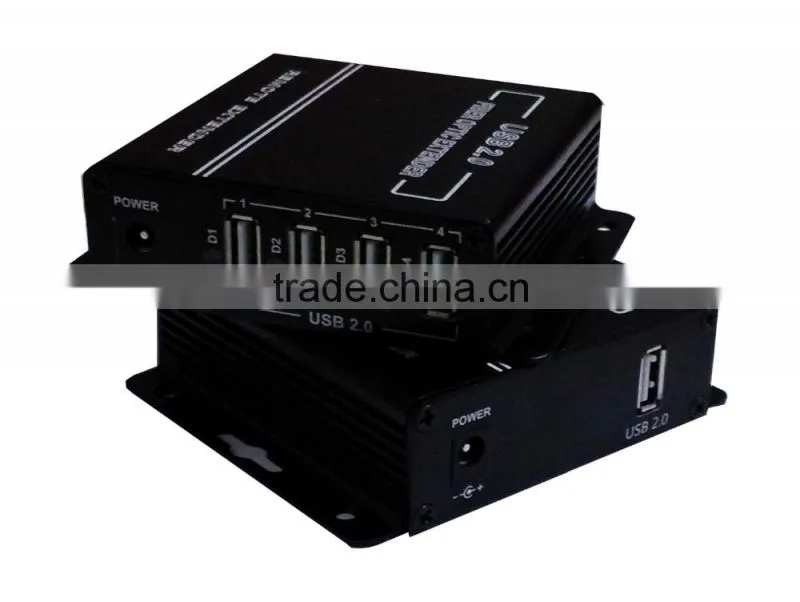

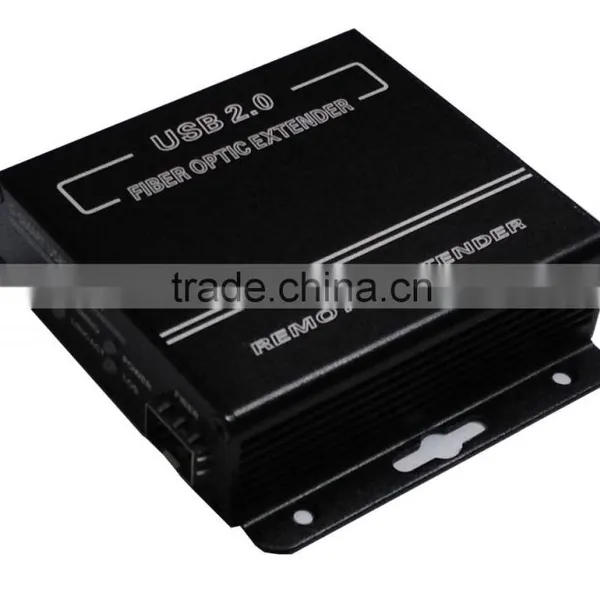

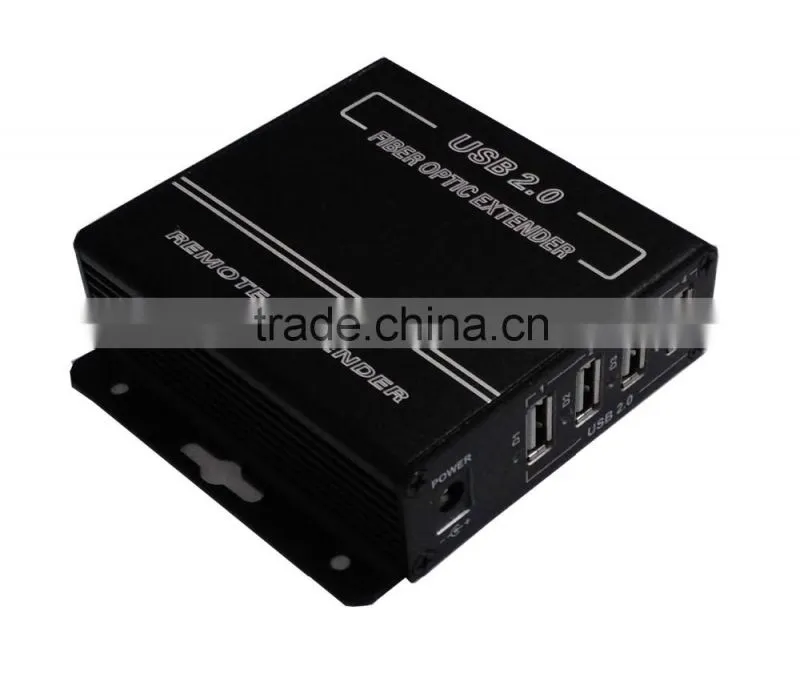

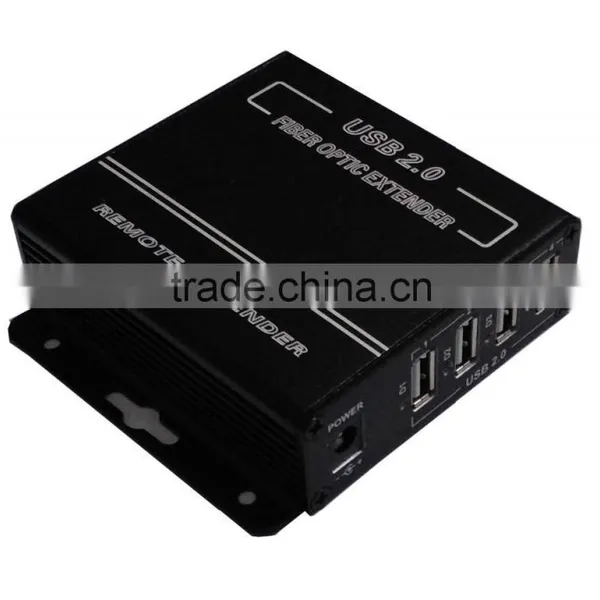

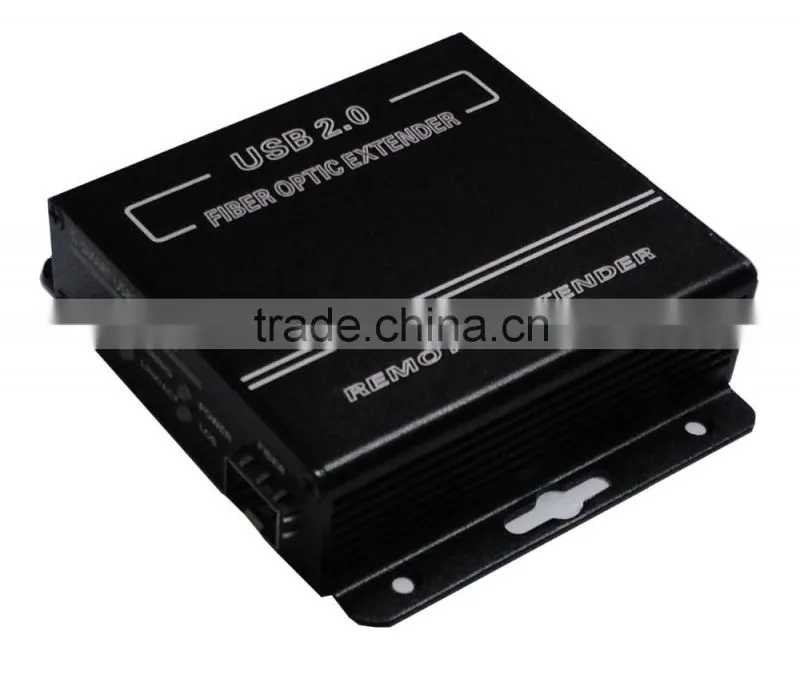

USB2.0 Extender OVER Fiber Max up to 200m via MMF or SMF

US$ 320 - 450 MOQ: 1 Pair

Key Specifications

Brand Name:

OEM

Model Number:

USB-02

Place of Origin:

Guangdong, China

Henan Yinet Communications Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Brand Name OEM

Model Number USB-02

Place of Origin Guangdong, China

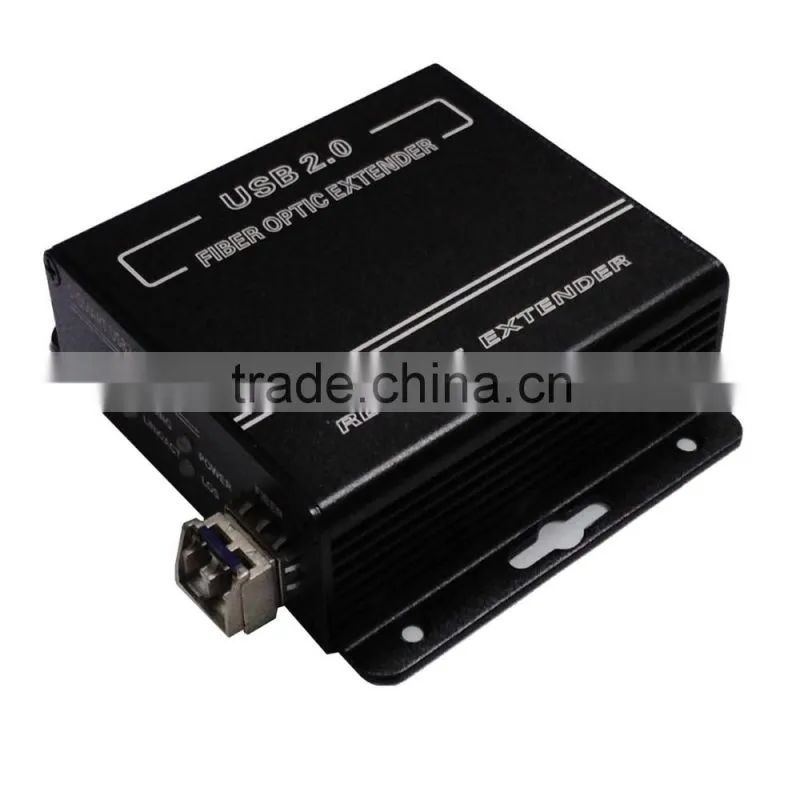

USB2.0 Extender OVER Fiber max up to 200m via MMF or SMF

Features

Extends USB 2.0 high-speed and USB 1.1 (low-speed, full-speed) devices

Operates with USB 1.1 and USB 2.0 hosts

Supports all USB devices up to 480 Mbps

Distance of up to 200m over multi-mode fiber optics (SFP transceiver modules included)

Integrated 4-port hub suitable for industrial environments

Transparent USB extension

True plug and play;

Works with all major operating systems: Windows®, Mac OS X®, and Linux®

Low RFI / EMI profile for sensitive applications

Surface-mountable

Application

Digital Signage

Industrial Control

KVM Extension

Conference Room Video Equipment

Medical Device Connectivity

Security: web camera, access control

Datasheet

Performance
Local Unit	Upstream Port	USB Type A Male
	Downstream Port	SFP*1
Remote Unit	Upstream Port	SFP*1
	Downstream Port	4-Ports
	USB Power Supply	1*900mA(Custom Available)
Operation Mode	USB 2.0:Support low speed(1.5 Mbps), full speed(12 Mbps), and high speed(480 Mbps) USB data transfer
Connections
USB2.0 Input	USB2.0 Type-A Female
USB2.0 Output	USB2.0 Type-A Female
Optical	1x SFP port
Cable
Fiber Cable Type	Multi-Mode Fiber:
Max. Length	≤ 200 meters
Mechanical
Construction	High-impact Alufer enclosure
Dimensions (L x W x H)	104mm x 104 mm x 28.3 mm
Net Weight	UFE-2100-L: 190g UFE-2100-R: 200g
Environmental
Operating Temperature	32° to +122° F. (0° to +50° C)
Storage Temperature	-40° to +185° F. (-40° to +85° C)
Operating Humidity	5% to 80% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
Power Requirements
External AC Power Adapter	Local Unit: Input: 100-240VAC / 50-60Hz 0.2A Output: 5VDC, 2.0A 5/2.5mm jack
	Remote Unit: Input: 100-240VAC / 50-60Hz 0.2A Output: 5VDC, 2.0A 5/2.5mm jack
Power Consumption	UFE-2100-L: 2.5 watts UFE-2100-R: 4 watts
Warranty
Limited Warranty	2 year warranty
