Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Audio & Video Cable > DVI KVM Extender Over Fiber 4K UHD Supports DVI 1.0 and HD-MI V1.4

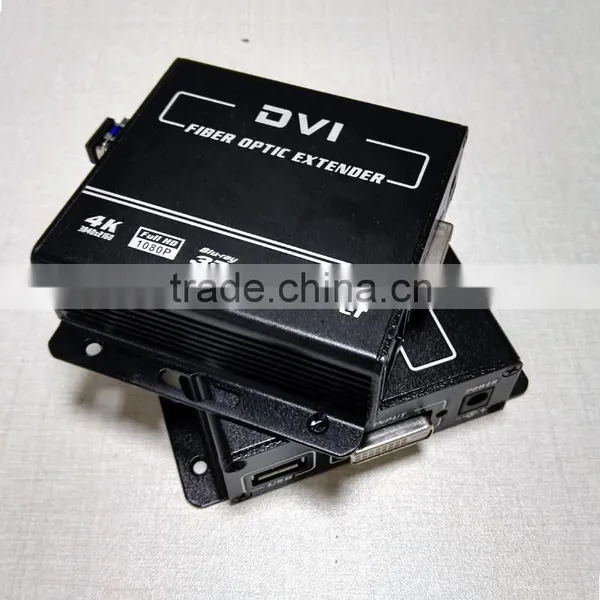

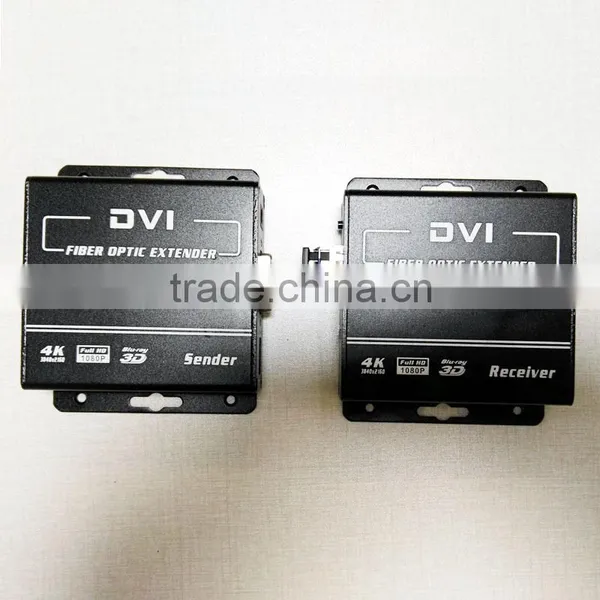

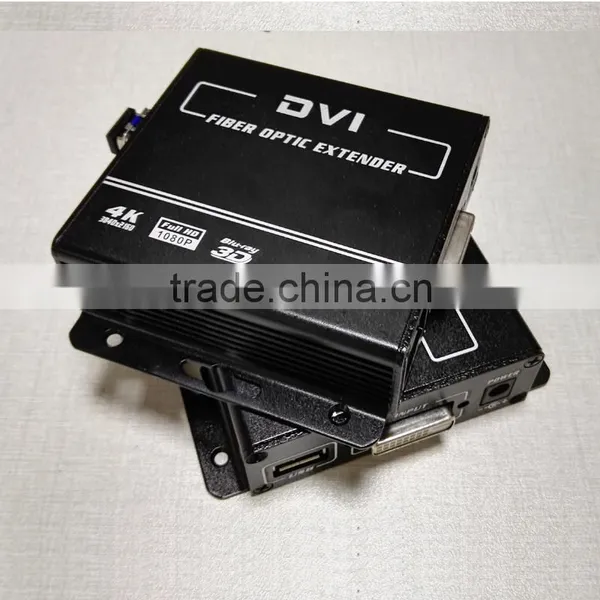

DVI KVM Extender Over Fiber 4K UHD Supports DVI 1.0 and HD-MI V1.4

DVI KVM Extender Over Fiber 4K UHD Supports DVI 1.0 and HD-MI V1.4 thumbnail-3

DVI KVM Extender Over Fiber 4K UHD Supports DVI 1.0 and HD-MI V1.4 thumbnail-4

DVI KVM Extender Over Fiber 4K UHD Supports DVI 1.0 and HD-MI V1.4 photo-1

DVI KVM Extender Over Fiber 4K UHD Supports DVI 1.0 and HD-MI V1.4 photo-2

DVI KVM Extender Over Fiber 4K UHD Supports DVI 1.0 and HD-MI V1.4 photo-3

DVI KVM Extender Over Fiber 4K UHD Supports DVI 1.0 and HD-MI V1.4 photo-4

US$ 550 - 650 MOQ: 1 Pair

Key Specifications

Get Latest Price

Brand Name:

OEM

Model Number:

DVI-01

Place of Origin:

Guangdong, China

Contact Supplier Request Quote Chat Now

Henan Yinet Communications Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name OEM

Model Number DVI-01

Place of Origin Guangdong, China

DVI KVM Extender over fiber 4K UHD Supports DVI 1.0 and HD-MI v1.4

Features

Real Time Transmission

Supports DVI 1.0 and HDMI v1.4

Supports resolutions up to3840*2160/30p,3840*2160/60P(YCbCr 420),4096x2160/30p,4096*2160/60P(YCbCr 420)

Supports 3840*2160/30p resolution with color depth up to 24 bits/pixel

Supports HDMI bit-rates up to3.4 Gbps/color,10.2 Gbps total

HDCP 1.2 compliant

Support 3D TV pass-through

Support CEC

Support EDID pass-through

Support USB Keyboard and USB Mouse

LPCM 7.1, Dolby® TrueHD, and DTS-HD Master Audio™

Plug and Play

Built-in EQ(Receiver)

Up to 300m distance by OM3-300(Custom Available)

Low RFI / EMI profile for sensitive applications

Surface-mountable

Application

Digital Signage

LED signboards in streets and in stadiums

Medical Imaging Equipment

Airplane On-board Video System

Conference Room Video Equipment

Remote monitor for traffic, industrial, military control

LCD, Projector, Plasma display connection

Large video wall system

TV Broadcast Station

Home Theater

Datasheet

Performance
Compliance	DVI 1.0,HDMI v1.4
Maximum Pixel Clock Frequency	340 MHz
Maximum Video Bit Rate	10.2 Gbps
Supported Color Depth	24-bit
Supported Resolutions	1920x1080/60p,3840x2160/30p, 4096x2160/30p, 3840x2160/60p(YCbCr 420),4096*2160/60P(YCbCr 420)
Digital Audio Support	7.1 channel LPCM, 192 kHz, 24-bit audio capability
Connections
DVI Input / DVI Output	1x DVI 24+1 Female connector
Optical	1x SFP+ port
Cable
Fiber Cable Type / Max. Length	50/125μ OM3-300 Multi-Mode Fiber: ≤ 1,000 ft. (≤ 300 meters)
Extended Function
Support IR/232/485/KM	Support USB Keyboard1 and USB Mouse1
CEC	CEC are NOT supported!
DDC Support
EDID Pass-through Support	Pass-through
HDCP Pass-through Support	Pass-through
Mechanical
Construction	High-impact Alufer enclosure
Dimensions (L x W x H)	89mm x 104 mm x 28.3 mm
Net Weight	KDX-2240-S: 200 g KDX-2240-R: 200 g
Environmental
Operating Temperature	32° to +122° F. (0° to +50° C)
Storage Temperature	-40° to +185° F. (-40° to +85° C)
Operating Humidity	5% to 80% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
Power Requirements
External AC Power Adapter	Input: 100-240VAC / 50-60Hz 0.2A Output: 5VDC, 2.0A 5/2.5mm jack
Power Consumption	KDX-2240-S: 3 watts KDX-2240-R: 3 watts
Warranty
Limited Warranty	2 year warranty

Specification

Model	HFE-3900
Local Unit	Upstream Port	USB3.0 Type A Male
	Downstream Port	Fiber(USB2.0 SFP1 + USB3.0 SFP1)
	Power	Single 5V power supply, self-power
Remote Unit	Upstream Port	Fiber(USB2.0 SFP1 + USB3.0 SFP1)
	Downstream Port	USB3.0 Type A Male
		7-port USB3.0 hub
	Power	Single 5V power supply, self-power
Operation Mode	USB1.0/2.0/3.0 Support low speed(1.5 Mbps), full speed(12 Mbps) high speed(480 Mbps) , and5Gbps USB data transfer
Fiber Port	SFPx2, LC optical connector is standard
Transmission Distance	300m transmission with MMF
Input Power	100 to 240 VAC, 50/60 Hz, to 5VDC External with power supply - 5W typical(Local Unit) - 15W typical(Remote Unit)
Operating Temperature	0 °C to 70 °C
Weight	800g
Metal Enclosure(W * D * H)	156 * 110 * 28 (Unit:mm)
