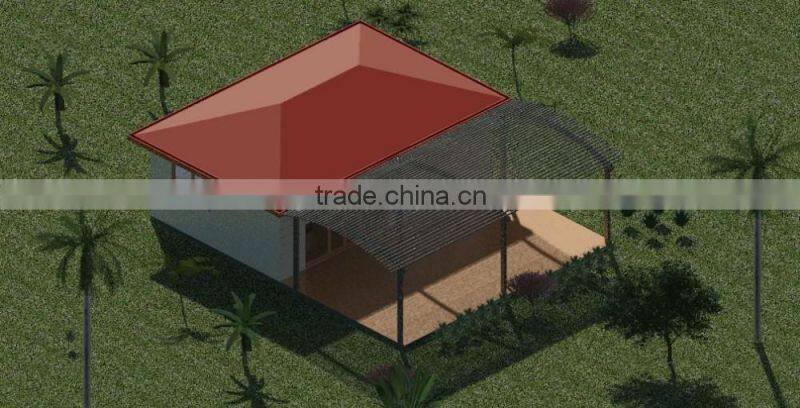

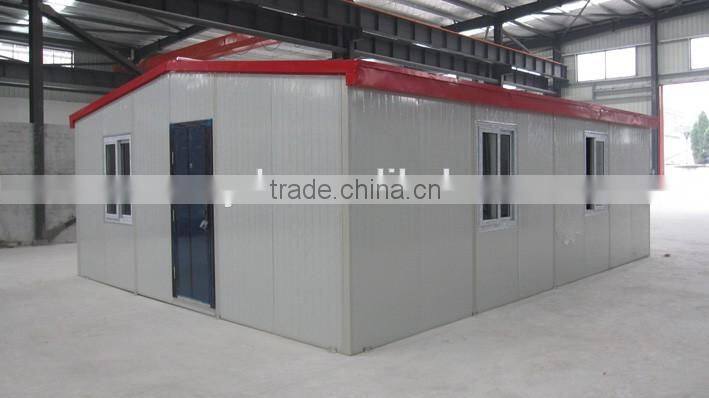

Fast Construction Prefabricated Brick House

The prefabricated houses have many model .And the steel structure can be inside the wall or on the wall.
The structure is connected by bolts and the walls are fixed with rivets.
The steel structure parts and panels are light and easy to pack and transport.
The prefab house can be broken-down and reassembled more than 6 times and has a service life of more than 20 years.
Characteristics
1.Environmentally friendly,no waste produced during assemble.
2.Flexibility when fixing doors,windows and interior partitions.
3.Beautiful appearance,different colors for the walls and roof.
4.Cost saving and convenient to transport.
5.Safe and stable,can withstand a grade 8 earthquake.
Technical parameters of a standard prefabricated house:
1.Wind resistance Grade 11(wind speed< 125.5KM/H)
2.Live load capacity of roofing:0.5Kn/m2
3.Second floor load capacity:150Kg/m2
4.External and internal walls heat transmission coefficient 0.35Kcal/hm2c

Main materials
Material Q235/Q345B
Column and beam Square tube, C-shaped steel ,painted or galvanized
Roof and Wall purline C/Z shaped steel ,painted or galvanized
Brace Angle,painted or galvanized
Roof and wall panel single steel sheet or sandwich panel (EPS,Rockwool,Fibre glass,PU)
Door Sandwich panel door / steel panel door
Window PVC or alumimum frame,one or double layer glass
Edge cover 0.5mm thickness color steel sheet
Accessory Anchor,high strength bolt,galvanized bolt,nails and glue

This prefabricated house adopts the framework of light steel structure system, by using the sandwich panel as panel material and combining by the standard model machine. The steel structure components are fixed by the screw. The prefabricated house is economical in environmental protection, and can be easy to assembly and demolition, which achieved the construction concepts of common standardization for temporary building, setting environmental protection & energy saving, rapid and highly efficient building. Prefabricated Modular house can be built widely in the scenic site and around the seashore for holiday house such as: mountain villas, lakeside-view villas etc.
Characteristics of luxury prefabricated house :
1. Environment protective, no garbage caused
2. Doors, windows and interior partitions can be flexibly fixed
3. Beautiful appearance, different colors for the wall and roof.
4. Cost saving and transportation convenient
5. Safe and stable, can stand 8 grade earthquake.
6. High space utilization, Free space partition
7. Can endure heavy rain; heavy snow; flood and wind

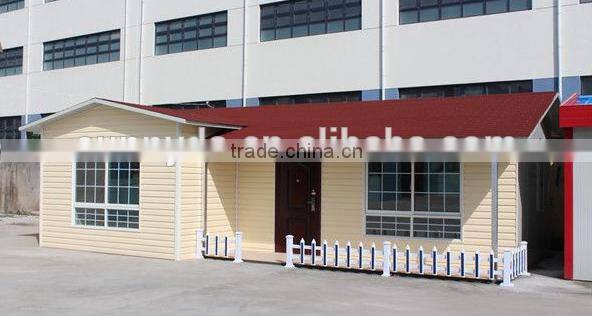

Materials of low cost prefabricated house:
Wall System:
1). 8mm Fiber cement board used as external wall panel;
2). PVC film used as house wrapping;
3).15mm OSB panel for wall panel
4). 50mm fiber glass wool as insulation;
5). Gypsum board for interior wall with putty and latex painting
Roof System:
1). Asphalt Shingle for roof tiles
2). SBS coil for waterproof
3). 15mm OSB panel for roof panel
4). 50mm Fiber glass wool for insulation;
Ground Floor:
1). Wooden floor

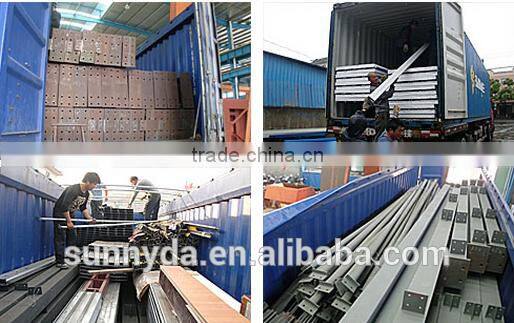

Fixed packing, loading, transportation, unloading the matters needing attention:
(1) the lifting large there must be a person responsible for the use of fixture, suitable, strictly abide by the rules of lifting, to prevent the occurrence of vibration, impact, deformation or damage, fall in the hoisting process.
(2) at the time of loading, there must be a special supervision, check car number and packing, the car pile up securely, and to increase the necessary binding component loosening, prevent the loss.
(3) remained stable in the transport process, the vehicle at the time of shipment, on the long, wide, high object transport, must be trained pilots, escort personnel responsible for, and mark is arranged on a vehicle.
(4) no rough handling, loading and unloading personnel handling, weight, size should be familiar with the components, and check the horse sling, rigging, prevent accidents.
(5) the member to the construction site, timely organization of unloading, stacking area.
(6) the crawler crane carrying member, should pay attention to the surrounding terrain, air condition, prevent the crawler crane overturning and component collision.

1. Enquiry quickly reply within 24 hours.

2.The best and competitive price.
3.Supply good packing way.

Why Choose us?
1.High strength and stiffness,high weight bearing
2.Water-proof, Fire-proof,Wind-proof,Earthquake-proof.
3.Sound insulation and heat insulation
4,Easy move Easy maintenance
5.Low cost and nice looking
6.Economy and environment friendly
7.Safty and reliable light steel flexible structure system.
8,Any dimension and customized design is available

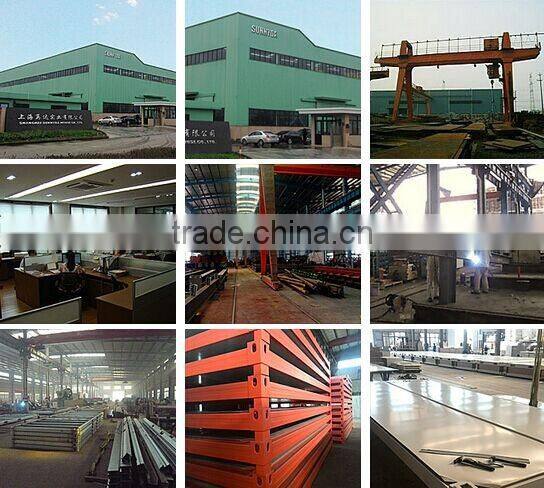

Shanghai Sunnyda Industry Co., Ltd. ---
Professional manufacturing factory in China.

Honesty is our policy.

Now our main products are Modular house, Villa, container house, steel structure warehouse ,workshop, and EPS sandwich panel, Rock wool sandwich panel,and PU sandwich ntainer cold room,etc...

We have more than ten years experience on many house and panel production, and always put quality as priority.

We take every order you give very seriously! Sunnyda house are customized and we would like to do any changes according to your special requirements.

Sunnyda products have been exported to many countries and regions, for example the Germany, the United Kingdom, Venezuela,
France, Russia, Australia, the UAE, Brazil, Chile, Panama, the , Bolivia, New Zealand, Haiti and Angola. Our company has already passed ISO9001:2000 Certifications.
