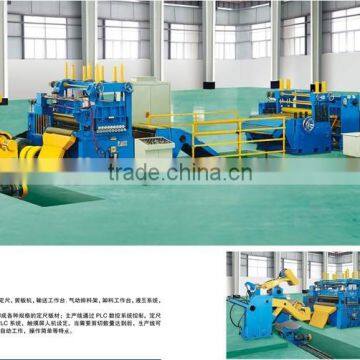

1600mm cold rolled steel coil slitting machine

FOB Price

USD $75,000 - $358,000 / Unit

1 Unit(Min.Order)

Supply Ability 13 Unit / Units per Month
Port Shenzhen Guangzhou
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Guangdong, China
Brand Name	HJ	Model Number	JB
Voltage	220V or 380V or 415V	Rated Power	Kw
Dimension(LWH)	standard	Weight	Depend on customized
Certification	ISO 9001	Warranty	one-year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

coil slitting machinery
Inquiry details
Material: AL,GI, HR, SS, CR, Copper etc.	Thickness:0.2-2.0mm (max is 12mm)
Coil ID: 508 or 610 or 760 mm	Coil max width: 200~~2000MM
Coil max weight: 8T~~30 T	Application after slit: for pipe or just processing
Monthly production: 500T~~4000T	Max Strips you want to slit: 2~~30 PCS
Speed: 15~~200m/min	Slitting Tolerance:±0.5mm
Machine composition
1, coil car	2, decoiler
3, two pinch, shear	4, loop pit
5, manual/electric side guider	6, slitter
7, edge coil rewinder	8, loop pit
9, tension station	10, recoiler
11, push device	12, coil car
13, hydraulic system	14, electric system

Product Description

---introduction of steel coil slitting machine

Steel coil slitting line is widely used for auto parts, annealing, metal sheet, automobile parts, metal case, metal punching, package steel strips industries, Etc. Our steel coil cut to length machine has been exported more than 50 countries, also win good reputation from our customers, and we will be stronger and have a good team for design and development, we do not speak a lot, we just win with our qualified quality. To cooperate with you is our biggest honor.

Parameters of aluminum coil slitting machinery
Model type	Thickness(mm)	Max width(mm)	Speed(m/min)	Power(KW)
650	0.2-1.5	200-600	180	70
	1.0-4.0	200-600	150	85
	≥4.0	200-600	120	100
850	0.2-1.5	300-800	160	85
	1.0-4.0	300-800	150	100
	≥4.0	300-800	120	120
1350	0.2-1.5	300-1300	150	120
	1.0-4.0	300-1300	130	150
	≥4.0	300-1300	120	180
1650	0.2-1.5	300-1600	150	170
	1.0-4.0	300-1600	120	240
	≥4.0	300-1600	100	280
2200	0.2-1.5	500-2000	100	280
	1.0-4.0	500-2000	80	340
	≥4.0	500-2000	60	380

HJ-JB series slitting production line is the most popularized standrad line for customer to cut material upto 12mm thick, 2200mm width of coil ,with speed 200m/min,cutting strips 30 pieces. It has the merit of extensive application scope.The machine can do uncoiling,straightening, slitting and recoiling works.

---Daily application for this machine line

Our Services

After-sale Services

1.All of the machinery have 1-year guarantee from the day installation.

2.After the guarantee, we just charge the basic cost for metal parts.

3.All of the specification and other details will be never reveal to any third companies.

Accuracy Show

1.You can touch the slit or cut place with your hands, it won't hurt your skin cause little burr on slit or cut area

2.We design slitting mechine line max speed can be reach 200m/min, in this industrial many company just offer 120m/min;

For cut to length machine, we max speed can be reach 80m/min, in this industrial many company just offer 60m/min.

3.For cot to length line to be sheet, the length and width tolerance is lower than international tolerance.

4.We company ,machinery had exported to over 50 countries, include India, Indonesia, Middle east, Africa, South east os Asia, and South America.
