1250mm brass coil slitting line
- 18 Set / Sets per Month
- Shenzhen Guangzhou
- T/T Credit Card PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- automatic welding machine for stainless steel commerical sink panel and bowl
- Stainless Steel Heavy and large Box Semi-Automatic Polishing Machine Gantry Polishing Machine
- SPECIAL METAL WIRE WEAVING MACHINE
- MODERN WIRE MESH WEAVING MACHINES FROM LANYING FOR BRASS WIRE MESH WEAVING
- LANYING stainless steel woven wire mesh machines
Product Details
Place of Origin: | Guangdong, China | Brand Name: | HJ | Model Number: | JB 1350-08 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

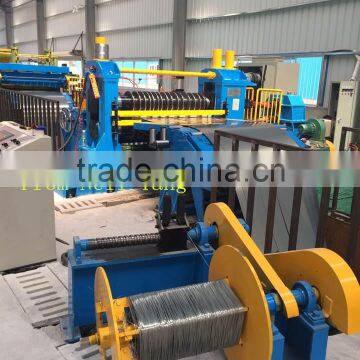

1250mm brass coil slitting line
---introduction of 1250mm copper coil slitting line
brass coil slitting line is widely used for cartridge copper/brass, Pickling, annealing, pipe making, automobile parts, metal case, metal punching, package steel strips industries, Etc. Our automatic HR slitting line has been exported more than 15 countries, also win good reputation from our customers, and we will be stronger and have a good team for design and development, we do not speak a lot, we just win with our qualified quality. To cooperate with you is our biggest honor.
1250mm brass coil slitting line | |
Inquiry details | |
Material: brass/copper | Thickness:2-6.0mm (max is 12mm) |
Coil ID: 508 or 610 mm | Coil max width: 300~~1200MM |
Coil max weight: 5T~~30 T | Application after slit: for pipe or just processing |
Monthly production: 500T~~2500T | Max Strips you want to slit: 2~~30 PCS |
Speed: 15~~120m/min | Slitting Tolerance:±0.5mm |
Machine composition | |
1, coil car | 2, decoiler |
3, two pinch, leveler, shear | 4, loop pit |
5, manual/electric side guider | 6, slitter |
7, edge coil rewinder 9, tension station, rear shear 11, push device 13, hydraulic system | 8, loop pit 10, recoiler 12, coil car 14, electric system |
Parameters of automatic HR slitting line | ||||
Model type | Thickness(mm) | Max width (mm) | Speed (m/min) | Power (KW) |
650 | 0.2-1.5 | 200-600 | 180 | 70 |
1.0-4.0 | 200-600 | 150 | 85 | |
≥4.0 | 200-600 | 120 | 100 | |
850 | 0.2-1.5 | 300-800 | 160 | 85 |
1.0-4.0 | 300-800 | 150 | 100 | |
≥4.0 | 300-800 | 120 | 120 | |
1350 | 0.2-1.5 | 300-1300 | 150 | 120 |
1.0-4.0 | 300-1300 | 130 | 150 | |
≥4.0 | 300-1300 | 120 | 180 | |
1650 | 0.2-1.5 | 300-1600 | 150 | 170 |
1.0-4.0 | 300-1600 | 120 | 240 | |
≥4.0 | 300-1600 | 100 | 280 | |
2200 | 0.2-1.5 | 500-2000 | 100 | 280 |
1.0-4.0 | 500-2000 | 80 | 340 | |
≥4.0 | 500-2000 | 60 | 380 |
We have two factories and one design office, all located in Foshan City, Two factory floor spaces about 12000 square meters, Design office located in institute of universities. Strong design is our spear, good production ability and quality is our shield. the biggest power is from Customers' support and trust. let us go to the way with Win-Win.
Below picture is for our company structure, customer show and Certificate
Why choose us
1, Our three companies just manufacturing for cut to length machine and slitting line.
2, Top 1 welding skills in gear box and body welding.
3, We have kinds of design choice, will match the suitable machine as per your real needs
4, On time delivery and strong teamwork
Do you have any big customer?
1, Jindal stainless steel 2, TaTa Group
3, Baosteel group 4, Appollo steel
5, GMT industries 6, Shawn foils ltd
Any commission we can get?
1, You can get 5% commission if you are the first customer in ur city(state)
2, Our operator will teach your person how to operate and how to deal with possible failure
3,1 Year free quality guarantee and whole life service
---Certificates for our quality and reputation
Welcome to visit us!
