Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Bendsafe Series Optical Fiber Patch Cord SC/UPC-LC/UPC SM/MM Optional
Bendsafe Series Optical Fiber Patch Cord SC/UPC-LC/UPC SM/MM Optional
US$ 1.85 - 2
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
YI NET
Model Number:
SC/APC-SC/APC-DU
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bendsafe Series Optical Fiber Patch Cord SM/MM Duplex SC/APC-FC/APCUS$ 1.85 - 2MOQ: 1 Piece -
Bendsafe Series Optical Fiber Patch Cord SM/MM Duplex LC/UPC-LC/UPCUS$ 1.85 - 2MOQ: 1 Piece
-
Fiber Patch Cord SM/MM Duplex SC/APC-FC/APCUS$ 1.85 - 2MOQ: 1 Piece
-
Fiber Patch Cord SM/MM Simplex SC/APC-FC/APCUS$ 1.85 - 2MOQ: 1 Piece
-
Bendsafe Series Optical Fiber Patch Cord SM/MM Duplex SC/APC-SC/APCUS$ 1.85 - 2MOQ: 1 Piece
Place of Origin
Henan, China
Brand Name
YI NET
Model Number
SC/APC-SC/APC-DU

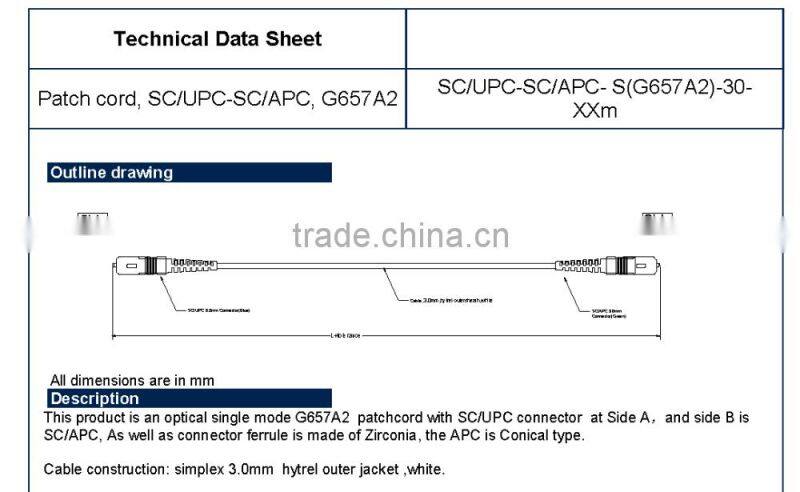

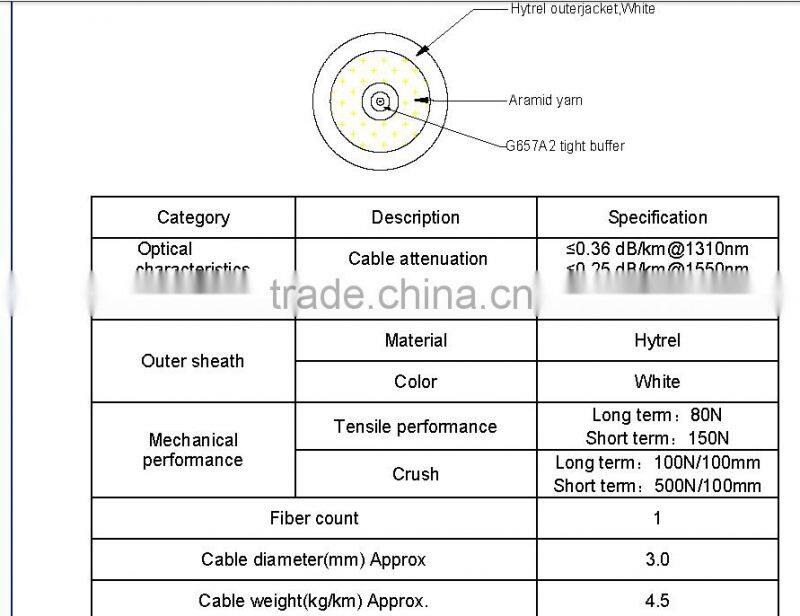

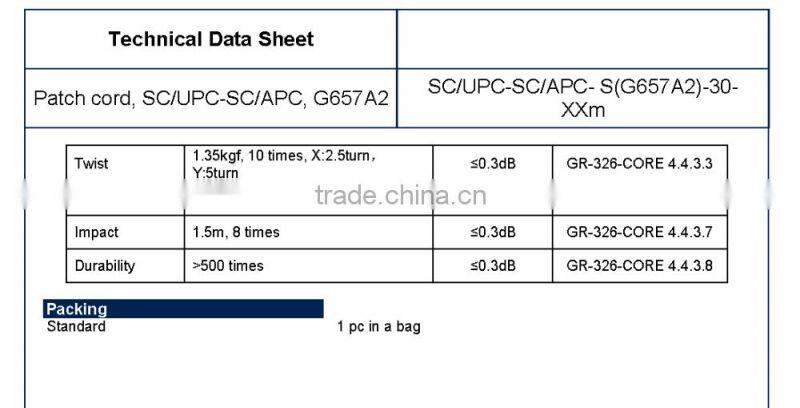

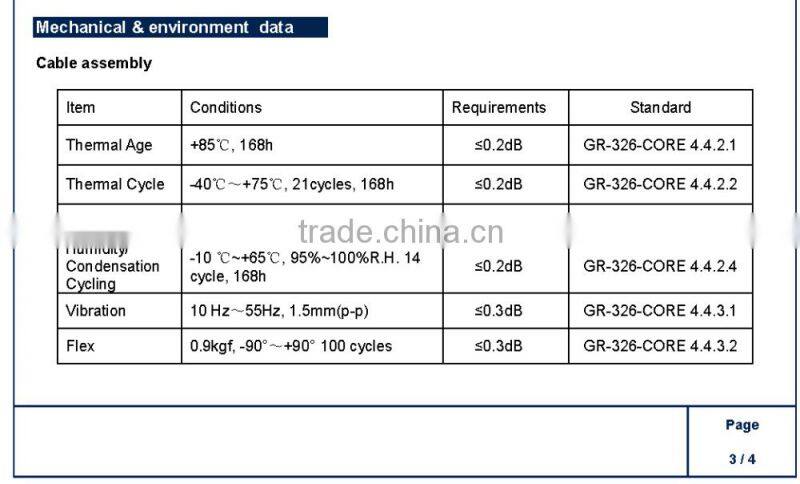

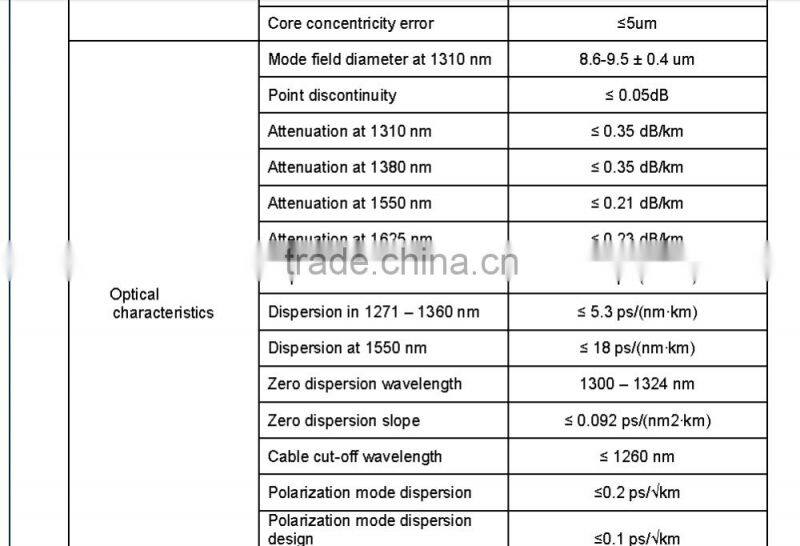

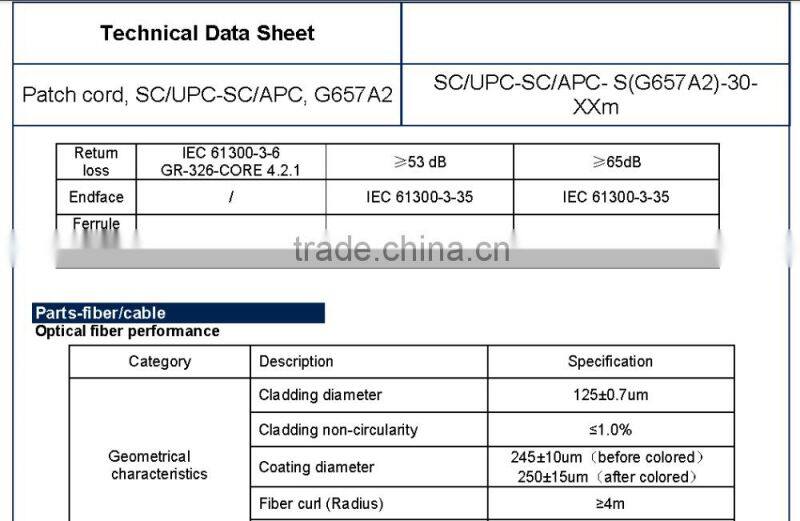

YinetTM bending safe fiber patch cord datasheet
Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
Characteristics:
Low insertion loss, high return loss
Excellent mechanical endurance
High credibility and stability
Good in repeatability and exchangeability
Specification:
Parameter |
Unit |
SC, LC/ Armoured fiber patch cord |
|||
SM |
MM |
||||
PC |
UPC |
APC |
PC |
||
Insertion loss(typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
Return loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
Operating wavelength |
nm |
1310, 1510 |
|||
Exchangeability |
dB |
≤0.2 |
|||
Vibration |
dB |
≤0.2 |
|||
Operating temperature |
°C |
-40~75 |
|||
Storage temperature |
°C |
-45~85 |
|||
Cable diameter |
mm |
Φ3.0, Φ2.0, Φ0.9 |
|||
