Professional Manufacturer Hot Sale Waterproof Brass Terminal Connector

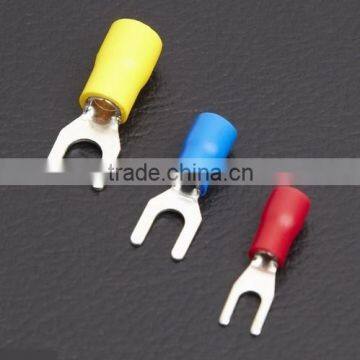

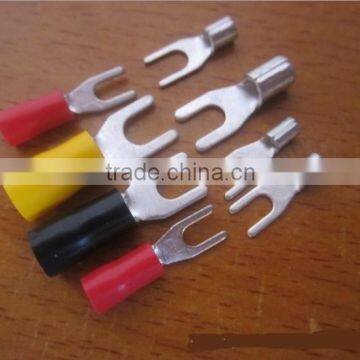

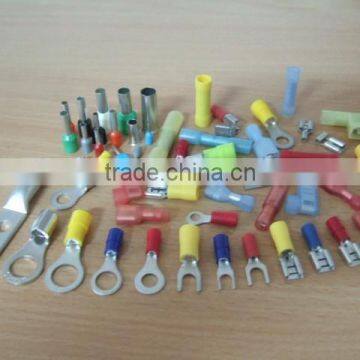

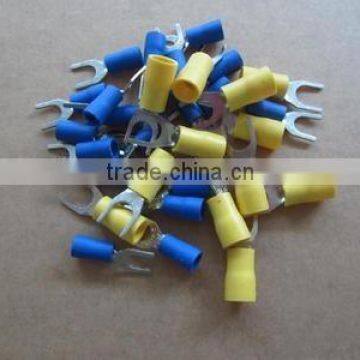

Product Pictures of terminal connector
Product Description of terminal connector
Type |
Ring Terminal, RV series, TO-JTK Type (Crimp Terminal) |
Material |
Copper |
Plating |
Tin |
Thickness |
Thickness:0.7mm,0.8mm,1.0mm |
Insulation |
PVC, Vinyl |
Color |
Red, Yellow, Black,Grey |
Working Temp |
-40 to +105°C |
Cable Range |
A.W.G.:22-16 (0.5-1.5mm²),16-14(1.5-2.5mm²), 14-12(2.5-4mm²), 12-10(4-6mm²) |
MOQ |
Small orders accepted |
Payment Term |
A.L/C,T/T (Bank Transfer, Wire Transfer) |
B.Western Union | |
C.Paypal (For samples fee & Courier cost) | |
Terms of Payment: FOB Shanghai / Ningbo;CIF;CNF;etc | |
Delivery Time |
A.By Courier: 4-7 Working days by special offer |
B.By Air: 7 Working days at appointed airport | |
C.By Sea: 20-25 Working days at appointed port | |
Supply Ability |
2 x 20 feet containers per week |
Packaging Details |
A.Common Packing:100pcs + polybag + label + inner box+ export carton |
B.Customized Packing:OEM Label,Inner Box,Blister,etc | |
HS Code |
8536900000 |
Origin Country |
Zhejiang, China |
Test Report |
REACH, ROHS. |
Diagrammatic Drawing of terminal connector
Data sheet of terminal connector
Lead section: 0.5-1.5mm2(22-16AWG) Max current: 9A
| Type | Number of ANSI bolt | Diameter of bolt mouth d2 | B(mm) | L(mm) | F(mm) | H(mm) | D(mm) | Color |
| RV1.25-3 | #4 | 3.2mm | 5.7 | 21.2 | 6.5 | 10 | 4.3 | Red |
| RV1.25-3.5 | #6 | 3.7mm | 5.7 | 21.2 | 6.5 | |||
| RV1.25-3.5 | #6 | 3.7mm | 6.4 | 21.2 | 6.5 | |||
| RV1.25-3.5 | #8 | 4.3mm | 6.4 | 21.2 | 6.5 | |||
| RV1.25-4 | #8 | 4.3mm | 7.2 | 21.2 | 6.5 | |||
| RV1.25-4 | #8 | 4.3mm | 8.1 | 21.2 | 6.5 | |||
| RV1.25-5 | #10 | 5.3mm | 8.1 | 21.2 | 6.5 | |||
| RV1.25-6 | 1-4 | 5.3mm | 9.5 | 21.2 | 6.5 | |||
| RV1.25-8 | 5-16 | 6.5mm | 9.5 | 21.2 | 6.5 | |||
| RV1.25-10 | 3-8 | 6.5mm | 12 | 21.2 | 11 |
Lead section: 1.5-2.5mm2(16-14AWG) Max current: 27A
| Type | Number of ANSI bolt | Diameter of bolt mouth d2 | B(mm) | L(mm) | F(mm) | H(mm) | D(mm) | Color |
| RV2-3 | #4 | 3.2mm | 6.6 | 17.8 | 4.3 | 10 | 4.9 | Blue |
| RV2-3.5 | #6 | 3.7mm | 6.6 | 17.8 | 4.3 | |||
| RV2-3.5 | #6 | 3.7mm | 6.6 | 21 | 7 | |||
| RV2-3.5 | #8 | 4.3mm | 8.5 | 22.5 | 7.75 | |||
| RV2-4 | #8 | 4.3mm | 6.6 | 21 | 7 | |||
| RV2-4 | #8 | 4.3mm | 8.5 | 22.5 | 7.75 | |||
| RV2-5 | #10 | 5.3mm | 8.5 | 22.5 | 7.75 | |||
| RV2-5 | #10 | 5.3mm | 9.5 | 22.5 | 7.25 | |||
| RV2-6 | 1-4 | 6.5mm | 12 | 27.6 | 11 | |||
| RV2-8 | 5-16 | 8.4mm | 12 | 27.6 | 11 | |||
| RV2-8 | 3-8 | 10.5mm | 13.6 | 30.2 | 13.9 |
Lead section: 2.5-4mm2(14-12AWG) Max current: 37A
| Type | Number of ANSI bolt | Diameter of bolt mouth d2 | B(mm) | L(mm) | F(mm) | H(mm) | D(mm) | Color |
| RV3.5-4 | #8 | 4.3mm | 8 | 24.5 | 7.7 | 12.5 | 6.2 | Black |
| RV3.5-5 | #10 | 5.3mm | 8 | 24.6 | 7.7 | |||
| RVL3.5-5 | #10 | 5.3mm | 12 | 27.9 | 7.7 | |||
| RV3.5-6 | 1-4 | 6.5mm | 12 | 27.9 | 7.7 |
Lead section: 4-6mm2(12-10AWG) Max current: 48A
| Type | Number of ANSI bolt | Diameter of bolt mouth d2 | B(mm) | L(mm) | F(mm) | H(mm) | D(mm) | Color |
| RV5.5-3.5 | #6 | 3.7mm | 7.2 | 21.4 | 5.9 | 12.5 | 6.7 | Yellow |
| RV5.5-4 | #8 | 4.3mm | 7.2 | 21.5 | 5.9 | |||
| RV5.5-4 | #8 | 4.3mm | 9.5 | 25.5 | 8.3 | |||
| RV5.5-5 | #10 | 5.3mm | 9.5 | 25.5 | 8.3 | |||
| RV5.5-6 | 1-4 | 6.5mm | 12 | 31.5 | 13 | |||
| RV5.5-8 | 5-16 | 8.4mm | 15 | 33.7 | 13 | |||
| RV5.5-10 | 3-8 | 10.5mm | 15 | 33.7 | 13.7 | |||
| RV5.5-12 | 1-2 | 13.0mm | 19.2 | 38.1 | 16 |
More Products for You to Choose
About us
|
More than 10 years of export experience for cable & wire accessories. Main products: cable ties (nylon & stainless steel), cable glands, cable clips, terminals and terminal blocks, cable lugs, flexible conduit & connectors, wiring duct, other wiring accessories, Certificates: ISO9001 (SGS), BSCI, TUV, BV, VDE, UL, CE, IP68, RoHS and REACH We cordially welcome customers from all over the world to contact us and develop our markets together. We guarantee superior quality, competitive prices, and best after-sale services. |
Why Choose Us
♦ Certifications
Package of terminal connector
| A. Common Packing: 100Pcs + PolyBag + Label + Inner Box+Export Carton |
| B. Customized Packing: OEM Label, Inner Box, Blister, etc. |
Delivery of terminal connector
| A.By Courier: 4-7 Working days by special offer |
| B.By Air: 7 Working days at appointed airport |
| C.By Sea: 20-25 Working days at appointed port |
