Home > Electrical & Electronics > Connector & Terminals > Terminals > Made In China,ROHS Approval,OEM/ODM,Electrical Wire Connector
Made In China,ROHS Approval,OEM/ODM,Electrical Wire Connector
US$ 0.001 - 0.0048
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ETL or Empty Brand
Model Number:
P1 P2 P6
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo & Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale,High Quality,Made In China,Cord End Insulated TerminalUS$ 0.001 - 0.0078MOQ: 500 Pieces -
Hot Sale,High Quality,CE Approval,Core End TerminalUS$ 0.001 - 0.0078MOQ: 500 Pieces
-
Hot Sale,High Quality,CE Approval,Nylon 66 Material,Spiral Cable GlandUS$ 0.02 - 0.15MOQ: 100 Pieces
-
Hot Sale,CE Approval,Waterproof,Nylon 66,Black & White,Cord GripUS$ 0.01 - 0.68MOQ: 100 Pieces
-
20MM Round Cable ClipUS$ 0.03 - 0.77MOQ: 500 Bags
Place of Origin
Zhejiang, China
Brand Name
ETL or Empty Brand
Model Number
P1 P2 P6
Type
Screw Terminal

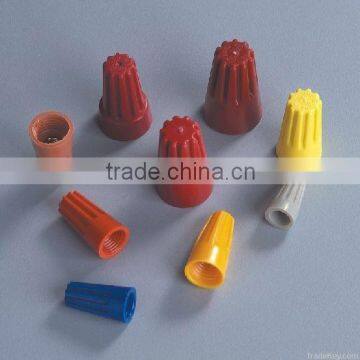

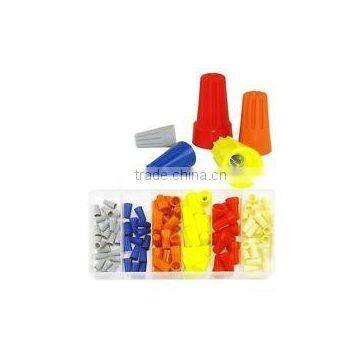

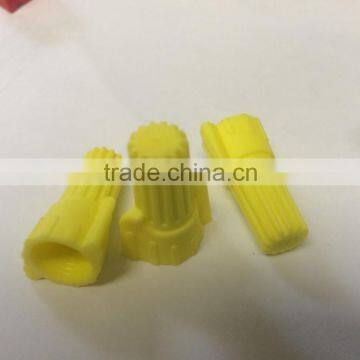

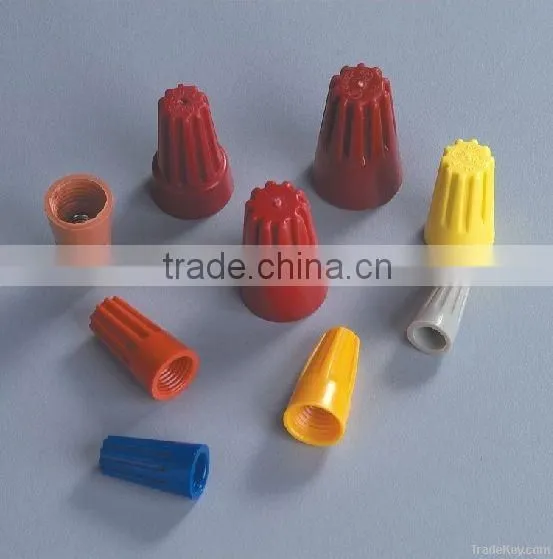

Detail Information of Screw-On Wire Connetor:
- Mateial: UL Nylon66, with spring inside.
- Usage: Peel wire coat, insert the wire in, then tighten
- Feature: Outer Wring make operation easilg
- Colour: Green/Yellow/Light Yellow/Red/Grey/Bule
| Material | steel spring |
| Plating | Tin |
| Insulation | PP |
| Color | Natural, natural, red , yellow, and other cutomized |
| Working Temp | -40 to +105°C |
| Cable Range | A.W.G.:22-16 (0.5-1.5mm²),16-14(1.5-2.5mm²), 14-12(2.5-4mm²), 12-10(4-6mm²), 8(6-10 mm²), 6(10-16 mm²), 4( 16-25mm²) |
| MOQ | Small orders accepted |
| Payment Term | A.L/C,T/T (Bank Transfer, Wire Transfer) |
| B.Western Union | |
| C.Paypal (For samples fee & Courier cost) | |
| Terms of Payment: FOB Shanghai / Ningbo;CIF;CNF;etc | |
| Delivery Time | A.By Courier: 4-7 Working days by special offer |
| B.By Air: 7 Working days at appointed airport | |
| C.By Sea: 20-25 Working days at appointed port | |
| Supply Ability | 2 x 20 feet containers per week |
| Packaging Details | A.Common Packing:100pcs + polybag + label + inner box+ export carton |
| B.Customized Packing:OEM Label,Inner Box,Blister,etc | |
| HS Code | 8536900000 |
| Origin Country | Zhejiang, China |
| Test Report | REACH, ROHS. |
Detail Information of Screw-On Wire Connetor:
| Part No. | Lead XCombination Range | Dimension | Color | |||
| B | C | L | ||||
| mm | mm | mm | ||||
| P71 | Min0.75×1+0.5×1 | Max1.5×2 | 8.5 | 3.5 | 14.7 | gray |
| P72 | Min0.75×3 | Max1.5×3 | 10.1 | 6.5 | 17.5 | blue |
| P73 | Min0.75×3 | Max1.5×3+Max1×1 | 11.2 | 8.0 | 21.4 | orange |
| P74 | Min0.25×1+0.75×1 | Max2.5×4+Max0.75×1 | 13.7 | 7.5 | 23.6 | yellow |
| P75 | Min0.25×2 | Max6×4+Max4×2 | 16.0 | 7.0 | 26.5 | red |
| SP1 | Min18×2 | Max12×3 | 19.0 | 12.5 | 22.0 | yellow |
| SP2 | Min14×2 | Max10×4 | 22.0 | 15.0 | 29.0 | red |

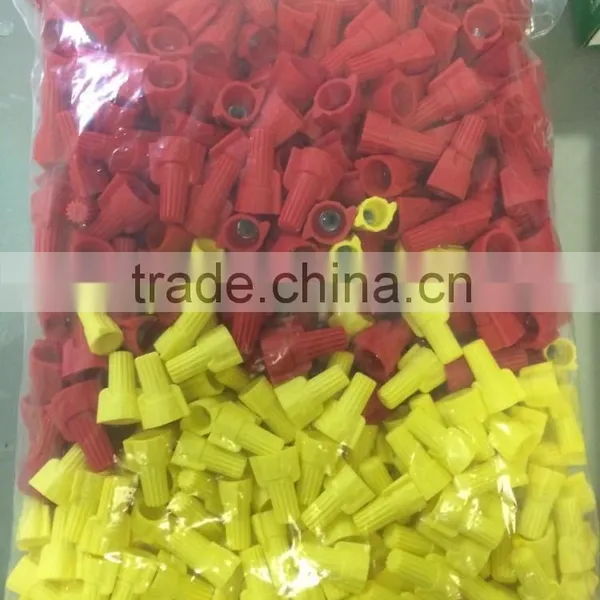

Package of Screw-On Wire Connetor:
A. Common Packing: 100Pcs + PolyBag + Label + Inner Box+Export Carton
B. Common Packing:Colorful Inner Box + Export Carton
C. Customized Packing: OEM Label, Inner Box, Blister, etc.
Delivery of Screw-On Wire Connetor:
A.By Courier: 4-7 Working days by special offer
B.By Air: 7 Working days at appointed airport
C.By Sea: 20-25 Working days at appointed port
