Description of Plastic Flexible Couduit/Pipe:
1.Material: Nylon/PP/PE/PVC
2.Temperature Range: PA(nylon):-40°C~+125°C,140 °C in short time
PP: -30°C~+110°C,130 °C in short time
PE: -30°C~+100°C,120 °C in short time
PVC: -20°C~+80°C
3.Color: Black(Most popular),Grey,other color is availabe according to client's requirement.
4.Feature: a) good flexibility and softness
b)Bellows inside and outside
c)Luster in surface and Insulation
d)abrasion resistance, chemical resistance
e)Unslit and Slit configurations for easy installation.
5.Application: Ship,Mechanical operation,Automated production line, Mass Transit Application, Robot Application, Wood Machinery and so on.
6.Certification: CE ROHS PAHS
7.Flammability: UL-94V0
8.Packing:10m/roll &20/roll &25m/roll &50m/roll &100m/roll &200m/roll &As your requirement
Data Sheet of Plastic Flexible Couduit/Pipe:
| Item No. | Specification | Inner diameter × Outer diameter | Curved Radius | Packaging Unit | |
| MM | Inch | MM | (mm) | Meter/Roll | |
| PE-10.0 | AD10.0 | 1/4" | 6.5×10.0 | 16 | 100 |
| PE-11.6 | AD11.6 | 8.0×11.6 | 16 | 100 | |
| PE-13.0 | AD13.0 | 5/16" | 10.0×13.0 | 20 | 100 |
| PE-15.8 | AD15.8 | 3/8" | 12.0×15.8 | 30 | 100 |
| PE-18.5 | AD18.5 | 14.3×18.5 | 40 | 100 | |
| PE-21.2 | AD21.2 | 1/2" | 17.0×21.2 | 45 | 100 |
| PE-25.0 | AD25.0 | 20.0×25.0 | 45 | 50 | |
| PE-28.5 | AD28.5 | 3/4" | 23.0×28.5 | 50 | 50 |
| PE-34.5 | AD34.5 | 1 | 29.0×34.5 | 60 | 50 |
| PE-42.5 | AD42.5 | 1 1/4" | 36.0×42.5 | 70 | 50 |
| PE-54.5 | AD54.5 | 2" | 48.0×54.5 | 90 | 25 |
| PE-74.0 | AD74.0 | 2 1/2" | 63.0×74.0 | 130 | 10 |
| PE-88.0 | AD88.0 | 3" | 76.0×88.0 | 170 | 10 |
| PE-108.0 | AD108.0 | 4" | 94.0×108.0 | 225 | 10 |
| Item No. | Specification | Inner diameter × Outer diameter | Curved Radius | Packaging Unit | |
| MM | Inch | MM | (mm) | Meter/Roll | |
| PP-10.0 | AD10.0 | 1/4" | 6.5×10.0 | 16 | 100 |
| PP-11.6 | AD11.6 | 8.0×11.6 | 16 | 100 | |
| PP-13.0 | AD13.0 | 5/16" | 10.0×13.0 | 20 | 100 |
| PP-15.8 | AD15.8 | 3/8" | 12.0×15.8 | 30 | 100 |
| PP-18.5 | AD18.5 | 14.3×18.5 | 40 | 100 | |
| PP-21.2 | AD21.2 | 1/2" | 17.0×21.2 | 45 | 100 |
| PP-25.0 | AD25.0 | 20.0×25.0 | 45 | 50 | |
| PP-28.5 | AD28.5 | 3/4" | 23.0×28.5 | 50 | 50 |
| PP-34.5 | AD34.5 | 1 | 29.0×34.5 | 60 | 50 |
| PP-42.5 | AD42.5 | 1 1/4" | 36.0×42.5 | 70 | 50 |
| PP-54.5 | AD54.5 | 2" | 48.0×54.5 | 90 | 25 |
| PP-74.0 | AD74.0 | 2 1/2" | 63.0×74.0 | 130 | 10 |
| PP-88.0 | AD88.0 | 3" | 76.0×88.0 | 170 | 10 |
| PP-108.0 | AD108.0 | 4" | 94.0×108.0 | 225 | 10 |
| Item No. | Specification | Inner diameter × Outer diameter | Curved Radius | Packaging Unit | |
| MM | Inch | MM | (mm) | Meter/Roll | |
| PA-10.0 | AD10.0 | 1/4" | 6.5×10.0 | 16 | 100 |
| PA-11.6 | AD11.6 | 8.0×11.6 | 16 | 100 | |
| PA-13.0 | AD13.0 | 5/16" | 10.0×13.0 | 20 | 100 |
| PA-15.8 | AD15.8 | 3/8" | 12.0×15.8 | 30 | 100 |
| PA-18.5 | AD18.5 | 14.3×18.5 | 40 | 100 | |
| PA-21.2 | AD21.2 | 1/2" | 17.0×21.2 | 45 | 100 |
| PA-25.0 | AD25.0 | 20.0×25.0 | 45 | 50 | |
| PA-28.5 | AD28.5 | 3/4" | 23.0×28.5 | 50 | 50 |
| PA-34.5 | AD34.5 | 1 | 29.0×34.5 | 60 | 50 |
| PA-42.5 | AD42.5 | 1 1/4" | 36.0×42.5 | 70 | 50 |
| PA-54.5 | AD54.5 | 2" | 48.0×54.5 | 90 | 25 |
| PA-74.0 | AD74.0 | 2 1/2" | 63.0×74.0 | 130 | 10 |
| PA-88.0 | AD88.0 | 3" | 76.0×88.0 | 170 | 10 |
| PA-108.0 | AD108.0 | 4" | 94.0×108.0 | 225 | 10 |

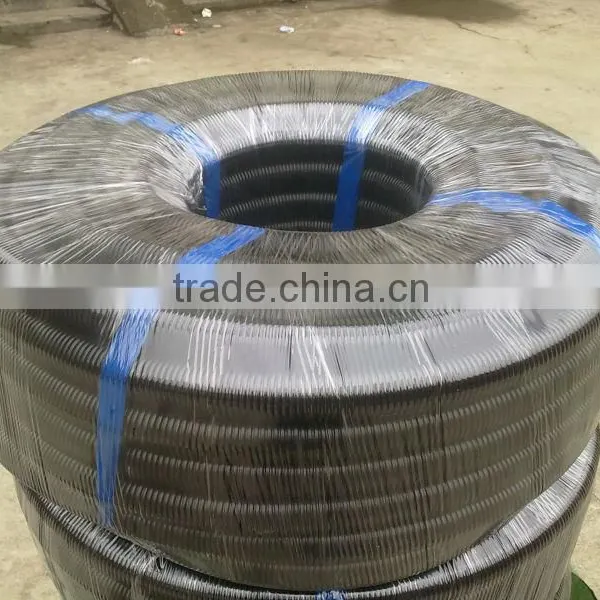

Packing of Plastic Flexible Couduit/Pipe:
Matched Connector of Plastic Flexible Couduit/Pipe:
