Description of Heat Shrinkable Tube & Sleeves:
Product name |
PE colorized heat shrink tubes |
Material |
PE |
Resistance temperature |
125°C |
Color |
Black, yellow, green, blue, red and more |
Function |
Detail as follows... |
Unit price |
Based on the FOB Shanghai/Ningbo |
Size |
Various sizes are available |
Payment terms |
30%T/T deposit, 70%T/T before the delivery |
Principle |
Customer first, service foremost. Your satisfaction is our permanent pursuit |
Features for Rohs 2:1 Heat Shrinkable Tube:
1) Material: PVC
2)Shrink ratio: 2:1 (3: 1 and 4:1 available. )
3)Rated Voltage:600V
4)Temperature range:125°C
5)Application:low voltage
6)Type:Insulation Sleeving
7)Packing:we can do any packing according to client’s requirement
8)Standard colors: Black, red, blue, yellow, green, white. Other colors available on request.
9) Environment protection.
10) insulation or jacketing of wire harness, insulation of wire terminals, capsule of electronic components, identification or colorcoding of wires.
11) Special length available on request
Diagrammatic Drawing of shrinkable tube & sleeves:
Data sheet of shrinkable tube & sleeves:
| ltem No. | As Supplied | After Shrinkage | Packing | ||
| Inner Dia(mm) | Thickness | Inner Dia(mm) | Thickness | (Meter/Roll) | |
| Dia-1 | 1 | 0.2±0.05 | 0.5 | 0.4±0.05 | 400 |
| Dia-1.5 | 1.5 | 0.2±0.05 | 0.75 | 0.4±0.05 | 300 |
| Dia-2 | 2 | 0.25±0.05 | 1 | 0.45±0.1 | 200 |
| Dia-2.5 | 2.5 | 0.25±0.05 | 1.25 | 0.45±0.1 | |
| Dia-3 | 3 | 0.25±0.05 | 1.5 | 0.45±0.1 | 100 |
| Dia-3.5 | 3.5 | 0.25±0.05 | 1.75 | 0.45±0.1 | |
| Dia-4 | 4 | 0.25±0.05 | 2 | 0.45±0.1 | |
| Dia-5 | 5 | 0.35±0.05 | 2.5 | 0.55±0.1 | |
| Dia-6 | 6 | 0.35±0.05 | 3 | 0.55±0.1 | |
| Dia-7 | 7 | 0.35±0.05 | 3.5 | 0.55±0.1 | |
| Dia-8 | 8 | 0.35±0.05 | 4 | 0.55±0.1 | |
| Dia-9 | 9 | 0.35±0.05 | 4.5 | 0.55±0.1 | |
| Dia-10 | 10 | 0.35±0.05 | 5 | 0.60±0.1 | |
| Dia-11 | 11 | 0.35±0.05 | 5.5 | 0.60±0.1 | |
| Dia-12 | 12 | 0.35±0.05 | 6 | 0.70±0.1 | |
| Dia-13 | 13 | 0.35±0.1 | 6.5 | 0.70±0.1 | |
| Dia-14 | 14 | 0.35±0.1 | 7 | 0.70±0.1 | |
| Dia-15 | 15 | 0.35±0.1 | 7.5 | 0.70±0.1 | |
| Dia-16 | 16 | 0.35±0.1 | 8 | 0.70±0.1 | |

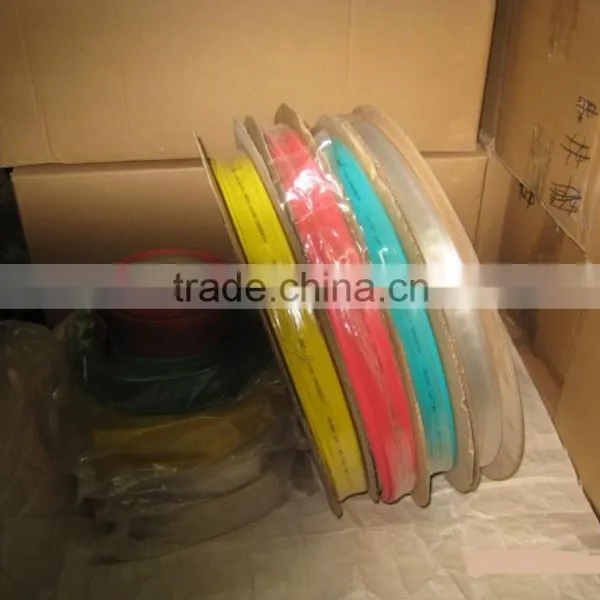

Package of shrinkable tube & sleeves:
