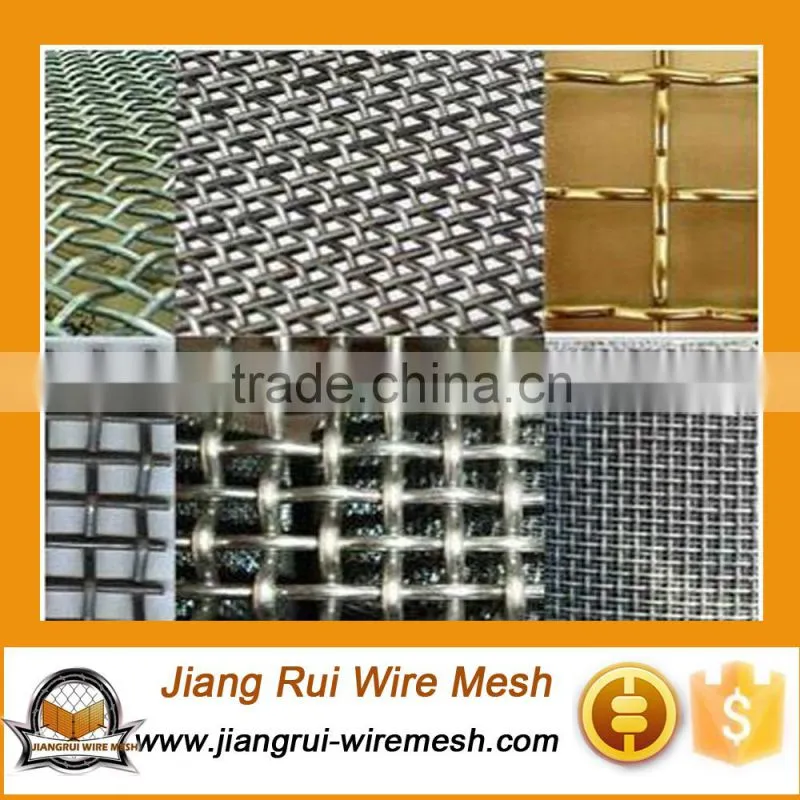

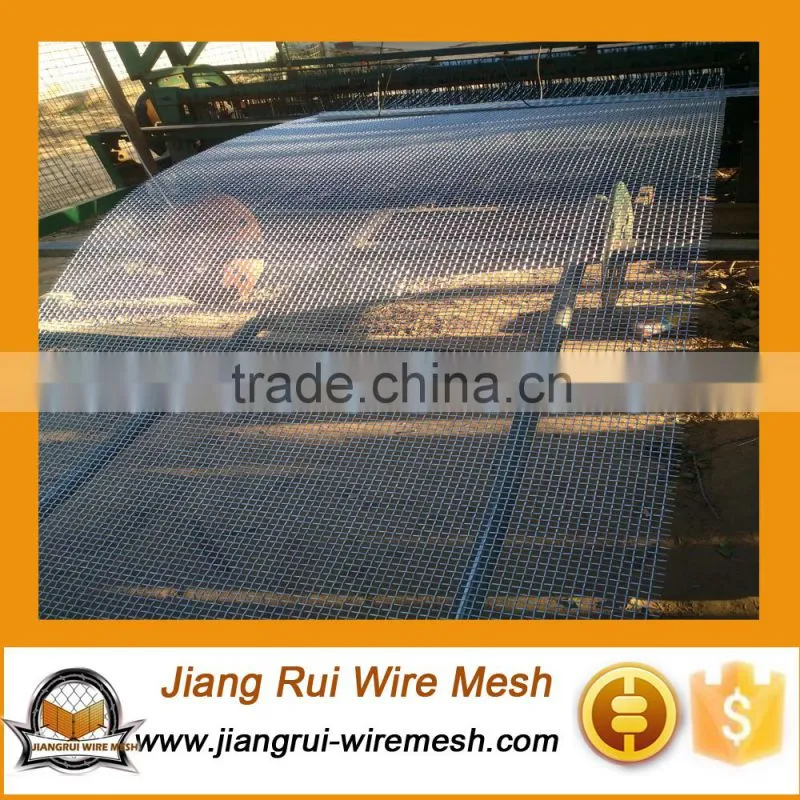

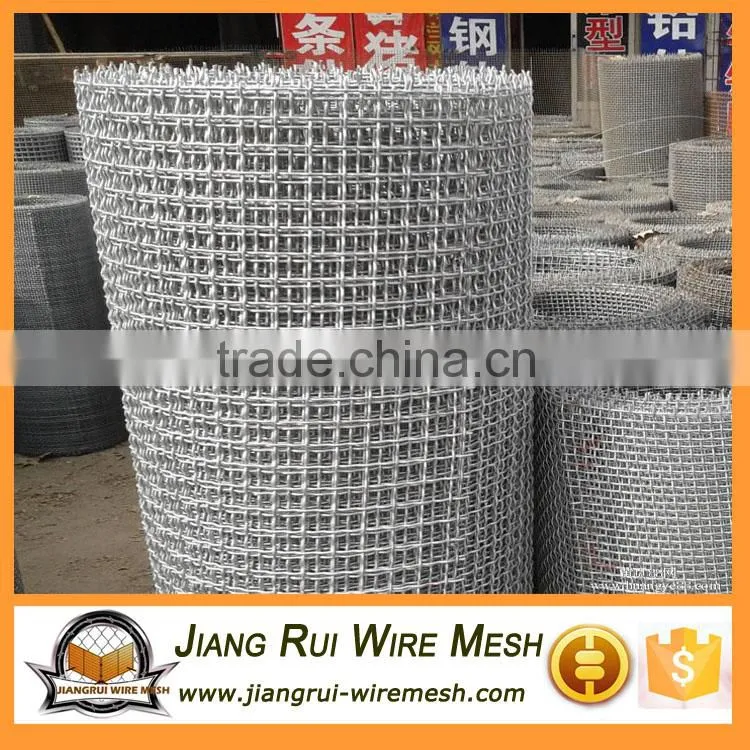

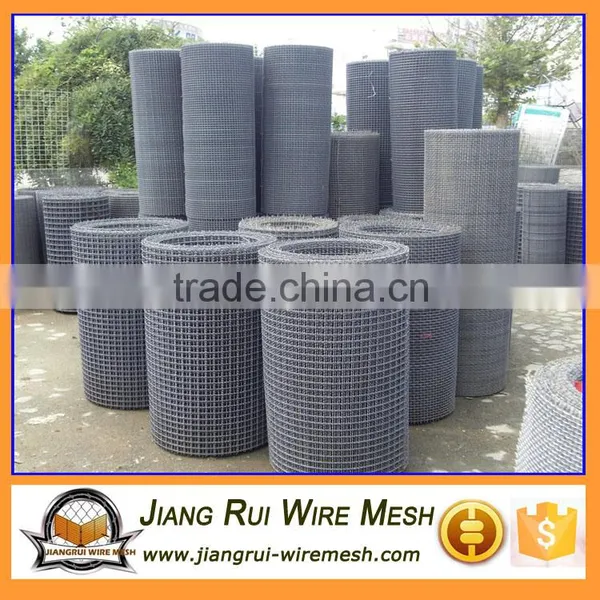

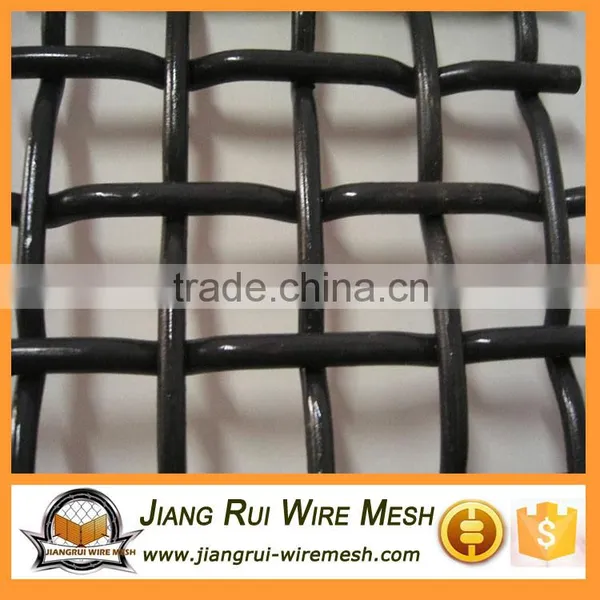

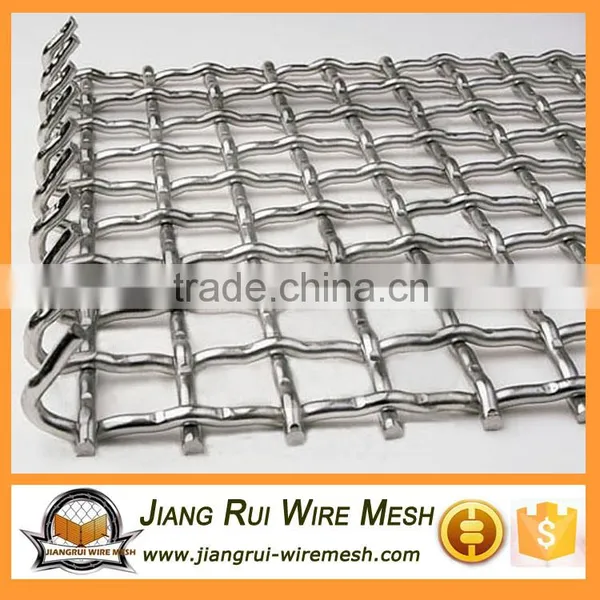

Crimped wire mesh is also called square wire mesh.wire will be crimped before woven,so crimped wire mesh own stable structure,good strength and uniform mesh
Applications
used in mining,petroleum,chemical,coal factory,railroad bridge,construction and food industry ,also ued in screening and grading of solid materials ,filtering of liquid and quarry,etc
Specification
| SWG | Wire diameter(mm) | Mesh | Aperture(mm) | Weight(kg/m2) |
| 6 | 4.8 | 0.7 | 3 | 14 |
| 6 | 4.8 | 1 | 2 | 20 |
| 6 | 4. | 1.2 | 2 | 20 |
| 8 | 4.05 | 18 | 1 | 15 |
| 14 | 2 | 3.6 | 1.5 | 1.9 |
| 14 | 2 | 5.08 | 0.3 | 12 |
| 14 | 2 | 2.1 | 1 | 2.5 |
| 14 | 2 | 21 | 1 | 4.2 |
| 19 | 1 | 2.3 | 0.18 | 1.45 |
| 22 | 0.71 | 12 | 0.14 | 2.94 |
| 23 | 0.61 | 18 | 0.8 | 3.4 |
| 24 | 0.55 | 16 | 0.1 | 2.5 |
| 24 | 0.55 | 14 | 0.61 | 4 |
| 25 | 0.5 | 20 | 1.5 |
2.6
|

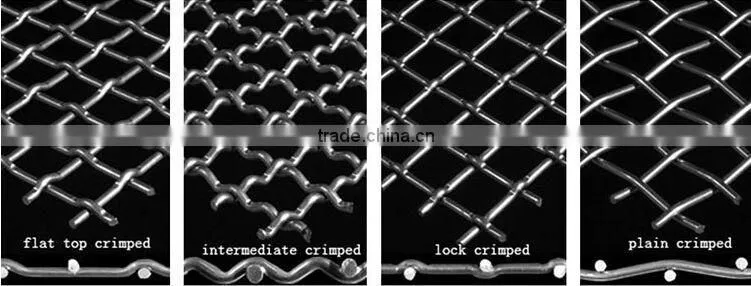

Typical Weaves
plain crimped,flat top crimped,lock crimped,intermediate crimped
Product details
Our compamy
we have specialized in crimped wire mesh for many years.
FAQ
Are you a manufacture?
of course we are and welcom to visit our factory.
How many methods for surface treatment?
galvanizing+pvc coated+powder coated
could you supply the sample?
Be happy to do that.
How to assemble?
we will teach you how to assemble by vedio.
Custom Design:
If you do not like our size now ,we could custom as your request.
package and loading:
We could help you arrange the shipping and any knid package.
Advise:
We could be based on your purpose and give you the best proposal like different
user and wholesaler
all receipts
We will express all the needed receipts to you when it was already
any interest pls contact with me,if you do not know the details,pls tell us the use,we will give you a advise.
