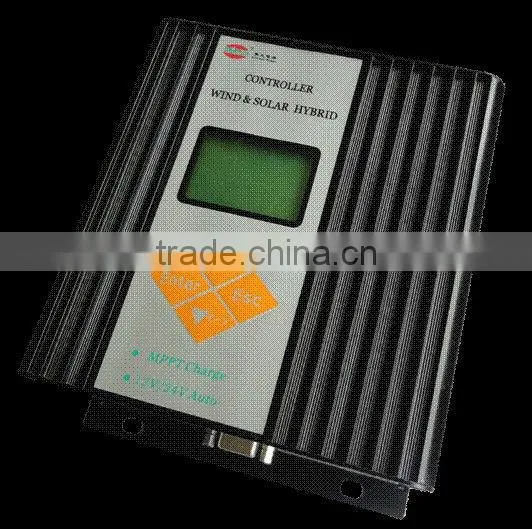

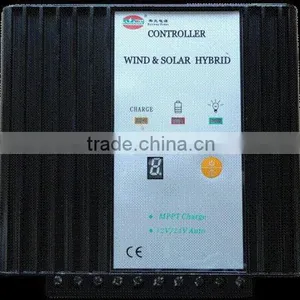

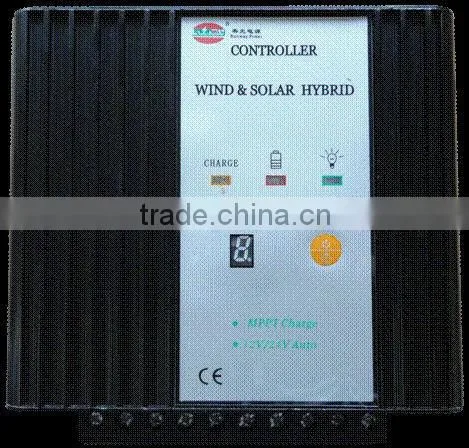

Help CenterWind & Solar Hybrid Street-light Controller
Related Products
l MPPT technology, maximum power point tracking method to optimize using the wind energy.
l Boost circuit designed. Start charging on 10VAC(24V system);6VAC(12V system). User can set this voltage parameter.
l 12V/24V System Automatic Recognition function.
l Be able to use for 200W-600W wind turbine with high compatibility.
l Digital design,module structure, stable and reliable
l With perfect protection, such as over-charge, over-discharge, open circuit, anti-reverse connection, overload, short-circuit, PMG over speed brake, over current brake, solar anti-reverse charging on night .
l Dual-line output, light sensor and timer functions, morning lighting, constantly output 24hours.
l User can adjust setting of system parameters as voltage protection point, boost voltage, light sensor voltage, timer. and so on.
System Capability | |
Rated wind-turbine Power |
200W to 600W |
PV Max. power |
150W / 300W |
Rated battery voltage |
12V/24V Auto configuration |
Output current Max. |
10A |
Output power Max. |
120W / 150W |
Indication |
LED or LCD |
Performance | |
static power consumption |
less30mA (LED);less80mA (LCD) |
Data-transfer |
RS232 to RS485,RJ45 converter |
Operating temperature |
-35°C to +55°C |
Store temperature |
-35°C to +80°C |
Humidity |
10% - 90% (NC) |
Temperature compensation |
-35mV/°C (25°C ref.) |
Altitude |
less 5000 meter |
Protection class |
IP55 |
Net-weight |
1.2 kg |
