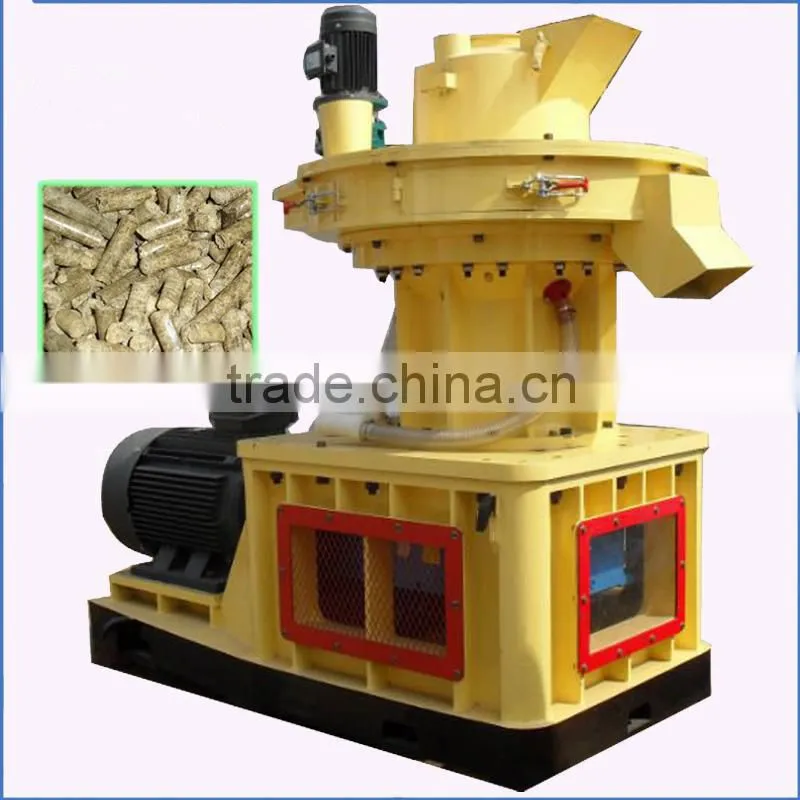

Wood pellet machine
1.Vertical die, feeding vertically; No arching of raw materials, easy for heating dissipation.
2.Die fixed, rollers rotating, materials centrifugal, evenly distributed around.
3.Double-layer dies, up and down dual-use, high capacity, saving energy.
4.Independent lubrication:;high pressure filtration, clean and unblocked.
5.Independent and frequency changeable cutting device, ensure formation rate of pellets.
A)It's widely used to & make & wood pellet from wood/straw/peanut shell sawdust,etc. Adopt high-precision gear driven,advanced flexible coupling,for high productive efficienty.
B)Main driving using imported famous bearing and oil seal, Motor.
C)Feeder,cover,chute,paddle and shaft are made of stainless steel.
D)It apply for wood sawdust within diameter 5mm, moisture around 10~13%. Final pellet diameter is 6, 8, 10, 12mm, The length can be 8~18mm.
parameters
Power |
55kw (3Phase, 380V, 50HZ) |
Capacity |
500-1000kg/h |
Pellet specification |
Φ4-10mm |
Roller numbers |
3 taper-shape rollers |
Weight (T) |
4.3 |
Dimension (mm) |
2300×1100×1600 |
1. We will send our engineer under your indications to your factory for installing, debugging and maintaining, you only need to afford the cost of the flights, and the engineer's accommodation.
2.If you are experienced in installing jobs, we will provide ongoing technical support for you.
3.Guarantee time for the main parts of the machine will be 12 months.
4.After the warranty, we can also supply the engineer service and the technical service, but you need to pay the salary for the engineer! and afford the cost of the replaced aparts yourself.
QINGDAO YUANPING WOOD MACHINERY CO.,LTD is the manufacture of plywood machine . Our machine have high quality and competitivfe price. We can guarantee good after sale service and we can provide oversea engineer to help you to install.
We can also make according to your requirment.
If you have any question please feel free to contact , I will be happy to serve you.
- For more details, please feel free to contact us!
- Thank you!
