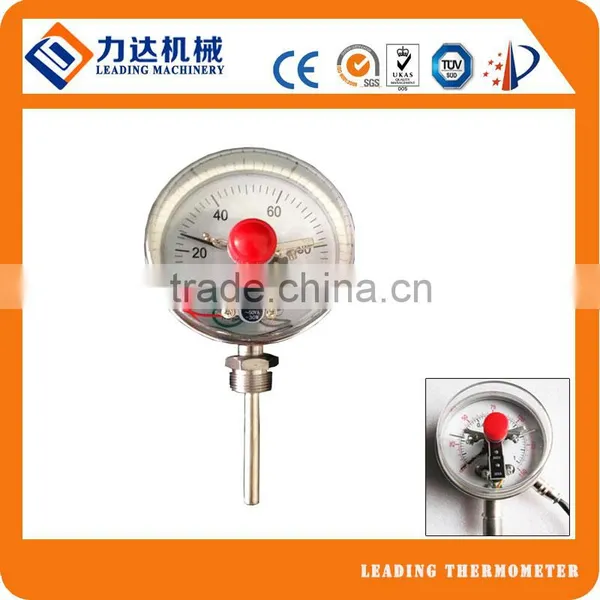

WSSX Electric Contact Bimetal Thermometer
Application and Features:
Bimetal thermometer made by Leading Machinery is an industrial instrument which is widely apply in measuring low and medium temperature. It can be used for present temperature of gas, liquid and steam directly.
Bimetal thermometer provides many advantages including mercury free, easy reading, waterproof, anti-corrosion and vibration, etc. It is widely used in power plant, machinery, chemical, textile, petroleum, food and other industries as well as some institution for research.
Structure Principle:
WSSX Electric contact bimetallic thermometer is made up of temperature sensing element, indicating part, setting of electric contact parts, Will set pointer (upper limit or lower limit) rotate to the required temperature, When the actual temperature reaches set temperature, contact contact signal, cut off (or through) the power supply, to achieve the goal of automatic control.
Technical Parameters:
According to the thermometer casing and protecting tube of links in a different way, divided into axial and radial in two forms
The thermometer accuracy degree is 1.5 , error allowed is 1.5% of the range.
Measuring range and division value of thermometer
Measurement range ℃ |
Division Value ℃ |
-80~40 |
2 |
-40~80 |
2 |
0~100 |
2 |
0~150 |
2 |
0~200 0~300 |
5 |
0~400 0~500 0~600 |
10 |
The constant of thermometer is <60 second
The protection tube material is 1Cr18Ni9Ti stainless steel
The thermometer casing is dust proof type.
The contact power is 10va or 30va
Max working voltage of contact is 220v-380v, the working voltage that we recommend is 36v or 24v
Inserting length of protection tube range is 70-3000mm.
