10inch Pu Rice Rubber Roller

10inch Pu Rice Rubber Roller thumbnail-1
10inch Pu Rice Rubber Roller thumbnail-2
10inch Pu Rice Rubber Roller thumbnail-3
10inch Pu Rice Rubber Roller thumbnail-4
10inch Pu Rice Rubber Roller thumbnail-5
10inch Pu Rice Rubber Roller thumbnail-6
10inch Pu Rice Rubber Roller photo-1
10inch Pu Rice Rubber Roller photo-2
10inch Pu Rice Rubber Roller photo-3
10inch Pu Rice Rubber Roller photo-4
10inch Pu Rice Rubber Roller photo-5
10inch Pu Rice Rubber Roller photo-6
US$ 22 - 26 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
Gongxing
Model Number:
LGL 254
Contact Supplier Request Quote Chat Now
Chibi Yongsheng Rubber Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Any ports
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hubei, China
Brand Name Gongxing
Model Number LGL 254

rice rubber roller

Production Property:



Abrasion Reduction (CM3/1.61KM): 0.15-1.05
Hardness ( Shore A ):94-95 degree

Shelling Rate: 95%

Tensile Strength :Mpa 19 (190/cm2) min

Elongation Rate: 280% min
Excellent  in heat and abrasion resistance, strong plasticity, well anti-ageing and balance.



Capacity:   10" Polyurethane: 400mt/pair



10inch Pu rice rubber rollerGeneral Information



1.Name: Rubber rollers with sorted sizes




2.Material: SBR, NBR, POLY



3.Color: brown, white, amber



4.Size: sorted


5.Minimum Order: 100pcs


6.Delivery Time:  Within 20 days after receiving the payment



7.Packing:  2pcs/ ctn,  1600pcs/800ctns/20" FCL container



                      510mm*280mm*270mm  per/ctn



Specifications:



1.Our company has over 10 years made of rice rubber roller experience



2.Our products exported to over10 countries



3.The enterprise got ISO9001-2008 certification



Technical Specification



 A. Color: Brown



a: Tensile Strength:Mpa 23-25
b: Elongation Rate: % 290-400
c: Wear Reduction: cm3/1.6km 0.19-1.05
d: Hardness (shore A): 95-96oC



B. Color: White



a: Tensile Strength:Mpa 22-24
b: Elongation Rate: % 280-400
c: Wear Reduction: cm3/1.6km 0.15-0.10
d: Hardness (shore A): 94-95oC



C. Color: Amber
a: Tensile Strength:Mpa 22-24
b: Elongation Rate: % 280-350
c: Wear Reduction: cm3/1.6km 0.15-0.10
d: Hardness (shore A): 92-96oC



Size

     Type

 Model No

 Inch Length mm External Diameter Thickness of Rubber

 Wheel Type

 LGL 100B  4"       100             222            19.5
LGL 152  6"       152             222            19.5
LGL 178   7"       178             222            19.5
LGL 200  8"       200             225            25
LGL 254 10"       254             255            25.5
Casing Type LGT 355 14A"       355             227            29.5
LGT 457 18A"       457             232            25.5
LGT 508 20A"       508             255            25.5
LGT 635 25"       635             255            25.5
LGT 708 28"       708             255            25.5

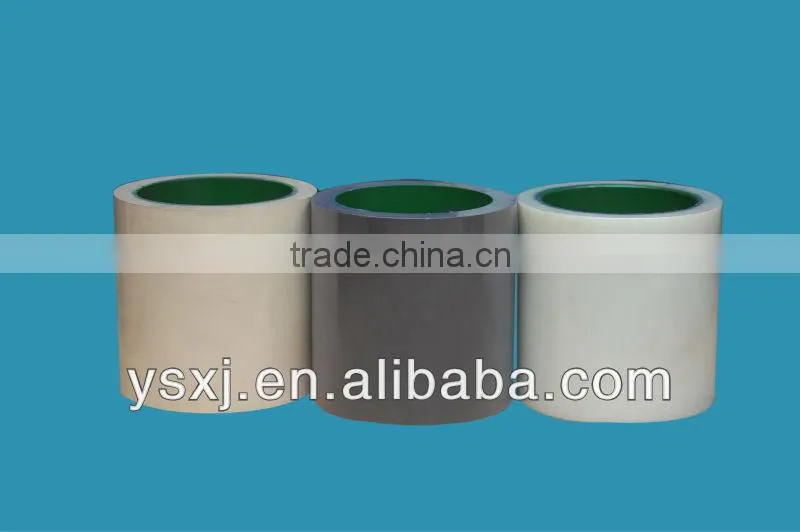

10inch Pu rice rubber roller



Advantages



 1. High shelling efficiency, up to 95%



 2. Excellent chemical and phsical properties.

 3. Good in heat and abrasion resistance.

 4. Good in temperature and weather resistance .



 5. Strong bonding between rubber roll and drum





Usage and Attention



1. Optional of Rubber Roller:



    For the choice of  the black, brown and white rubber roller with  hardnesS shore A 90oC and 95oC,



   it should be according to the type of rices, climate conditions, and different seasons.



   Try to avoid to use the single roller,  the recommended way is higher hardness for fast roller, lower hardness for slow roller.



2.Temperature and Hardness Control:



   The proper hardness is shore A 82-86oC, and the temperature is below 50oC.



    When the temperature reaches above 60oC,  the hardness of roller should be reduced 4-8oC



3. Alternative use of rubber rollers is recommended:


A: It can increase the usage life of roller and quantity of dehusking rice.



B: Each roller has break time during the working, which is good for recoving the function of rubber,



    adjusting the speed difference  upon on different diameters, and controlling the temperature effectively.



4. Two rollers should be at the same level to keep the space equal.



5. The paddy inputting should keep the balance.



6.  Keep the rate of the re-hulling under the limitation



7. Storage:



A: Avoid the direct sun shine and soaked in the rain and snow.



B: Away from the heating device about 1.5m.



C: Store in dry and clean place, away from acid, alkali, salt, oil and organic solvent.



D. Keep the room temperature 10-30oC, comparative moisture 50-80oC


E. Keep in vertical position,  horizontal is not allowed.



F. No other materials pressure on it, no hitting to avoid deformation and damage


G. Validity of storage life: one year.

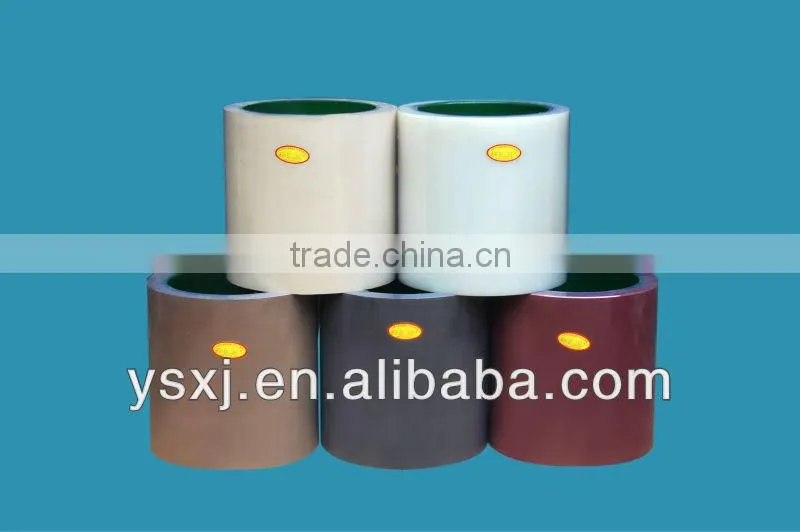

10inch Pu rice rubber roller
