Specifications
1)Column Dripper Inlaid Drip Irrigation Line pipe diameter:6-16mm2)High quality with competitive price
3)Long life
Welcome to visit our Column Dripper Inlaid Drip Irrigation Line!
Column Dripper Inlaid Drip Irrigation Line has advantages of beautiful outline, high automatic, easy operation and high safety.
The list of the line:
NO. |
NAME |
QUANTITY |
1 |
Extruder |
1set |
2 |
Extrusion mould |
1set |
3 |
Dripper store and choose unit |
1set |
4 |
Dripper convey unit |
1set |
5 |
Dripper inlaid unit |
1set |
6 |
Pipe forming and calibrating unit |
1set |
7 |
Cooling tank |
1set |
8 |
Haul-off unit |
1set |
9 |
Automatic punching unit |
1set |
10 |
Winding unit |
1set |
11 |
Power driving cabinet |
1set |
12 |
Computer control operating table |
1set |
13 |
Mixer and automatic feeding unit |
1set |
14 |
Cooling water supply and circulation system |
1set |
1. Specification
pipe |
Φ6 |
Φ12 |
Φ16 |
thickness |
0.3-0.7 |
0.5-0.9 |
0.5-0.9 |
2. Technical parameter
Production speed 25m/min
Output 80kg-120kg/h,
Max dripper conveying speed 300pcs/min
Dripper inlaid speed 150pcs/min
Dripper interval set any figure over 20cm
Hauling speed 1-30m/min
Punching speed 200pcs/min
Production line length 20m
Production line width 3m
Vacuum pressure —0.001-0.002kpa
Air pressure 0.5-0.75mpa
Cooling water pressure 0.2-0.3mpa
Central height 1m
Total power 75kw
Total weight ~6T
Our company can design and manufacture products with different specs for clienteles.
1, We have set up one special forging team to design –develop-produce-distribute-debug-repair for our clienteles.
2, We possess strong technical power, high-tech, one complete set of checkout equipment, abundant debugging experience and timely after-sale service.
If you are interested in our products, please be free to contact us. we would do our best to help you. I’m confident that will be benefit to you and us!

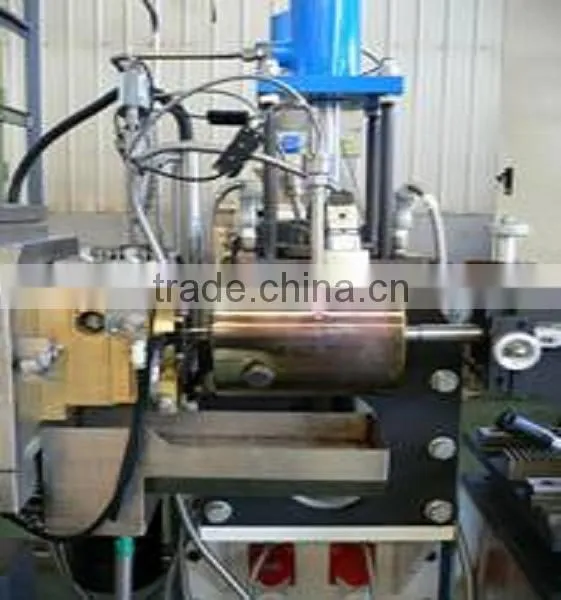

1. The Extruder:
2. Dripper input and inlaid:
