Double-cone rotary vacuum dryer is the newest dryer which combines mixing and drying functionsDouble-cone rotary vacuum dryer
Summary:
Double cone rotary vacuum dryer is the newest dryer which combines mixing and drying functions. By matching the condenser, vacuum pump and dryer, a vacuum dryer unit is formed.(if there is no solvent recovery, condenser can be removed). This dryer is of develop design, simple inner structure and easy of cleaning, complete discharging of materials and easy of operation. It can reduce the labor strength and improve the workplace conditions. Meanwhile, because of the rotary motion,there is no accumulation of materials on the wall, so the heat transfer coefficient is high and drying rate is large, which can save the energy and make the materials drying evenly and of good quality.
It is widely used in the material drying in pharmacy, chemical, food,dye, etc. and meet the requirement of “GMP”.
Double cone rotary vacuum dryer is suitable for vacuum drying and mixing of powder/granule in pharmacy, chemical, food. Etc.
Especially, it is suitable for:
1. Heat sensitive materials;
2.Readily oxidizable and dangerous materials;
3.Materials requires solvent and toxic gas recovery;
4.Materials requires very low content of residual volatiles;
5.Materials with crystal shape is required.

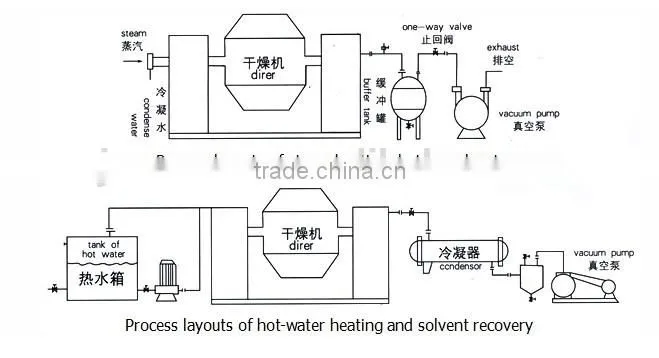

Flow diagram:
Technical parameter:
|
Model Item |
100 |
350 |
500 |
750 |
1000 |
1500 |
2000 |
3500 |
4500 |
In-tank volume L |
100 |
350 |
500 |
750 |
1000 |
1500 |
2000 |
3500 |
4500 |
Loading volume L |
≤50 |
≤175 |
≤250 |
≤375 |
≤500 |
≤750 |
≤1000 |
≤1750 |
≤2250 |
Rotating speed rpm |
3~13 |
||||||||
motor power kw |
0.75 |
1.1 |
1.5 |
2 |
3 |
3 |
4 |
5.5 |
7.5 |
Land area L×W |
2160×800 |
2260×800 |
2350×800 |
2560×1000 |
2860×1300 |
3060×1300 |
3260×1400 |
3760×1800 |
3960×2000 |
Rotating height mm |
1750 |
2100 |
2250 |
2490 |
2800 |
2940 |
2990 |
3490 |
4100 |
in-tank designed pressure |
-0.1~0.15Mpa |
||||||||
Design pressure |
≤0.3MPa |
||||||||
Working temperature |
In-tank≤85C jacket≤140C |
||||||||
the type & power of vacuum pump when condenser is used |
2X-15A 2KW |
2X-30A 2KW |
2X-30A 3KW |
2X-30A 3KW |
2X-70A 5.5 KW |
JZJX3000-4 7 KW |
JZJX600-8 11 KW |
JZJX600-4 20.5 KW |
2X15A 2KW |
the type & power of vacuum pump without condenser used |
SK-0.4 1.5KW |
SK-0.4 1.5KW |
SK-0.8 2.2KW |
SK2.7B 4KW |
SK2.7B 4KW |
SK-3 5.5KW |
SK-6 11KW |
SK-6 11KW |
SKW-9 15KW |
Weight kg |
800 |
1100 |
1200 |
1500 |
2800 |
3300 |
3600 |
6400 |
7500 |
