Product description

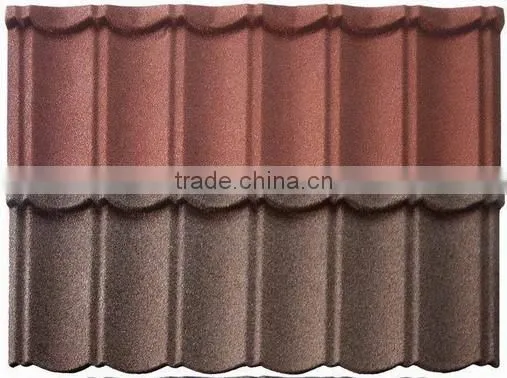

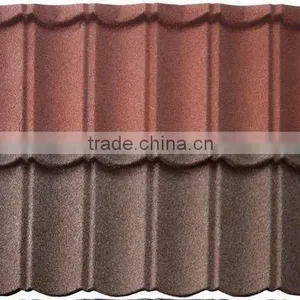

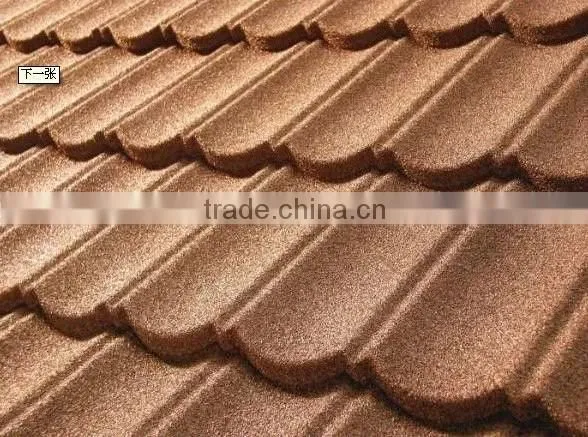

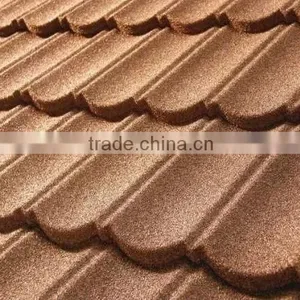

Building material stone coated aluzinc roofing sheet made from Zn-Al galvanized steel (galvalume steel) and painted with colorful stone chips, the main tiles and the accessories are made up of the stone chip coated metal roofing system, this roofing system is popular all over the world.
Soncap certificate step tile building material
1.Durability : Nine layers for wather resistance.
2. Economical efficiency: 1/6 the weight of ceramic rooftile. Easy to carry and install; lighter framing required.
3. Variety of colors: As with Daedong ceramic rooftile, you can select the color that best matches your building.
4. Covers existing asphalt shingles without removal. Can replace slab and slat roofs easily.
5. Simple installation: can be installed on any type of building, even skyscrapers, at angles from 12
to 90 degrees.
We are not trading company, we are the export department of Linyi Jinhu factory.
Which specialized in stone coated zinc roofing sheet for years.
Feel free to contact with me, keen-wang
Mobile:86-18265128833
Skype:wangguangjun404
You are welcome to visit our factory any time
Concept
1). Greater thermal comfort for improved energy efficiency and on-going, cost savings.
2). Lightweight-just one twentieth the weight of concrete.
3). Increased durability.
4). Aesthetic appearance.
5). Qick to install.
6). Paint will not crack, fade or peel.
7). Watertight without requirement for water membrance.
8). Resistance to strong winds
9). Low maintenance.
Product Characteristics
Types of Soncap certificate step tile building material

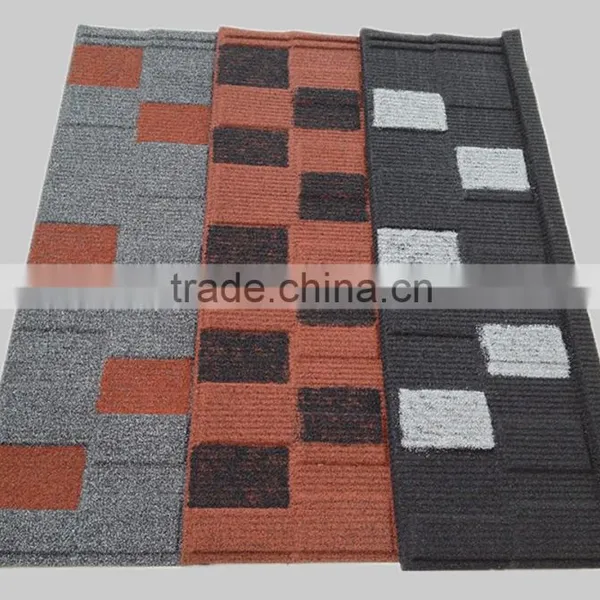

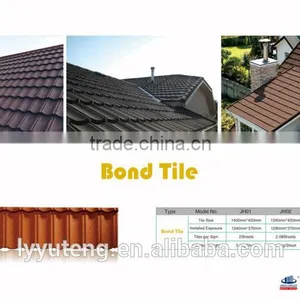

Classical Tile,Modern Classical Tile,Rainbow Tile,Shinfle Tile,Makuti

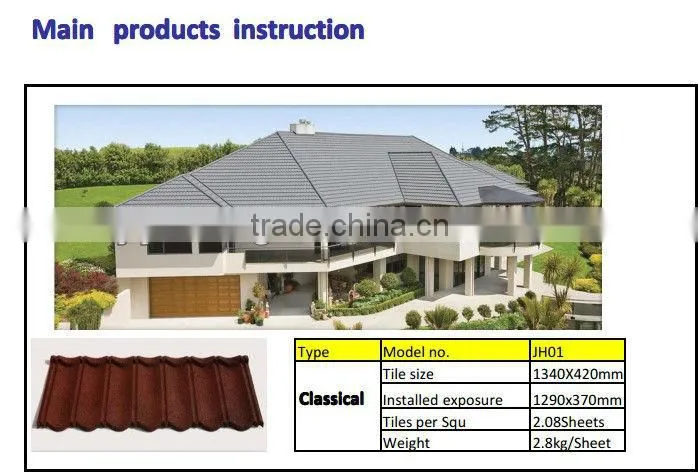

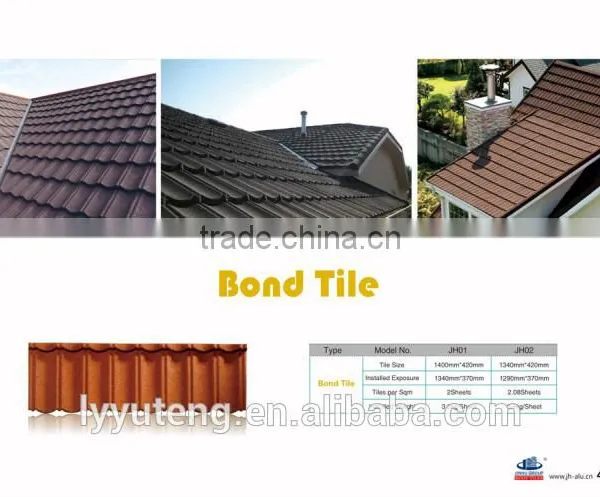

Grained Tile:

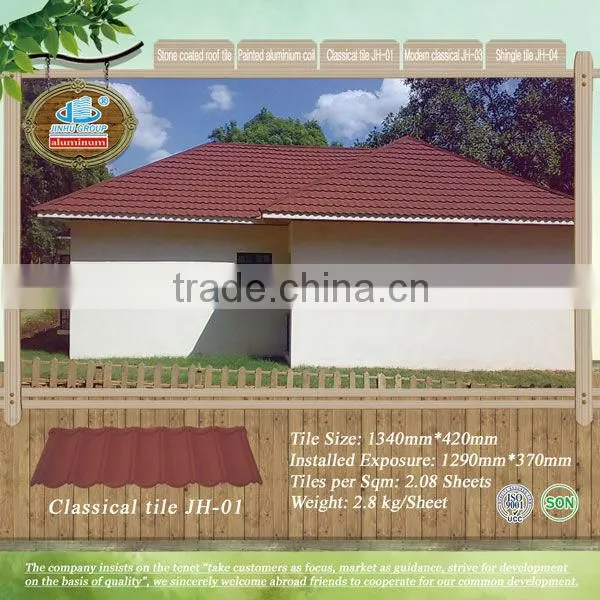

| Model No. | JH01 | JH02 |
| Tile size | 1400mm*420mm | 1340mm*420mm |
| Installed Exposure | 1350mm*370mm | 1290mm*370mm |
| Tiles per Sqm | 2sheets | 2.08Sheets |
| Installed Weight | 3.0kg/Sheet | 2.8kg/Sheet |
| Quantity in 20FCL | 8000PCS | 9000PCS |
Main physiochemical index of Soncap certificate stone coated step tiles roofing sheet 1.Water resistance:After 24h test without anomalies
2.Heat resistance:No abnormalities after 90°C*5 test
3..Low temperture resistance:After -40°C*24h test without anomalies
4.Alkaline resistance:After 48h test without anomalies
5.Acid resistance:After 48h test without anomalies
6.Resistance salt spry:After 240h test without anomalies
7.Cycle of freezing and thawing:After 20 times test without anomalies
8.Artificial weathering:After 1000h test without anomalies
Soncap certificate step tile building material
stone coated steel roofing tiles | |
1 Raw material of Colorful stone coated metal roofing | |
(1) |
Galvalume steel sheet 0.40mm |
(2) |
Colorful stone chips |
2 Size of Colorful stone coated metal roofing | |
(1) overall size |
1340mm*420mm |
(2) valid size |
1290mm*370mm |
3 Acreage of Colorful stone coated metal roofing | |
(1) acreage per tile |
0.4826SQM |
(2)tiles per square meter |
2.08pcs |
4 Weight of Colorful stone coated metal roofing | |
(1) weight per tile |
2.8KG |
(2) weight per square meter |
5.6KG |
5 Packing and loading of Colorful stone coated metal roofing | |
(1) package |
500-600pcs/package |
(2) loading |
9000pcs/20ft container with accessories |
6 Color of Colorful stone coated metal roofing | |
(1) normal color |
Red; red black; teak; coffee; green; dark green; charcoal black; weathered brown; grey; sapphire. |
(2) special color |
Can be produced as request |
7 Advantage of Colorful stone coated metal roofing | |
(1) Aesthetic: |
Two models: flat tile and circular tile, 10 optional colors. Archaize appearance, Chinese style. |

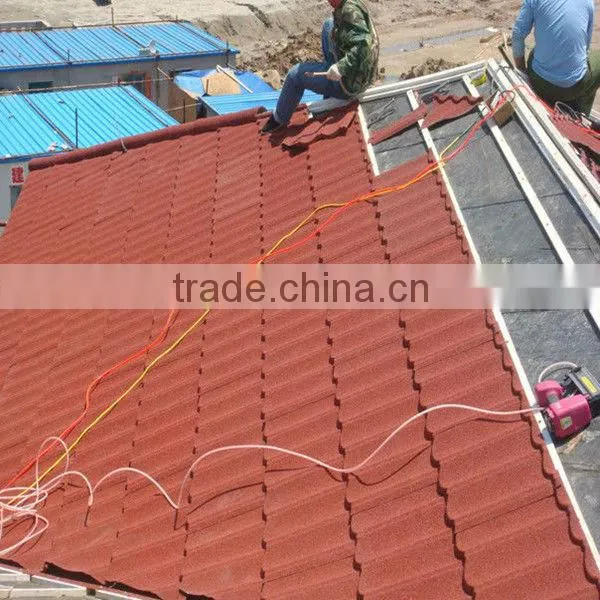

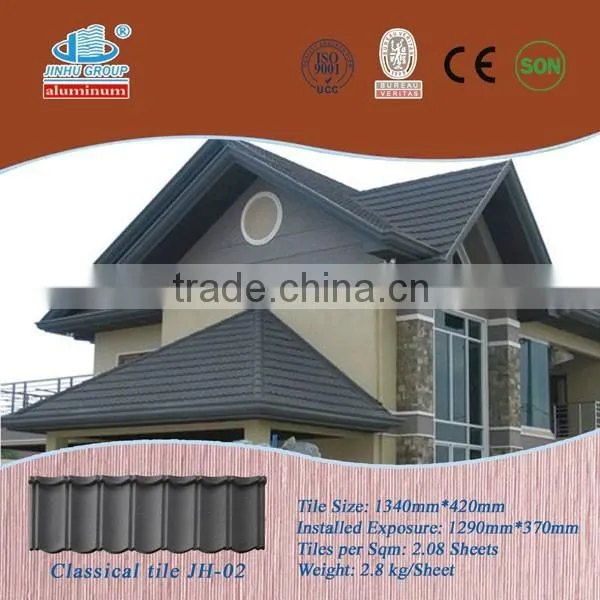

Application examples

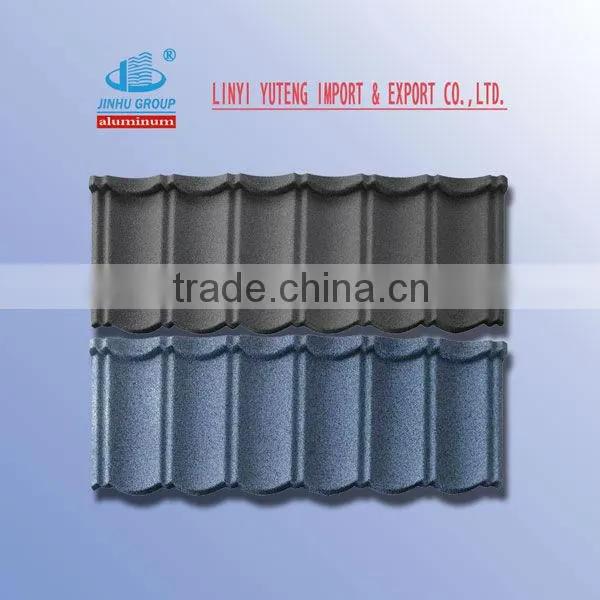

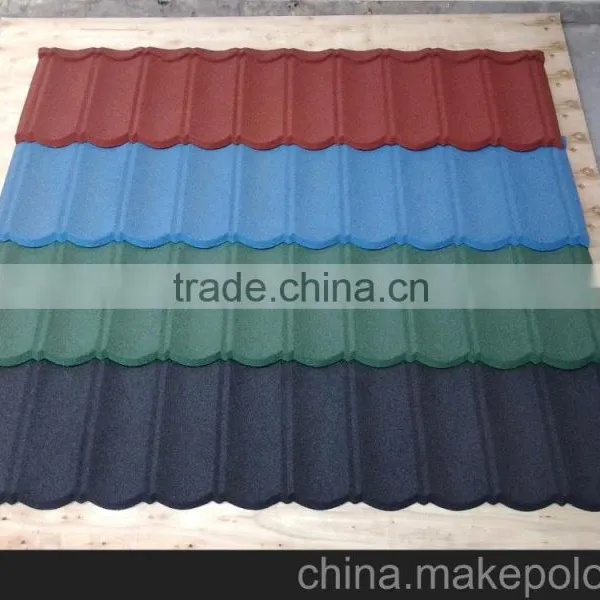

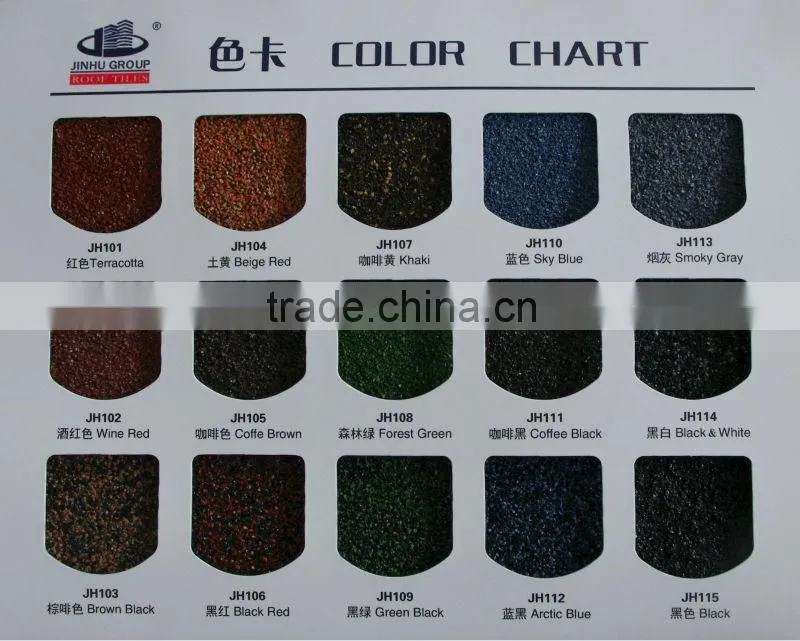

Color Variation(15 colors)

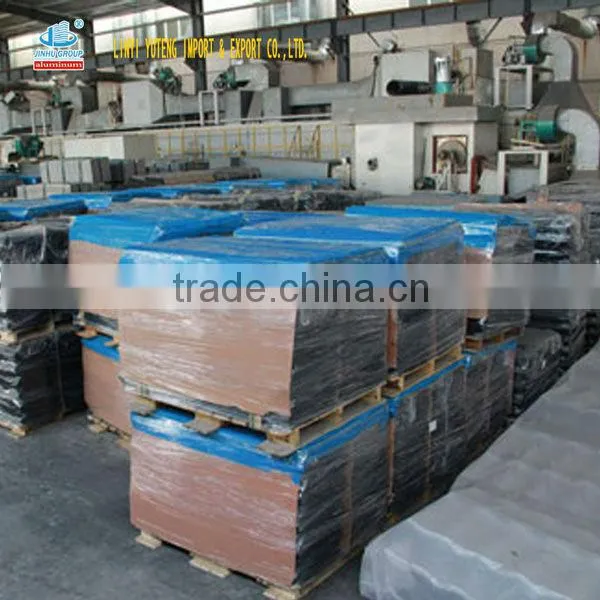

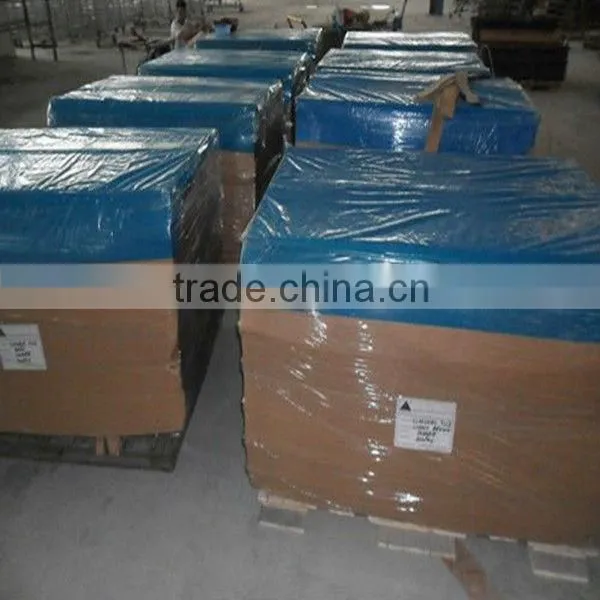

Packing
To all buyers and architects
The most popular stone coated roofing sheet with aluzinc coated
1). Greater thermal comfort for improved energy efficiency and on-going, cost savings.
2). Lightweight-just one twentieth the weight of concrete.
3). Increased durability.
4). Aesthetic appearance.
5). Qick to install.
6). Paint will not crack, fade or peel.
7). Watertight without requirement for water membrance.
8). Resistance to strong winds
9). Low maintenance.
Certificate of Soncap easy install stone coated zink roofing tiles
