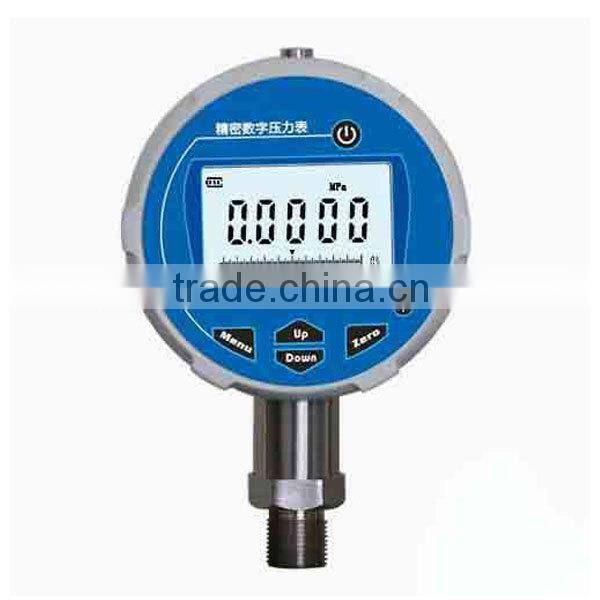

YTN-63H Radial Direction Digital Pressure Gauge Standard Specification
| Standard Executive | GB/T1226-2001 |
| Ambient Temperature | -5℃~+60℃ |
| Range Available | -30"Hg~0 (vacuum) -30"Hg~0~200psi (compound) 0 ~ 15psi ~ 10000psi (pressure) |
| Bourdon Tube |
Stainless steel 30"Hg~800psi C-Type, 800 psi to 6000 psi Coil-Type |
| Dials & pointer |
Aluminum White background, Black or black and red lettering. With customer logo is available |
| Diameter | 100mm, 150mm; 160mm |
| Connection |
Stainless steel 1/4" for 2.5"(63mm); 1/2" for 4"((100mm); 6"(150mm) |
| Thread | BSP , BSPT, NPT |
| Window | Instrument plain glass, safety glass |
| Accuracy | ±1.6% of full scales for 2.5"(63mm), ±1.0% of full scales for 4"(100mm),6"(150mm) |
| Note: The above can be optioned and customized. | |
To get the pressure gauge quotation, pls provide the information as follows:
1.The size of pressure gauge what you need.
2.The measurement range of pressure gauge what you need.
3. The material of pressure gauge what you need.
4. The measurement of pressure gauge's connector thread.
What's the bussiness scope of our company?
Our company mainly supply:
1. cng compressor
2. compressor spare parts
3. complete equipments for cng filling station, such as cooling tower,desulfurizing tower,dispensor,control panel,etc.
Our company also undertake the construction of cng station

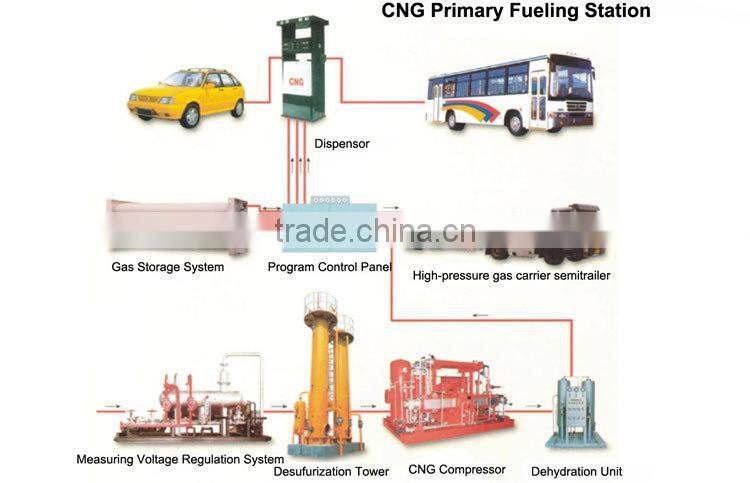

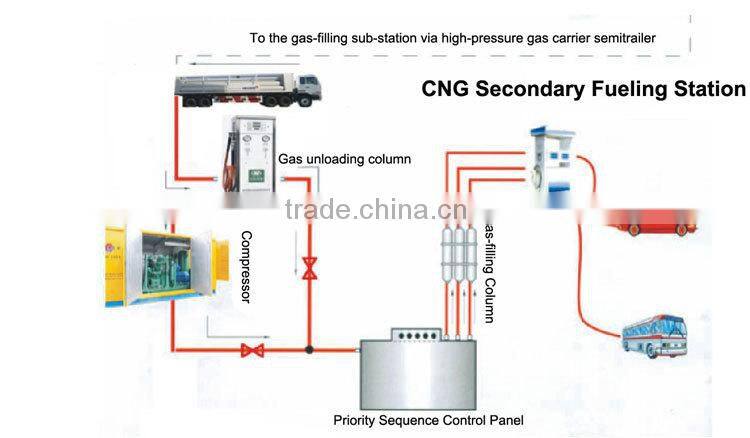

CNG Filling Station Flow chart
|
D-Type CNG Compressor Specifications | |||||||
| Product Model | Service Substance | Capacity | Inlet Pressure | Discharge Pressure | Outline Dimensions | Motor Power | Motor Voltag |
| (Nm³/h) | (MPa) | (MPa) | LxWxH | (KW) | (V) | ||
| D-1.2/10-250 | Gas | 750 | 1.0 | 25.0 | 4000×2700×1500 | 110 | 380 |
| D-1.8/10-250 | Gas | 1100 | 1.0 | 25.0 | 4500×3000×1500 | 160 | 380 |
| D-2.7/12-250 | Gas | 2000 | 1.2 | 25.0 | 4500×3000×1500 | 315 | 380 |
| D-2.3/14-250 | Gas | 1950 | 1.4 | 25.0 | 4500×3000×1500 | 280 | 380 |
| D-1.9/15-250 | Gas | 1700 | 1.5 | 25.0 | 4500×3000×1500 | 220 | 380 |
| D-2.3/16-250 | Gas | 2200 | 1.6 | 25.0 | 4500×3000×1500 | 315 | 380 |

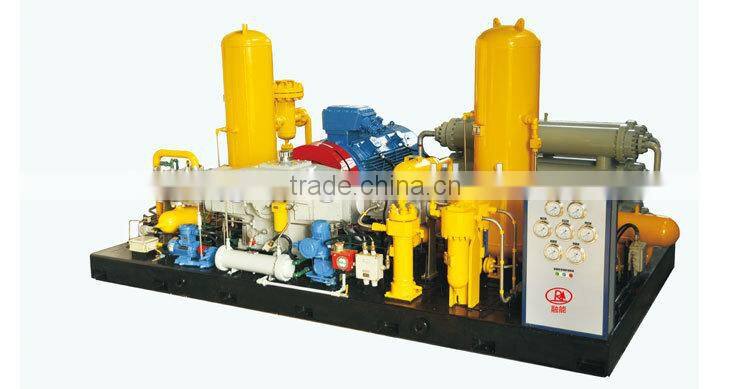

Product Photo
To get quotation about compressor,pls tell us:
1. inlet pressure, discharge pressure?
2. requirement for the capacity of the gas flow?
3. The voltage and frequency range in local?

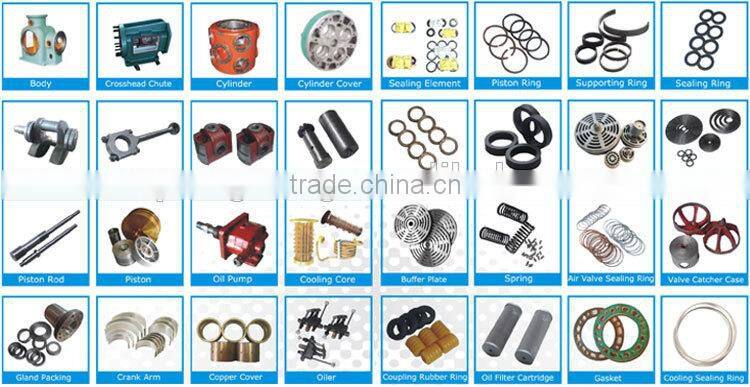

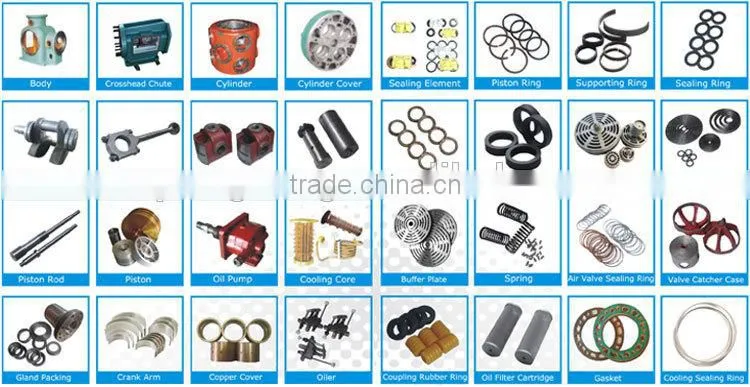

Spare Parts for Compressor
To get quotation about the parts,pls tell us:
1. Compressor brand,Such as:CCF,Jinxing,Tianchen,Tongda,etc.
2. Compressor model is needed, eg:ZW-5.0/1-250C-JX
3. The spare parts figure No.:such as JX3Z08A2102, or pls provide the drawings.

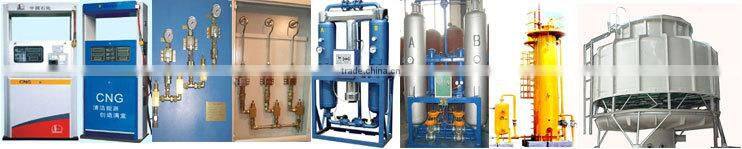

Other complete equipments for CNG station
If any needed, pls feel free to contact us!
maintanence Picture for customer
Pls contact us if any needed for this kind of services.

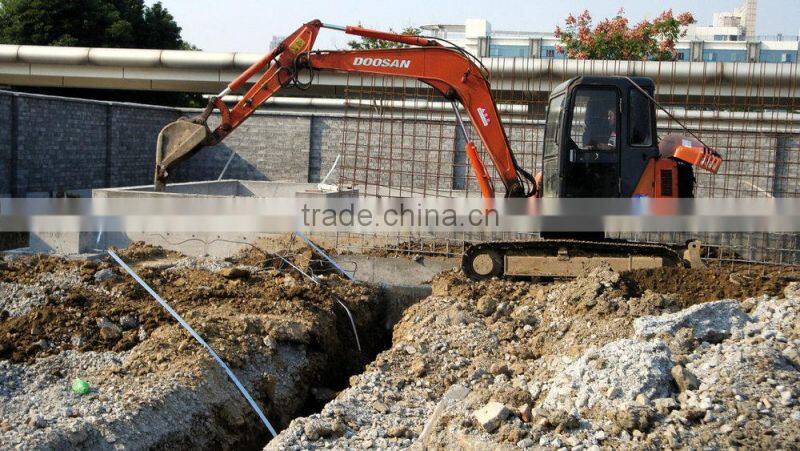

CNG Filling Station Construction Picture
Our customers
2. Customers specifying freight forwarders or negotiable shipping methods!
3. Delivery Time: 3-7 days for samples; 20-45 days for batch goods.
1. Payment: T/T, Western Union, MoneyGram; 30% deposits; 70% balance before delivery.
2. MOQ: 1pcs
3. Warranty : 1 years
| Why Choose Us? |
|
1.Professional service Our factory has been manufacturing CNG,LNG compressors and the accessories for over 10 years, We provide clients with natural gas solution package including designation, installation, commissioning, training and consultancy. We are a capable and reliable source of supplying CNG refueling station equipment, CNG mother and daughter station equipment, CNG conversion kits, CNG cylinders, CNG generator sets and related CNG equipment. 2.Competive price we always quote best price with good quality products to our clients for long term business relations. 3.Good quality can be assured Choose good raw material, all kinds of our products through Strict quality controlor tested one by one before shippment, the quality can be 4.Strong packing As we all know, the product packages are troublesome in foreign business ,our company ships the products in wooden cases to ensure good condition on arrival.So our packing is strong enough to withstand bumping and handing under normal conditions. |
How to contact us
If you are interested in our YTN-63H Radial Direction Digital Pressure Gauge, please feel free to contact me!
