Stainless Steel 5hp Submersible Pump
US$ 356 - 2,996
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Milestone
Model Number:
HS
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Hebei, China
Brand Name
Milestone
Model Number
HS
Theory
Centrifugal Pump
Structure
Single-stage Pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, Electric
Pressure
High Pressure
Application
Other, Water/Sewage
Specifications
Stainless steel 5hp submersible pump1. Flow: 2.7-1500 l/s
2. Head: 3-118 m
3. Power: 15-1200 kw
ISO9001 2008
Stainless steel 5hp submersible pump
Specifications
Stainless steel 5hp submersible pump is submersible pump especially suitable for the delivery of rubbish containing solid particles and other waste water.
Features
- Large flow non-clog hydraulic components, which greatly improve the passing capacity of waste water
- Double channel series mechanical seal made of hard anticorrosive tungsten carbide, which is durable and wear resistant
- There is oily water probe in the oil chamber, ensuring the safety of pump when the mechanical seal worn after long use
- Float switch is functioned to automatically control the start and stop of pump according to the water level changing
- Control panel can be fitted to monitor water leakage, overload and over-temperature, thus to ensure the safety of the pump
- Fixed automatic coupling installation or movable installation available
Application
It is widely used in municipal engineering, buildings, industrial sewage discharge, and sewage treatment in environmental protection to deliver wastewater, rainwater containing solid particles and fiber.
Type meaning
Working conditions
- Medium temperature: less than 60°C; gravity 1.0~1.3kg/m³; pH value between 5~9
- For pump without internal gravity flow circulation cooling system, its motor reveals above liquid surface by less than 1/3
| Model No. | Caliber | Capacity | Head | Power | Speed | Eff. |
| mm | m3/h | m | KW | r/min | % | |
| 25WQ-22-1.1 | 25 | 8 | 22 | 1.1 | 2900 | 38.5 |
| 32WQ-15-1.1 | 32 | 12 | 15 | 1.1 | 2900 | 40 |
| 40WQ-15-1.5 | 40 | 15 | 15 | 1.5 | 2900 | 45.1 |
| 40WQ-30-2.2 | 40 | 15 | 30 | 2.2 | 2900 | 48 |
| 50WQ-7-0.75 | 50 | 20 | 7 | 0.75 | 2900 | 54 |
| 50WQ-10-0.75 | 50 | 10 | 10 | 0.75 | 2900 | 56 |
| 50WQ-15-1.5 | 50 | 20 | 15 | 1.5 | 2900 | 55 |
| 50WQ-25-2.2 | 50 | 15 | 25 | 2.2 | 2900 | 56 |
| 50WQ-30-3 | 50 | 18 | 30 | 3 | 2900 | 58 |
| 50WQ-32-5.5 | 50 | 25 | 32 | 5.5 | 2900 | 53 |
| 50WQ-40-7.5 | 50 | 20 | 40 | 7.5 | 2900 | 55 |
| 65WQ-15-2.2 | 65 | 25 | 15 | 2.2 | 2900 | 52 |
| 65WQ-13-3 | 65 | 37 | 13 | 3 | 2900 | 55 |
| 65WQ-30-4 | 65 | 25 | 30 | 4 | 2900 | 58 |
| 65WQ-40-7.5 | 65 | 30 | 40 | 7.5 | 2900 | 56 |
| 65WQ-50-11 | 65 | 35 | 50 | 11 | 2900 | 60 |
| 65WQ-60-15 | 65 | 35 | 60 | 15 | 2900 | 63 |
| 80WQ-7-2.2 | 80 | 40 | 7 | 2.2 | 1450 | 52 |
| 80WQ-13-3 | 80 | 43 | 13 | 3 | 2900 | 50 |
| 80WQ-15-4 | 80 | 40 | 15 | 4 | 2890 | 57 |
| 80WQ-25-7.5 | 80 | 65 | 25 | 7.5 | 2900 | 56 |
| 100WQ-10-4 | 100 | 80 | 10 | 4 | 1450 | 62 |
| 100WQ-10-5.5 | 100 | 110 | 10 | 5.5 | 1450 | 66 |
| 100WQ-15-7.5 | 100 | 100 | 15 | 7.5 | 1450 | 67 |
| 100WQ-20-7.5 | 100 | 85 | 20 | 7.5 | 1450 | 68 |
| 100WQ-25-11 | 100 | 100 | 25 | 11 | 1450 | 65 |
| 100WQ-30-15 | 100 | 100 | 30 | 15 | 1450 | 66 |
| 100WQ-35-18.5 | 100 | 100 | 35 | 18.5 | 1450 | 65 |
| 125WQ-15-11 | 125 | 130 | 15 | 11 | 1450 | 62 |
| 125WQ-20-15 | 125 | 130 | 20 | 15 | 1450 | 63 |
| 150WQ-9-7.5 | 150 | 145 | 9 | 7.5 | 1450 | 63 |
| 150WQ-15-15 | 150 | 180 | 15 | 15 | 1450 | 65 |
| 150WQ-20-18.5 | 150 | 180 | 20 | 18.5 | 1450 | 75 |
| 15WQ-25-22 | 150 | 180 | 25 | 22 | 1450 | 76 |
| 150WQ-30-22 | 150 | 130 | 30 | 22 | 1450 | 75 |
| 150WQ-30-30 | 150 | 180 | 30 | 30 | 1450 | 73 |
| 150WQ-30-37 | 150 | 200 | 30 | 37 | 1450 | 70 |
| 200WQ-7-11 | 200 | 300 | 7 | 11 | 980 | 73 |
| 200WQ-11-15 | 200 | 250 | 11 | 15 | 980 | 74 |
| 200WQ-10-22 | 200 | 400 | 10 | 22 | 1450 | 76 |
| 200WQ-13-30 | 200 | 400 | 13 | 30 | 1450 | 73 |
| 200WQ-15-18.5 | 200 | 250 | 15 | 18.5 | 1450 | 72 |
| 200WQ-15-22 | 200 | 300 | 15 | 22 | 1450 | 73 |
| 200WQ-22-30 | 200 | 250 | 22 | 30 | 1450 | 71 |
| 200WQ-25-37 | 200 | 350 | 25 | 37 | 1480 | 75 |
| 200WQ-30-45 | 200 | 400 | 30 | 45 | 1480 | 70 |
| 250WQ-9-30 | 250 | 600 | 9 | 30 | 980 | 74 |
| 250WQ-12-37 | 250 | 600 | 12 | 37 | 1450 | 78 |
| 250WQ-15-45 | 250 | 600 | 15 | 45 | 1450 | 75 |
| 250WQ-20-55 | 250 | 600 | 20 | 55 | 1450 | 73 |
| 250WQ-25-75 | 250 | 600 | 25 | 75 | 1450 | 73 |
| 250WQ-12-45 | 250 | 800 | 12 | 45 | 980 | 76 |
| 300WQ-15-45 | 300 | 500 | 15 | 45 | 980 | 70 |
| 300WQ-15-55 | 300 | 800 | 15 | 55 | 980 | 73 |
| 300WQ-20-55 | 300 | 600 | 20 | 55 | 980 | 75 |
| 300WQ-20-75 | 300 | 800 | 20 | 75 | 980 | 78 |
| 300WQ-20-90 | 300 | 950 | 20 | 90 | 980 | 80 |
| 300WQ-25-110 | 300 | 1000 | 25 | 110 | 980 | 82 |
| 350WQ-10-55 | 350 | 1100 | 10 | 55 | 980 | 84.5 |
| 350WQ-15-90 | 350 | 1500 | 15 | 90 | 980 | 82.5 |
| 350WQ-18-90 | 350 | 1200 | 18 | 90 | 980 | 83.1 |
| 350WQ-28-132 | 350 | 1100 | 28 | 132 | 740 | 83.2 |
| 350WQ-36-160 | 350 | 1000 | 36 | 160 | 740 | 78.5 |
| 350WQ-10-75 | 400 | 1500 | 10 | 75 | 980 | 82.1 |
| 400WQ-15-132 | 400 | 2000 | 15 | 132 | 740 | 85.5 |
| 400WQ-22-160 | 400 | 1700 | 22 | 160 | 740 | 82.1 |
| 400WQ-26-160 | 400 | 1500 | 26 | 160 | 740 | 83.5 |
| 400WQ-30-200 | 400 | 1700 | 30 | 200 | 740 | 83.5 |
| 400WQ-32-250 | 400 | 1800 | 32 | 250 | 740 | 82.1 |
Curves of WQ series

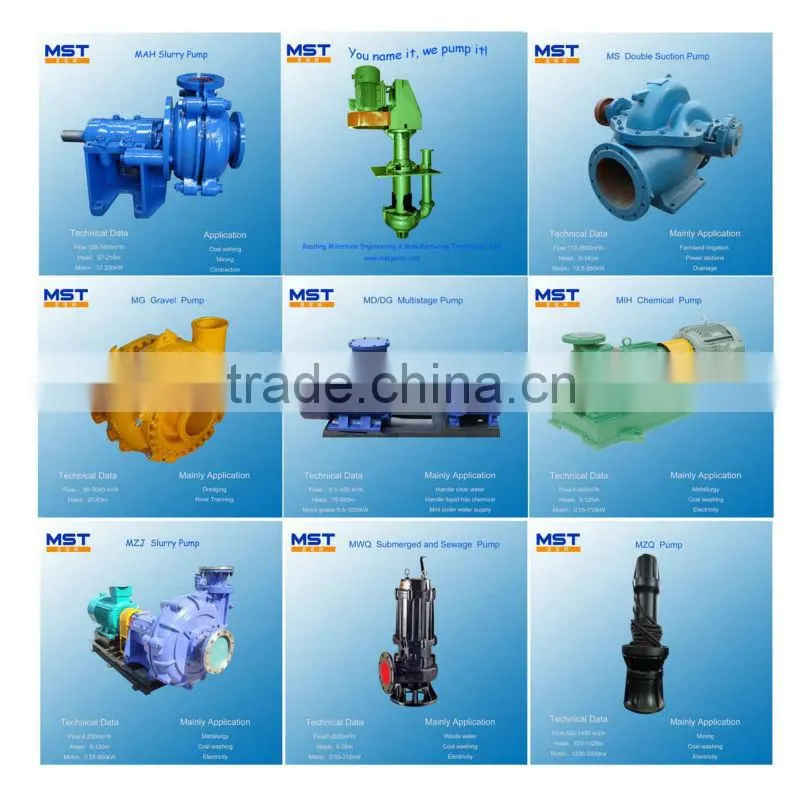

Other pumps
Who we are?
- 20 years experience of manufacture with 5 years oversea service.
- Advanced equipment with qualified engineers.
-

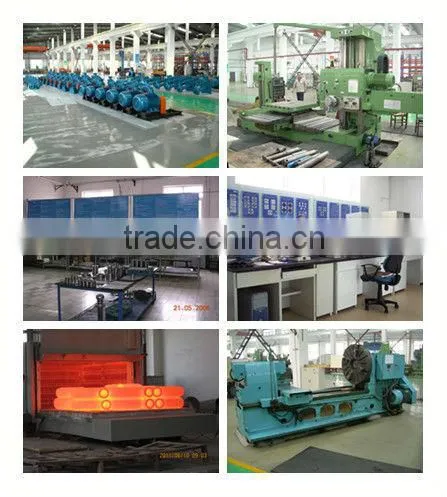

Large foundry to control excellent quality
