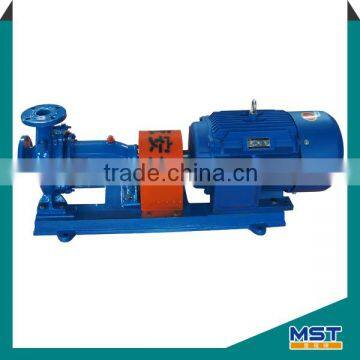

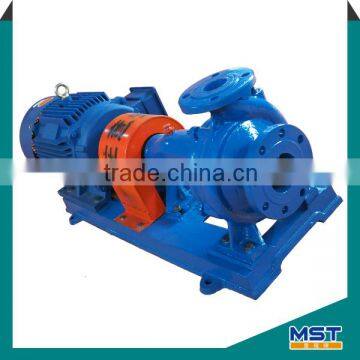

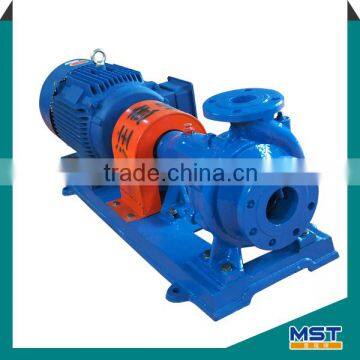

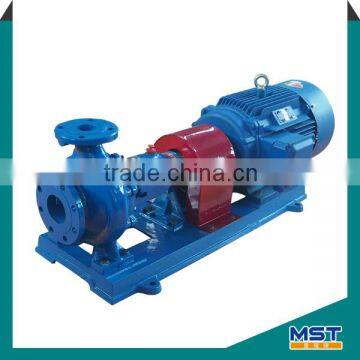

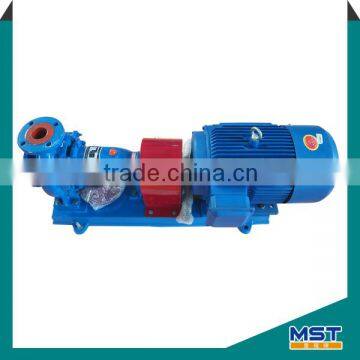

ISR Single Stage High Temperature Circulating Pump
US$ 755 - 12,996
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Milestone
Model Number:
IS
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/ Qingdao/ Shanghai/Guangzhou/As customer required
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Small Small Hot Water Circulating PumpUS$ 875 - 1,798MOQ: 1 Set -
Large Flow Centrifugal Water Pump GlandUS$ 2,310 - 3,965MOQ: 1 Set
-
Small China Electric Water Transfer PumpsUS$ 2,310 - 3,965MOQ: 1 Set
-
Double Acting Electric Hydraulic PumpUS$ 699 - 22,996MOQ: 1 Set
-
High Pressure Boiler Feed Pump MotorUS$ 755 - 12,587MOQ: 1 Set
Place of Origin
Hebei, China
Brand Name
Milestone
Model Number
IS
Theory
Centrifugal Pump
Structure
Single-stage Pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, Electric
Pressure
High Pressure
Application
Sewage
ISR single stage high temperature circulating pump
Product Description
1.Breif introduction of ISR single stage high temperature circulating pump
IS&ISR Agriculture irrigation system centrifugal horizontal water pump handle clean water and the liquid of which physical and chemical properties are similar to clean water. It is used for industrial and city clean water supply and drainage, irrigation, fire protection, long distance water supply, metallurgy, chemical, textile, china processing, pigment, paper making, etc.(IS:temperature not exceeding 80 degree celcius ,ISR: temperature lessnot exceeding than 150degree celcius)
2.Construction Drawing of ISR single stage high temperature circulating pump
3.Performance curve of water pump:
Clean water performance of ISR single stage high temperature circulating pump:
| Model | Flow | Lift head | Rotation speed | Motor power | Diameter(mm) | Diameter(mm) |
| (m3/h) | (m) | (r/min) | (kw) | Suction | Outlet | |
| IS50-32-125 | 12.5 | 20 | 2900 | 2.2 | 50 | 32 |
| 6.3 | 5 | 1450 | 0.55 | 50 | 32 | |
| IS50-32-160 | 12.5 | 32 | 2900 | 3 | 50 | 32 |
| 6.3 | 8 | 1450 | 0.55 | 50 | 32 | |
| IS50-32-200 | 12.5 | 50 | 2900 | 5.5 | 50 | 32 |
| 6.3 | 12.5 | 1450 | 0.75 | 50 | 32 | |
| IS50-32-250 | 12.5 | 80 | 2900 | 11 | 50 | 32 |
| 6.3 | 20 | 1450 | 1.5 | 50 | 32 | |
| IS65-50-125 | 25 | 20 | 2900 | 3 | 65 | 50 |
| 12.5 | 5 | 1450 | 0.55 | 65 | 50 | |
| IS65-50-160 | 25 | 32 | 2900 | 5.5 | 65 | 50 |
| 12.5 | 8 | 1450 | 0.75 | 65 | 50 | |
| IS65-40-200 | 25 | 50 | 2900 | 7.5 | 65 | 40 |
| 12.5 | 12.5 | 1450 | 1.1 | 65 | 40 | |
| IS65-40-250 | 25 | 80 | 2900 | 15 | 65 | 40 |
| 12.5 | 20 | 1450 | 2.2 | 65 | 40 | |
| IS65-40-315 | 25 | 125 | 2900 | 30 | 65 | 40 |
| 12.5 | 32 | 1450 | 4 | 65 | 40 | |
| IS80-65-125 | 50 | 20 | 2900 | 5.5 | 80 | 65 |
| 25 | 5 | 1450 | 0.75 | 80 | 65 | |
| IS80-65-160 | 50 | 32 | 2900 | 7.5 | 80 | 65 |
| 25 | 8 | 1450 | 1.5 | 80 | 65 | |
| IS80-50-200 | 50 | 50 | 2900 | 15 | 80 | 50 |
| 25 | 12.5 | 1450 | 2.2 | 80 | 50 | |
| IS80-50-250 | 50 | 80 | 2900 | 22 | 80 | 50 |
| 25 | 20 | 1450 | 3 | 80 | 50 | |
| IS80-50-315 | 50 | 125 | 2900 | 37 | 80 | 50 |
| 25 | 32 | 1450 | 5.5 | 80 | 50 | |
| IS100-80-125 | 100 | 20 | 2900 | 11 | 100 | 80 |
| 50 | 5 | 1450 | 1.5 | 100 | 80 | |
| IS100-80-160 | 100 | 32 | 2900 | 15 | 100 | 80 |
| 50 | 8 | 1450 | 2.2 | 100 | 80 | |
| IS100-65-200 | 100 | 50 | 2900 | 22 | 100 | 65 |
| 50 | 12.5 | 1450 | 4 | 100 | 65 | |
| IS100-65-250 | 100 | 80 | 2900 | 37 | 100 | 65 |
| 50 | 20 | 1450 | 5.5 | 100 | 65 | |
| IS100-65-315 | 100 | 125 | 2900 | 75 | 100 | 65 |
| 50 | 32 | 1450 | 11 | 100 | 65 | |
| IS125-100-200 | 200 | 50 | 2900 | 45 | 125 | 100 |
| 100 | 12.5 | 1450 | 7.5 | 125 | 100 | |
| IS125-100-250 | 200 | 80 | 2900 | 75 | 125 | 100 |
| 100 | 20 | 1450 | 11 | 125 | 100 | |
| IS125-100-315 | 200 | 125 | 2900 | 110 | 125 | 100 |
| 100 | 32 | 1450 | 15 | 125 | 100 | |
| IS125-100-400 | 100 | 50 | 1450 | 30 | 125 | 100 |
| IS150-125-250 | 200 | 20 | 1450 | 18.5 | 150 | 125 |
| IS150-125-315 | 200 | 32 | 1450 | 30 | 150 | 125 |
| IS150-125-400 | 200 | 50 | 1450 | 45 | 150 | 125 |
| IS200-150-250 | 400 | 20 | 1450 | 37 | 200 | 150 |
| IS200-150-315 | 400 | 32 | 1450 | 55 | 200 | 150 |
| IS200-150-400 | 400 | 50 | 1450 | 90 | 200 | 150 |
