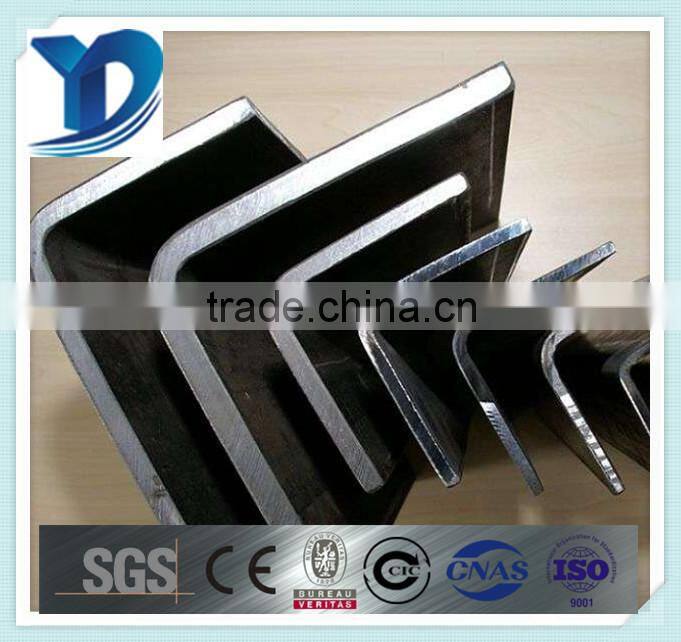

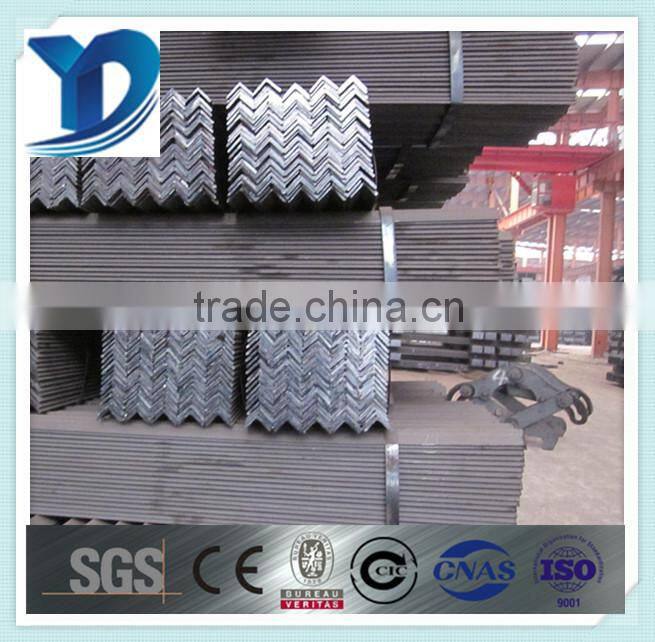

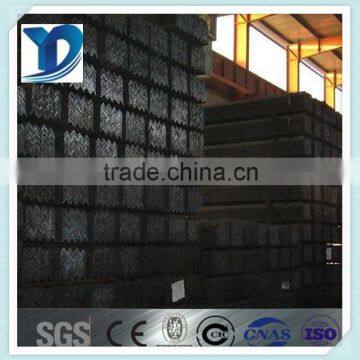

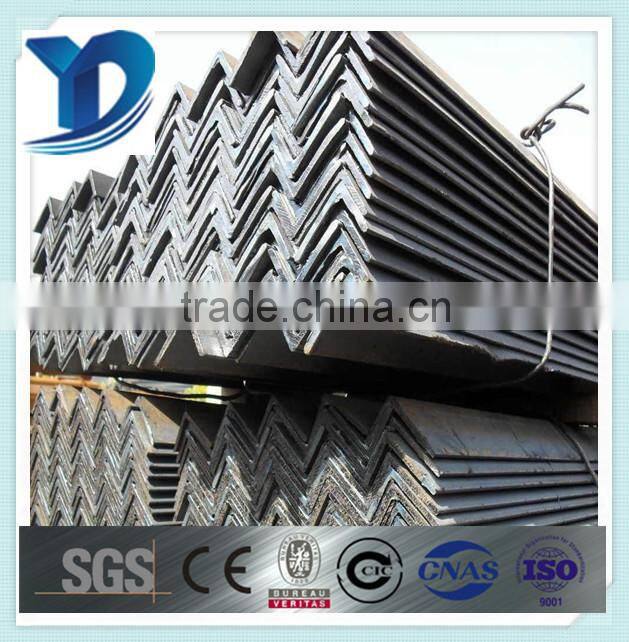

Steel Angle Bar Standard Length, SS400,S235JR,A36,ST37,Q235,Q345.
- XINGANG CHINA
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Standard | AISI, ASTM, BS, DIN, GB, JIS | Dimensions | 15*15mm-250*250mm | |
| Grade | Other, SS400,S235JR,A36,ST37,Q235,Q345 | Place of Origin | Hebei, China | |
| Brand Name | YD | Model Number | 0087 | |
| Type | Equal | Application | construction and engineering |
Product Description
Outline:
1.Width:15-250mm
2.Thickness:2.0-25mm
3.Length:5.8-12m
4.Grade:SS400,A36,Q235,Q345,S235JR,ST37,etc.
Below with the concrete spec:
Size(mm) |
| Theoretic weight (kg/m) | Size(mm) |
| Theoretic weight (kg/m) |
20*20*3 | 3 | 0.885 | 80*80*8 | 8 | 9.55 |
25*25*3 | 3 | 1.12 | 90*90*6 | 6 | 8.25 |
30*30*3 | 3 | 1.36 | 90*90*7 | 7 | 7.35 |
30*30*4 | 4 | 1.78 | 90*90*8 | 8 | 109 |
30*30*5 | 5 | 2.16 | 90*90*9 | 9 | 12.2 |
38*38*3 | 3 | 1.72 | 90*90*10 | 10 | 13.3 |
38*38*4 | 4 | 2.26 | 100*100*6 | 6 | 9.22 |
40*40*3 | 3 | 1.83 | 100*100*7 | 7 | 10.7 |
40*40*4 | 4 | 2.41 | 100*100*8 | 8 | 12.1 |
40*40*5 | 5 | 2.95 | 100*100*9 | 9 | 13.5 |
50*50*3 | 3 | 2.33 | 100*100*10 | 10 | 14.9 |
50*50*4 | 4 | 3.06 | 100*100*12 | 12 | 17.8 |
50*50*5 | 5 | 3.77 | 120*120*8 | 8 | 14.7 |
50*50*6 | 6 | 4.43 | 120*120*10 | 10 | 18.2 |
70*70*5 | 5 | 5.37 | 120*120*12 | 12 | 21.5 |
70*70*6 | 6 | 6.38 | 130*130*9 | 9 | 17.9 |
70*70*7 | 7 | 7.35 | 130*130*10 | 10 | 19.7 |
75*75*5 | 5 | 5.76 | 130*130*12 | 12 | 23.4 |
75*75*6 | 6 | 6.85 | 150*150*10 | 10 | 22.9 |
75*75*7 | 7 | 7.94 | 150*150*12 | 12 | 27.3 |
75*75*8 | 8 | 8.92 | 150*150*15 | 15 | 33.6 |
75*75*9 | 9 | 9.96 | 200*200*15 | 15 | 45.3 |
80*80*6 | 6 | 7.32 | 200*200*20 | 20 | 59.7 |
80*80*7 | 7 | 8.48 | 200*200*24 | 24 | 71.1 |
Africa,Southeast Asia,Middle east,South America are our main market:

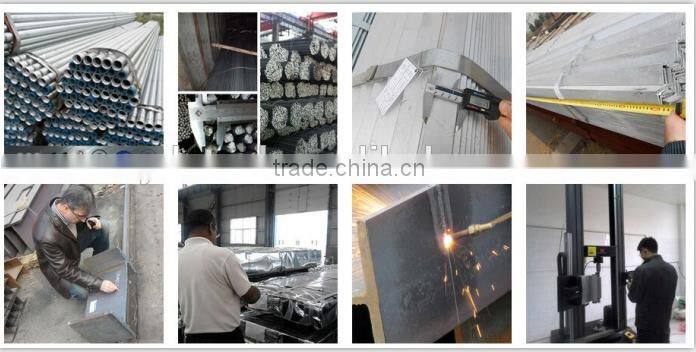

Quality Control:
With Customers:

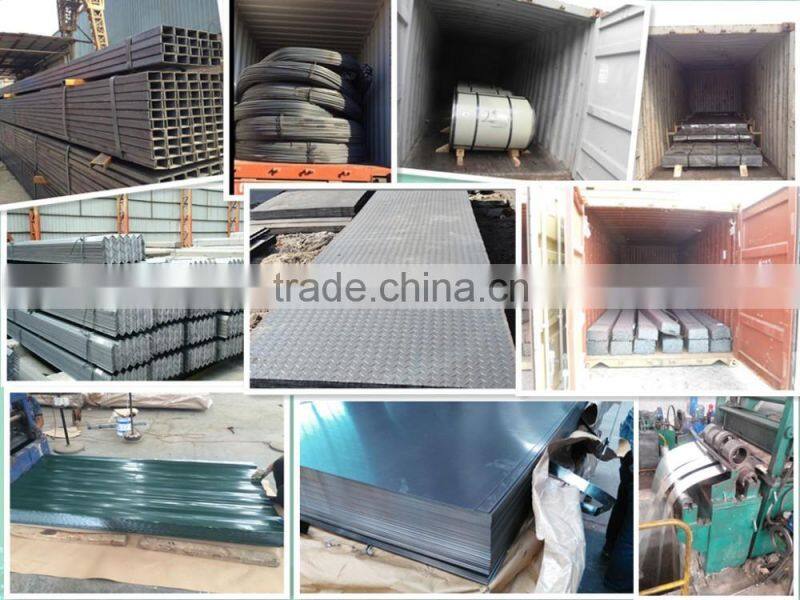

Other related steel material;
