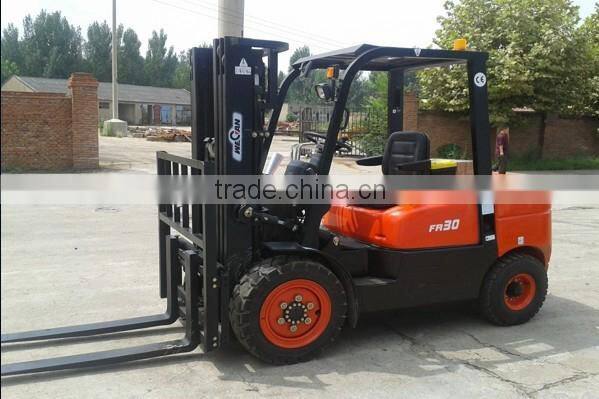

CPCD30FR Diesel Forklift Truck 3 Tons

CPCD30FR Diesel Forklift Truck 3 Tons thumbnail-1
CPCD30FR Diesel Forklift Truck 3 Tons photo-1
US$ 1 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HUALI
Contact Supplier Request Quote Chat Now
Linyi Huali Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name HUALI
Model Number CPCD30FR
Type Other, Diesel forklift truck
Power Souce Diesel Engine
Rated Loading Capacity 3 tons
Max. Lifting Height 3000 mm
Min. Lifting Height 80mm
Fork Length 1200 mm
Fork Width 125mm
Overall Dimensions 3790*1228*2110 mm
Certification ISO9001/BV, ISO9001/CE
After-sales Service Provided Overseas service center available

Specifications

CPCD30FR diesel forklift truck 3 tons
1,2stage 3M Mast
2,Hydraulic transmission (Auto)
3,1.22M fork, China Engine 37Kw

CPCD30FR diesel forklift truck 3 tons



2stage 3M Mast, Hydraulic transmission (Automatic),

1.22M fork, China Engine 490BPG,37Kw

ISUZU ENGINE and yanmar engine OPTIONAL EUR 2 and EUR 3 standard optional

Penumatic tyre, Maintenance Free Battery.

Seat with safety belt & steady bar Warning light



Packing details: 2 pcs/20’Container; 4 pcs/40’Container



MODEL

CPCD 30FR

Load capacity  kg

3000

Load center  mm

500

Power type

Diesel

Max.lifting speeds(with load) mm/s

400

Max.Driving speeds(with without load) km/h

18/20

Max.Towing(with without load) kN

14.5/9.8

Gradeability(with/without load) %

15/20

Lifting height mm

3000

Free lift  mm

80

Tilting angles(forward-backward)

6/12

Min.turning radius mm

2450

Min.right angle aisle width  mm

2110

Min.under-clearance mm

135

Dimensions

Overall length mm

3790

Overall width mm

1228

Overall height(mast lowered)  mm

2110

Overall height(mast extend)  mm

4250

Overall height to overhead guard  mm

2090

Fork overhang mm

494

Wheel base mm

1700

Tread Tyre

Front tread mm

1000

Front tread mm

970

Front tread

289-15

Front tread

6.50-10

Total weight kg

4320

Fork width mm

125

Fork thickness mm

45

Backrest height mm

1195

Fork length mm

1200

Engine

Engine model

A490BPG

Rate power KW

37

Ratate Speed At Rate Power rpm

2650

Max.torque Nm

148

Rotate speed at max torque rpm

1800-1900

Type of power shift

Clutch

Tor-con(Hydraulic)

CPCD30FR diesel forklift truck 3 tons
