Specifications

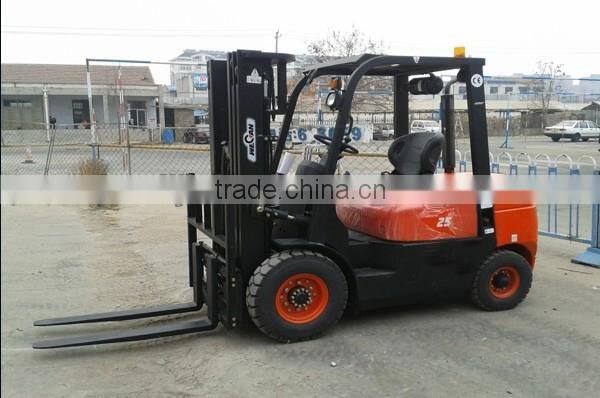

CPCD25FR diesel forklift truck 2.5 tons1,2stage 3M Mast
2,Hydraulic transmission Automatic
3,1.07M fork, China Engine 37kw
CPCD25FR diesel forklift truck 2.5 tons
2stage 3M Mast, Hydraulic transmission (Automatic), 1.07M fork,
China Engine 490BPG,Pneumatic tyre, Seat with safety belt & steady bar
Warning light
MODEL | CPCD 25FR | ||
Load capacity kg | 2500 | ||
Load center mm | 500 | ||
Power type | Diesel | ||
Max.lifting speeds(with load) mm/s | 400 | ||
Max.Driving speeds(with without load) km/h | 17/19 | ||
Max.Towing(with without load) kN | 14.5/8.3 | ||
Gradeability(with/without load) % | 15/20 | ||
Lifting height mm | 3000 | ||
Free lift mm | 60 | ||
Tilting angles(forward-backward) | 6/12 | ||
Min.turning radius mm | 2240 | ||
Min.right angle aisle width mm | 2080 | ||
Min.under-clearance mm | 110 | ||
Dimensions | Overall length mm | 3495 | |
Overall width mm | 1160 | ||
Overall height(mast lowered) mm | 2095 | ||
Overall height(mast extend) mm | 4060 | ||
Overall height to overhead guard mm | 2095 | ||
Fork overhang mm | 451 | ||
Wheel base mm | 1640 | ||
Tread Tyre | Front tread mm | 970 | |
Front tread mm | 970 | ||
Front tread | 7.00-12 | ||
Front tread | 6.00-9 | ||
Total weight kg | 3620 | ||
Fork width mm | 122 | ||
Fork thickness mm | 40 | ||
Backrest height mm | 1000 | ||
Fork length mm | 1070 | ||
Engine | Engine model | A490BPG | |
Rate power KW | 37 | ||
Ratate Speed At Rate Power rpm | 2650 | ||
Max.torque Nm | 148 | ||
Rotate speed at max torque rpm | 1800-1900 | ||
Type of power shift | Clutch | Tor-con(Hydraulic | |
