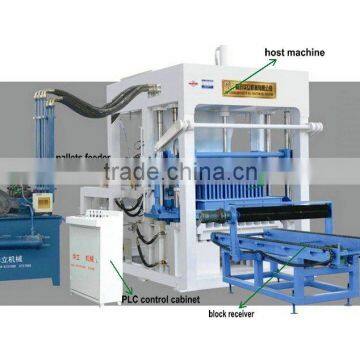

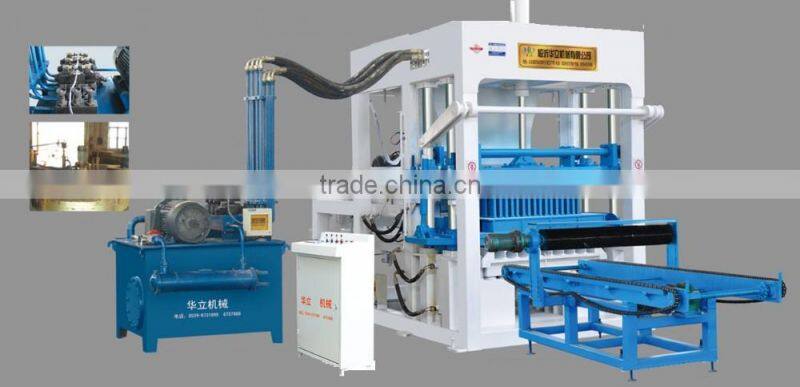

Pavement brick making machine price QT4-15B
Brief introduction
1 For this model of machine,the frequency conversion control is adopted. All its speeds and pressures can be ajustable, so the operation machine is smooth and steady; the impacts and noises are reduced and the stability of the equipment is increased.
2 The main sections and parts are treated by carburizing so that they are sturdy and wear resisting,and the cost in vulneral parts are decreased.
3 The main parts of its electrical appliances and hydraulic system are imported so that the service life of the machine has been increased.
4 The trouble warning system : Displaying the guidance and indications in maintenance and in trouble-shooting in time, in order to avoid any unnecessary loss.
Main technical specifications
| Overall Size | 3000*2200*2600mm |
| Auxiliary Machine | 15-20s |
| Carrier Size | 935*580*20/25mm |
| Weight | 8.5T |
| Rated Power | 24kw |
| Vibration Force | 60kn |
| Vibration Frequency | 2850/min |
| Mixer Model | JS500 |
QT4-15 Main Materials and applied products
| Raw Material | crushed stone,sand,cement,dust and coal fly ash, slag,gangue, grvel expanded perlite and other industrial wastes. |
| Applied Products | Hollow block, Solid block and paver,interlocking block |
| Workshop Area | 200-300 m2 |
| Workers | 4 or 5 |
| Ratio of raw material | cement 8%-10% sand 30%-40% stone:50%-60%, about cement :sand : stone is 1:4:5. |
Block Sample
Application
Grass land blocks series, application examples for porous concrete block (as shown in the picture)
Capacity of products
| Item | Specification(L*W*H) | Quantity per hour(pcs) | PCS/Mould |
| Concrete Block | 390*190*190 | 640-720 | 4 |
| Solid Block | 240*115*53 | 3800-4500 | 26 |
| Porous Block | 240*115*90 | 1900-2250 | 14 |
Pressure of different products
| Hollow Block | 8-10 Mpa |
| Solis Block | 10-12 Mpa |
| Pavers and Interlocking Brick | 12-15 Mpa |
Terms & Conditions
1. Fast shipping from our Linyi factory.
2.Delivery time :15-20 working days after receive deposit.
3.Shipping Cost: Depending on the brick machine size and weight of total order.
4. FOB/CIF/CNF
5. B/L will be sent after delivery.
6. Payment Term: 30% deposit,70% balance by T/T, Western Union or Money-Gram etc.
Warranty Period: One year after installation finished at buyer's factory.
More about us
As a manufacturer in China, Huali Machinery has exported different kinds of brick making machines to Africa,South-east Asia,Middle East and South America with competitive price. We offer a comprehensive range of block making machines and accessories to meet the individual needs of each customer. The company can react to different market demands with a large selection of concrete stone machinery on many levels of production output and level of automation using high technology and best quality equipments. With competent advice and high – quality machines and spare parts, the company will provide you with everything from one single source. We offer complete manual , semi automatic and fully automated systems that guarenties an economical production of many different concrete products.
We are not only the manufacturer ,we wish to supply you with our professional advice and products and welcome to our factory in China !
If you have any question,please don't hesitate to contact us.
