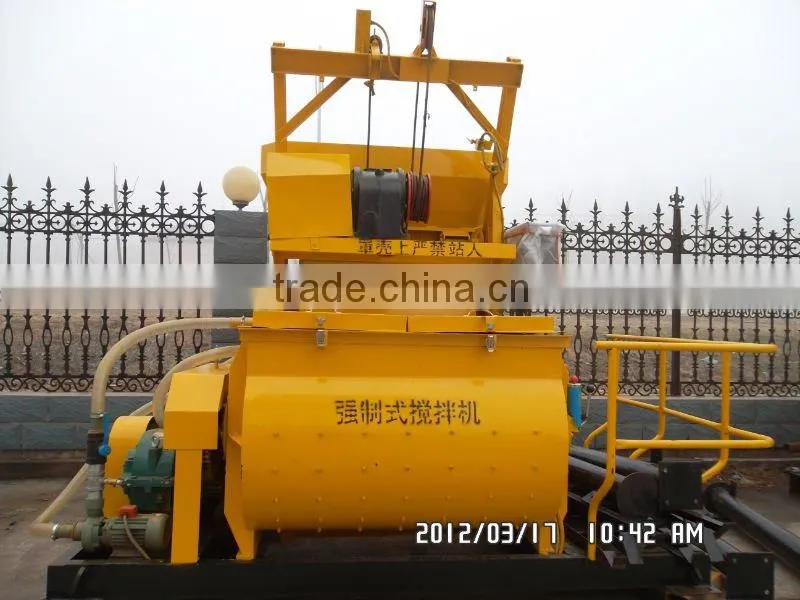

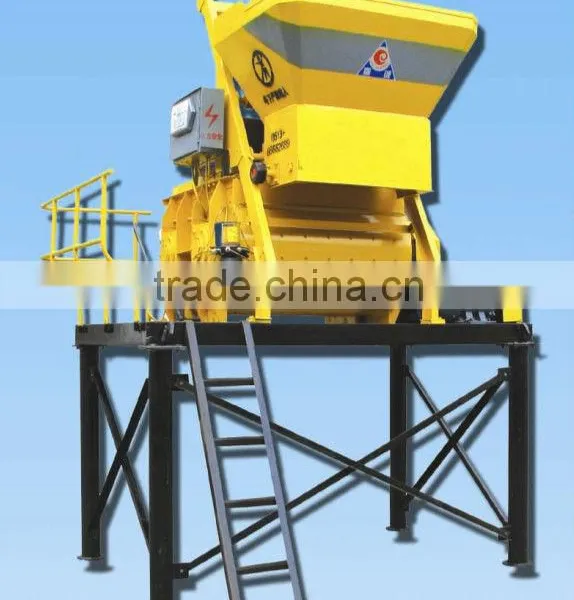

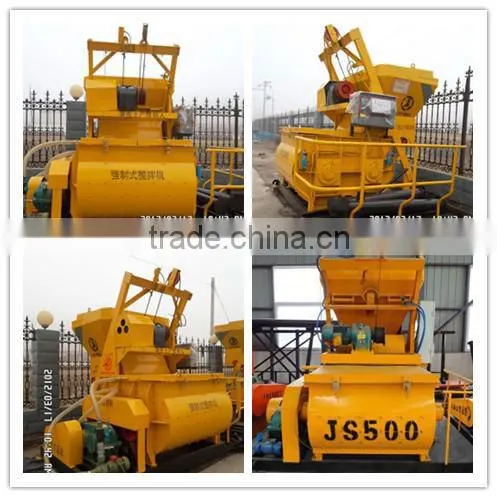

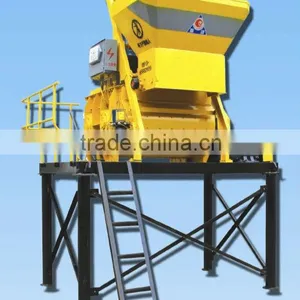

JS750 twin shaft concrete mixer machine

Specifications

JS750 twin shaft concrete mixer machine
1.Discharging volume:1200L.
2.Charging volume:7500L.
3.Productivity:37.5m3/h.

JS750 twin shaft concrete mixer machine





JS750 twin shaft concrete mixer is a dual horizontal shafts concrete mixer, which can independently work, form the simple concrete mixing plant, together with PLD series concrete batchers, and also supply the matching  mainframe for the batching plant, applicable to various large, middle, and the small factory for prefabrication, and highway, bridge, irrigation works, dock and other industries and civil construction works. It can mix the hard concrete, plastic concrete, fluid concrete, light aggregate concrete, and various mortars.





 Main technical of JS750 twin shaft concete mixer machine



Name		Parameters
Type		JS750
Feed Capacity(L)		1200L
Discharge Capacity(L)		750L
Maximum Productivity(m3/h)		37.5 m3/h
Maximum Aggregate Size		80/60mm

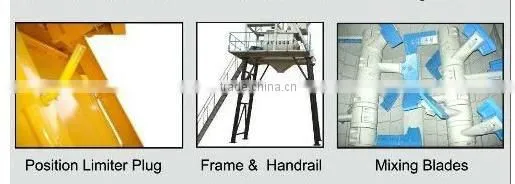

Mixing Blades	Rotation Speed	32.6r/min
	Number	7×2
Stirring Motor	Type	Y200L-4(B3)
	Power(kw)	30kw
Lifting Motor	Type	YEZ41-4
	Power(kw)	7.5KW
Pump Motor	Type	65DWB35-5
	Power(kw)	1.5kw
The Average Rate of Hopper Movement		0.3m/s
Unload Material Height		1500mm
Overall Dimension	Transporting Status	3636×2805×2895mm
