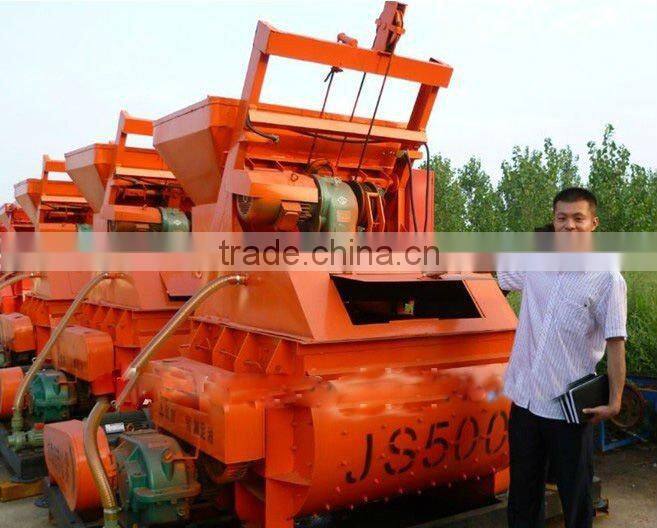

JS500 Concrete Mixer

JS500 Concrete Mixer thumbnail-1
JS500 Concrete Mixer photo-1
US$ 1 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HUALI
Contact Supplier Request Quote Chat Now
Linyi Huali Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name HUALI
Model Number JS500
Motor Power 25.1kw
Mixing Power 18.5kw
Charging Capacity 800L
Reclaiming capacity 500L
Speed of Mixing Drum 35r/min
Water Supply Mode auto
Working Cycle Period 2min
Discharge Way Mechanical or electric operation
Outline Dimension 1.93*2.94*4.4m
After-sales Service Provided Engineers available to service machinery overseas

Specifications

JS500 Concrete Mixer
1.Large capacity, high efficiency
2.Low energy consumption
3.Little noise
4,low price with good

 JS500 Concrete Mixer





Specification of mixer  JS 500

Model

JS500

Output capacity

500L

Input capacity

800L

Capacity

≥25m3/h

Max aggregate size

80/60mm

Agitating  vane

RPM

35r/min

Quantity

2*7

Mixer motor

Model

Y180m-4

Power

18.5kw

Windless motor

Model

YEZ1325-4-B5

Power

5.5kw

Water pump motor

Model

50DWB20-8A

Power

7.5kw

Hopping lifting speed

18m/min

Over size

Transporting position

3050*2300*2680mm

Working position

4461*3050*5225mm

Weight

4000kg

Unloading height

1500mm





2. Brief Introduction:



JS500 concrete mixer is dual horizontal shaft concrete mixer.

The machine can be Applicable to large, medium and small precast concrete products factory

and roads, railways, bridges, water conservancy, civil construction project.

and it can mix dry and hard concrete, plastic concrete, light aggregate concrete and all kind of

mortar.

It is one kind of high efficiency, widely used construction machinery

 JS500 Concrete Mixer

JS500 Concrete MixerJS500 Concrete MixerJS500 Concrete Mixer
