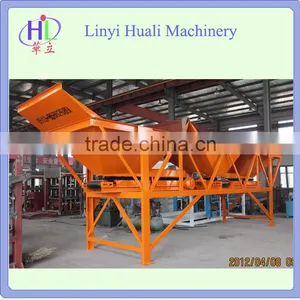

Batching Machine of Block Making Machine

Name: Batching Machine of Block Making Machine
Brand: Huali
SKU: 132045571
Availability: InStock

US$ 1 - 6,000 MOQ: 1 Set

Key Specifications

Condition:

New

Power Type:

Electric

Place of Origin:

Shandong, China

Linyi Huali Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Power Type Electric

Place of Origin Shandong, China

Brand Name Huali

Model Number PLD1200

Power(W) 15kw

Dimension(L*W*H) 12000*2200*2500mm

Weight 4500kgs

Certification ISO9001/BV

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Batching machine of block making machine
1.Accurate and reliable weighing
2.Well-dosed and efficient mixing
3.Easy operatio

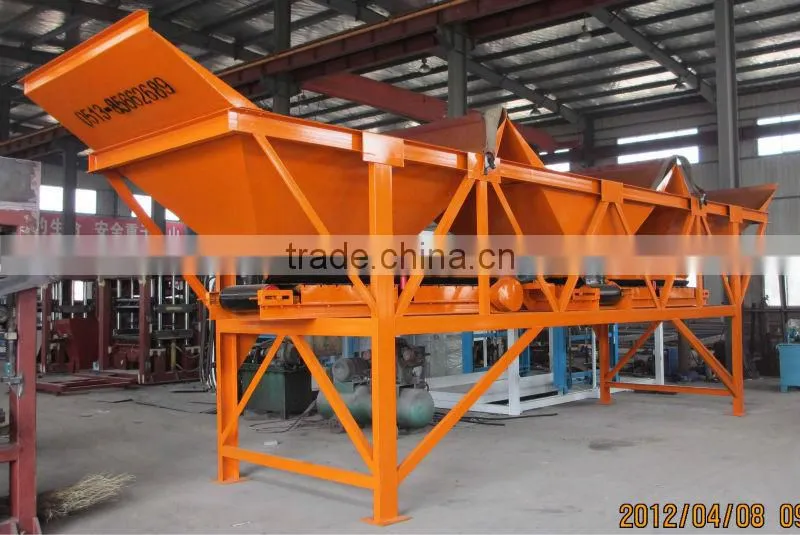

Batching machine of block making machine

PLD series concrete batching machine is a new kind of aggregate batcher.It is widely applied for construction sites,

roads, bridges ,etc. Equipped with a lifting hopper or belt conveyor , it can batch materials for concrete mixers.

The adoption of weight control instrument and sensor in the weighting system, it suppliesaggregates or concrete

with certain weight and percentage as well as fixing the fall automatically.

With compact structure, easy operation, precise batching, it is your best choice!

Specificaitons of concrete batch plant

Model	PLD800	PLD1200	PLD1600	PLD2400
Cubage of weighing hopper	800L	1200L	1600L	2400L
Cubage of storage hopper	1500L×2	2500L×3	3000L×3	6000L×3
Rate of production	48m3/h(dry materials)	56m3/h(dry materials)	75m3/h(dry materials)	120m3/h(dry materials)
Accuracy of batching	±1%	±1%	±1%	±1%
Max weighing value	2000kg	3000kg	3000kg	4000kg
Batchable species of aggregate	2 kinds	2-3 kinds	3-4 kinds	3-6 kinds
Feeding height	2400mm	3000mm	3000mm	3200mm
Speed of belt conveyor	1m/s	1m/s	1m/s	1.6m/s
Power	3×3=9kw	3×4=12kw	3×4+5.5=17.5kw	22kw
Total weight	2450kg	4500kg	5600kg	7850kg
Dimension	5600×1830 ×2700mm	9000×2200×3500mm	9500×2500×3600mm	10328× 3650× 4122mm
