Home > Products > Concrete Mixer&Batching Plant > block machine mixer JS500 concrete mixer

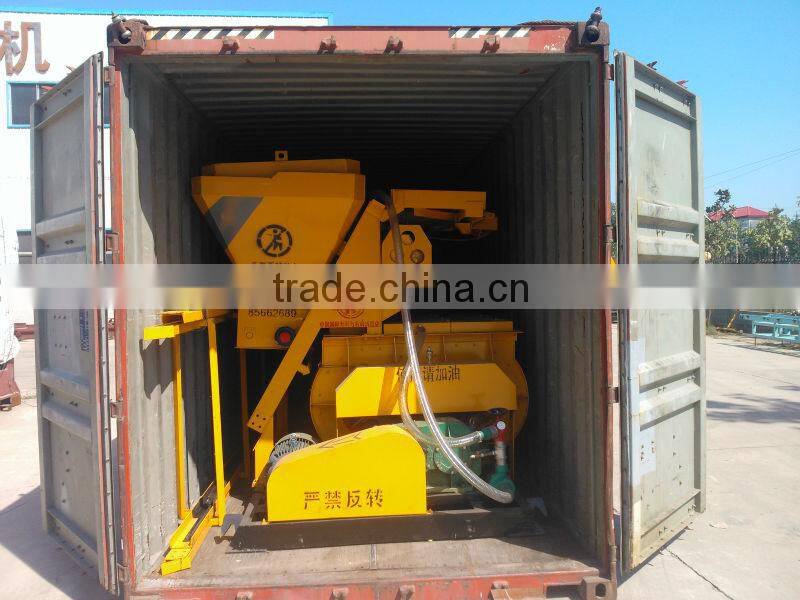

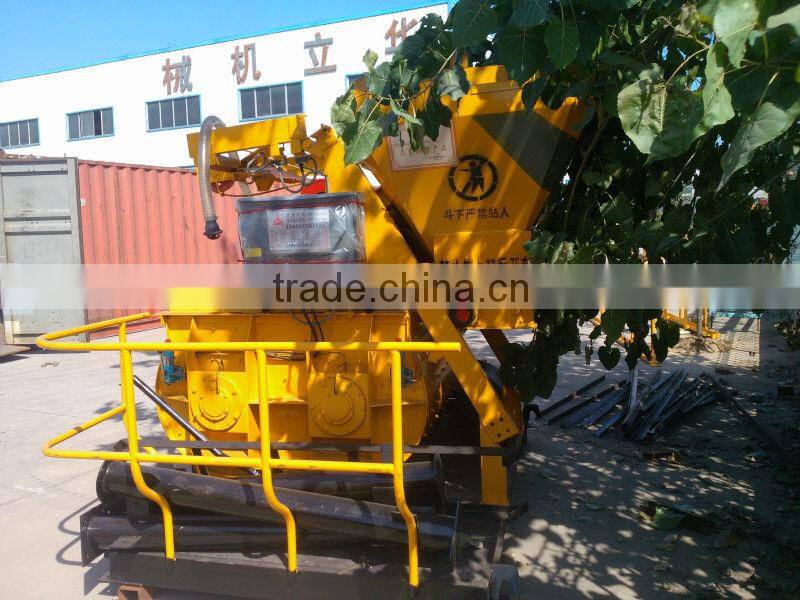

block machine mixer JS500 concrete mixer
- 100 Set / Sets per Month
- China Qingdao Port
- T/T
- SHANTUI JANEOO Double horizontal shaft concrete mixer JS3000
- JS500 DOUBLE HORIZONTAL SHAFTS FORCED CONCRETE MIXER
- simple operation js series large scale 3000l high quality concrete mixer for sale
- stand bucket electrical 3000l concrete mixer in concrete batching plant
- good design complete concrete mixer plant with hopper on market
- powerful electric concrete mixer js3000 the manufacturer direct to sell
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | HUALI |
Model Number: | JS500 | Motor Power: | 25.1kw | Mixing Power: | 18.5kw |
Charging Capacity: | 800L | Reclaiming capacity: | 500L | Speed of Mixing Drum: | 35r/min |
Water Supply Mode: | auto | Working Cycle Period: | 2min | Discharge Way: | Mechanical or electric operation |
Outline Dimension: | 1.93*2.94*4.4m | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
block machine mixer JS500 concrete mixer1,ISO9001/BV certifications
2.little noice good working performance
block machine mixer JS500 concrete mixer
Specification of JS500 mixer
Output capacity | 500L | ||
Input capacity | 800L | ||
Capacity | ≥25m3/h | ||
Max aggregate size | 80/60mm | ||
Agitating vane | RPM | 35r/min | |
Quantity | 2*7 | ||
Mixer motor | Model | Y180m-4 | |
Power | 18.5kw | ||
Windless motor | Model | YEZ1325-4-B5 | |
Power | 5.5kw | ||
Water pump motor | Model | 50DWB20-8A | |
Power | 7.5kw | ||
Hopping lifting speed | 18m/min | ||
Over size | Transporting position | 3050*2300*2680mm | |
Working position | 4461*3050*5225mm | ||
Weight | 4000kg | ||
Unloading height | 1500mm |
JS500 concrete mixer is dual horizontal shaft concrete mixer, which can work independently,
also can be composed the concrete mixing plant with other matched equipment., and it can
be applicable to large, medium and small precast concrete products factory and roads,
railways, bridges, water conservancy, civil construction project, and it can mix dry and hard
concrete, plastic concrete, light aggregate concrete and all kind of mortar, it is one kind of
high efficiency, widely used construction machinery. It owns reasonable design ,and its
mechanical accessories used industry standard parts, and its maintenance is much convenient.
