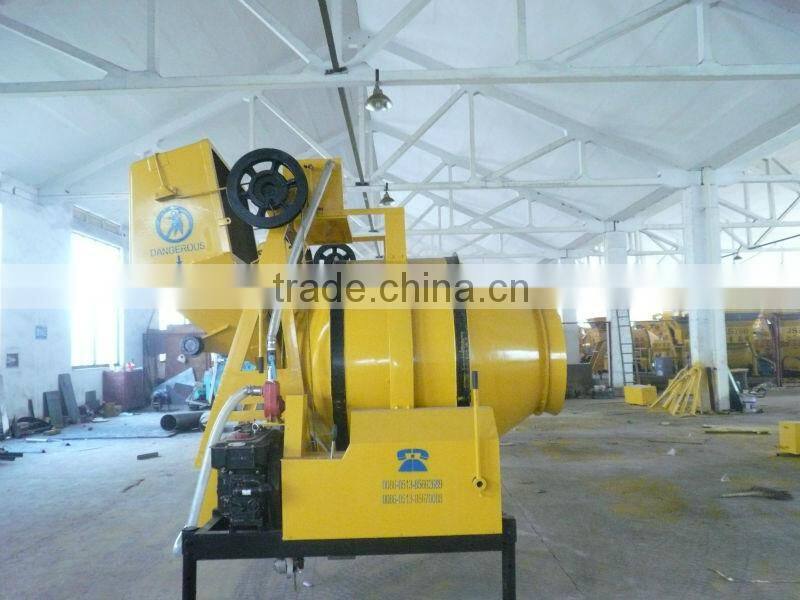

JZR350 diesel engine concrete mixer

FOB Price

US$ 1 - 4,500 / Set

1 Set(Min. Order)

Port China Qingdao Port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	HUALI	Model Number	JZR350
Motor Power	9.7KW	Mixing Power	11kw
Charging Capacity	560L	Reclaiming capacity	350L
Speed of Mixing Drum	16r/min	Water Supply Mode	auto
Working Cycle Period	2min	Discharge Way	Mechanical or electric operation
Outline Dimension	4050x2150x2950MM	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

JZR350 diesel engine concrete mixer
1. Diesel-powered
2. Normal working even out of electricity
3,ISO9001/BV

JZR350 diesel engine concrete mixer

1. Diesel self loading hopper Concrete Mixer was designed as the motive power of the mixer, which could stir the plastic concrete and semi-dry nature of concrete and produce 350L concrete per tank, the productivity is 10-14m³.

2.It is Suitable for construction sites, roads, bridge constructions and fabrication sites of small prefabricated concrete members.

3.The machine equips of JZR350 Diesel self loading hopper Concrete Mixer with advanced items, high productivity, cramped construction, low-power and etc. The concrete mixer’s host is the diesel engine which will not limited by the natural environment, to ensure the project.

JZR350 Diesel self loading hopper Concrete Mixer Main technical parameters:

Model	JZR350
Feed Capacity	560L
Discharge Capacity	350L
Productivity	10-14m³/h
Number of Operation Cycles	40/h
Standard Power	9.7kw/2200r/min
Starting Means	automatic
Mixing Drum Speed	17r/min
Water Tank Volume	65L
Maximum Aggregate Diameter	60mm
Time of Loading Skip Lifting	7s
Type of Tire	6.50-16
Dimensions(LengthWidthHeight)	295022502650mm
Weight	2100kg
